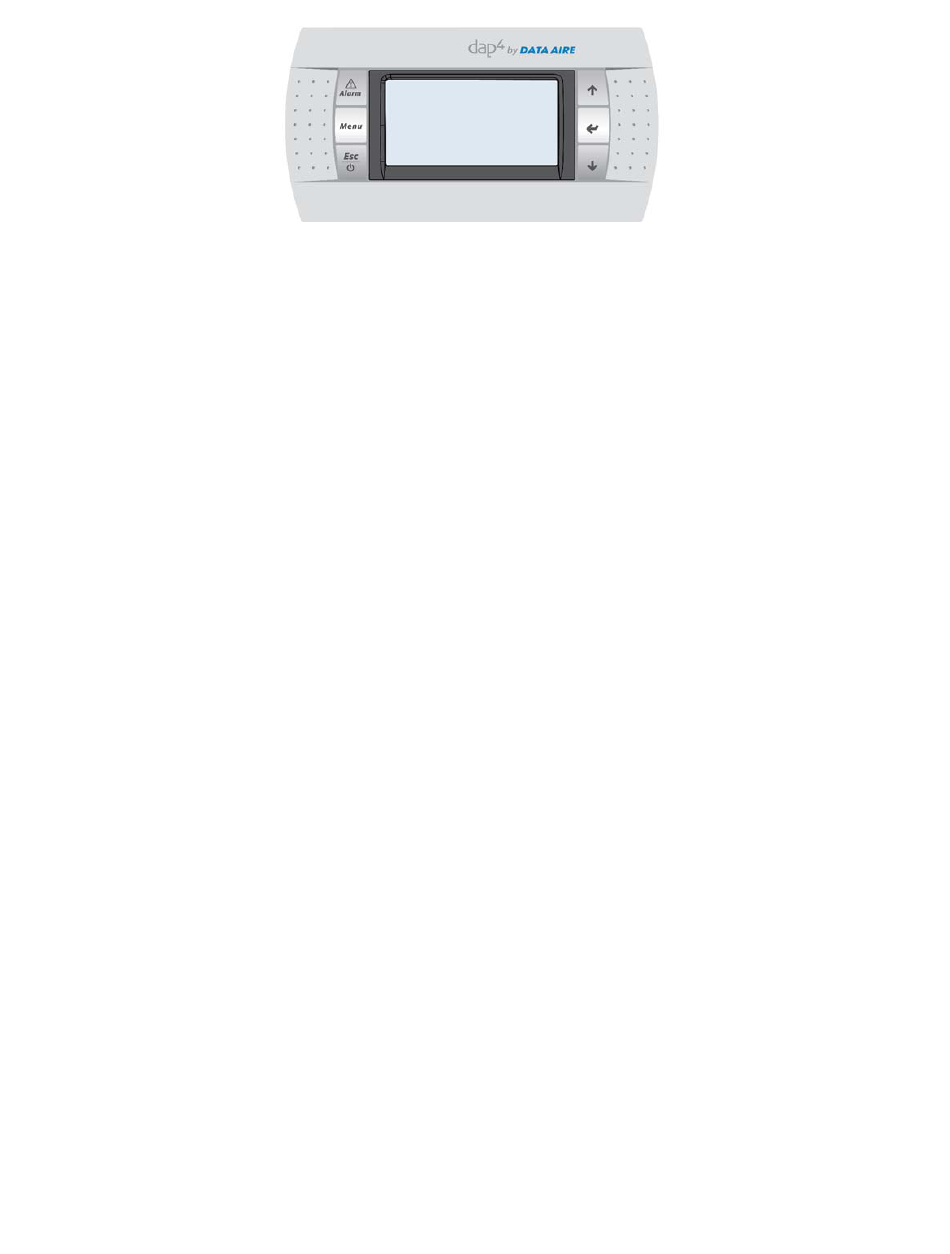

Press Enter key to get to "Trm 1", use UP or DOWN button to change it to a desired value (in this
case, it is 31). Press Enter key again until you reach "OK? Yes/No", select "Yes" and press Enter
to save the change and exit. At this point, the controller and the display should be communicating.
After addressing all individual units in a zone to the recommended values in table 1, you can hook
up the wiring via pLAN (see diagram on page 9).
12
P: 1
Adr
Priv/Shared
Trm1
31
PR
Trm2
None
--
Trm3
None
--
Ok? Yes
