- Page 1 C2LINX Ordering Guide...
-
Page 2: Table Of Contents
Patch ..........................5 b. Patch and Splice......................... 6 c. Pre-terminated Modules ...................... 7 Ordering Configurator ......................7 d. MPO ........................... 8 e. Splitters ..........................9 Order Configurator ......................9 Amphenol Network Solutions C2LINX All rights reserved. 08.19.19 v.8 509.926.6000 — amphenol-ns.com... -
Page 3: Overview
The C2LINX series also offers more functionality and more flexibility for hyperscale network environments. Each chassis—1RU, 2RU and 4RU—can house patch only, patch and splice, MPO, pre-term or splitter modules. Engineers can mix and match modules within a single chassis. -
Page 4: Section One: Chassis

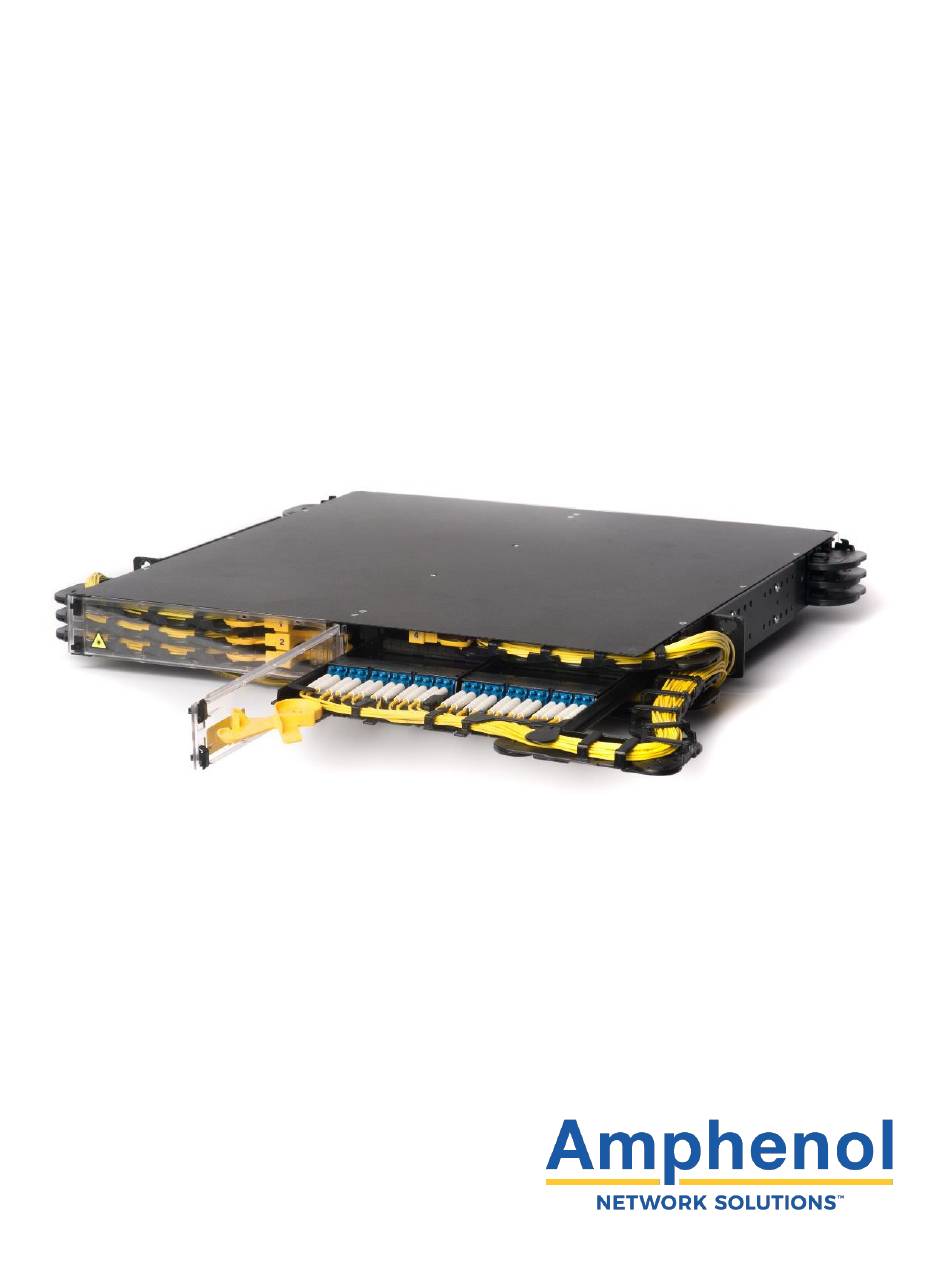

Section One: Chassis The Amphenol Network Solutions C2LINX chassis is a tray-based fiber distribution platform consisting of six trays per rack unit. Each tray holds two modules that can be mixed and matched for patch only, patch and splice, MPO, pre-term or splitters. Doors include high-capacity designation cards. -
Page 5: Section Two: Modules
SC/APC Green SM (OS2) HX-PC-06SCMM SC MM Beige OM3/OM4 HX-PC-04MMUD MPO Type A Aqua OM3/OM4 HX-PC-04MMUU MPO Type B Aqua OM3/OM4 HX-PC-04MSUD MPO Type A Black SM (OS2) Amphenol Network Solutions C2LINX All rights reserved. 08.19.19 v.8 509.926.6000 — amphenol-ns.com... -
Page 6: Patch And Splice
Aqua Quantity 1 12 fiber ribbon HX-SC-12LCM3-S Duplex LC APC Aqua Quantity 12 OM3 250 µm fibers HX-SC-12LCM3-R Duplex LC APC Aqua Quantity 1 OM3 12 fiber ribbon Amphenol Network Solutions C2LINX All rights reserved. 08.19.19 v.8 509.926.6000 — amphenol-ns.com... -
Page 7: Pre-Terminated Modules
Cabled modules are available in LC and SC, single-mode configurations. Individual adapter ports are labeled for easy identification. Two cable options are available with cabled modules, conventional IFC or 24-fiber microcable IFC cable. Ordering Configurator Amphenol Network Solutions C2LINX All rights reserved. 08.19.19 v.8 509.926.6000 — amphenol-ns.com... -
Page 8: Mpo
MPO The Amphenol Network Solutions MPO modules in the C2LINX system can increase fiber density and decrease your fiber footprint. With single-mode or multimode (OM3 or OM4) versions available, C2LINX can accommodate network planners making the decision on migration to 40/100 gigabit ethernet. The... -
Page 9: Splitters
Fiber optic splitters alone enable a signal on an optical fiber to be distributed among two or more fibers. Capitalize on this by housing them on the Amphenol Network Solutions C2LINX high-density optical distribution panel and a market-leading number of splitters that can be loaded on to 1RU, 2RU and 4RU panels.
