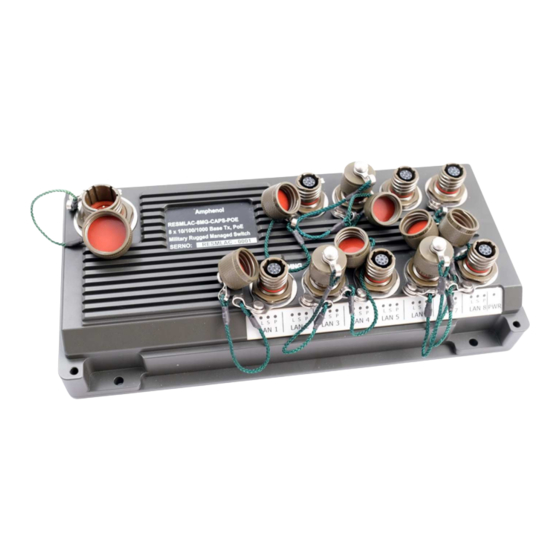

Amphenol RESMLAC-8MG-CAPS-POE Hardware User Manual

Ip67 rugged ethernet managed switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Contents
Section 1
General Information
Section 2
Hardware
Section 3
Installation
Section 4
Wiring
Section 5
Management
Section 6
Features Overview
Section 7
Service Information

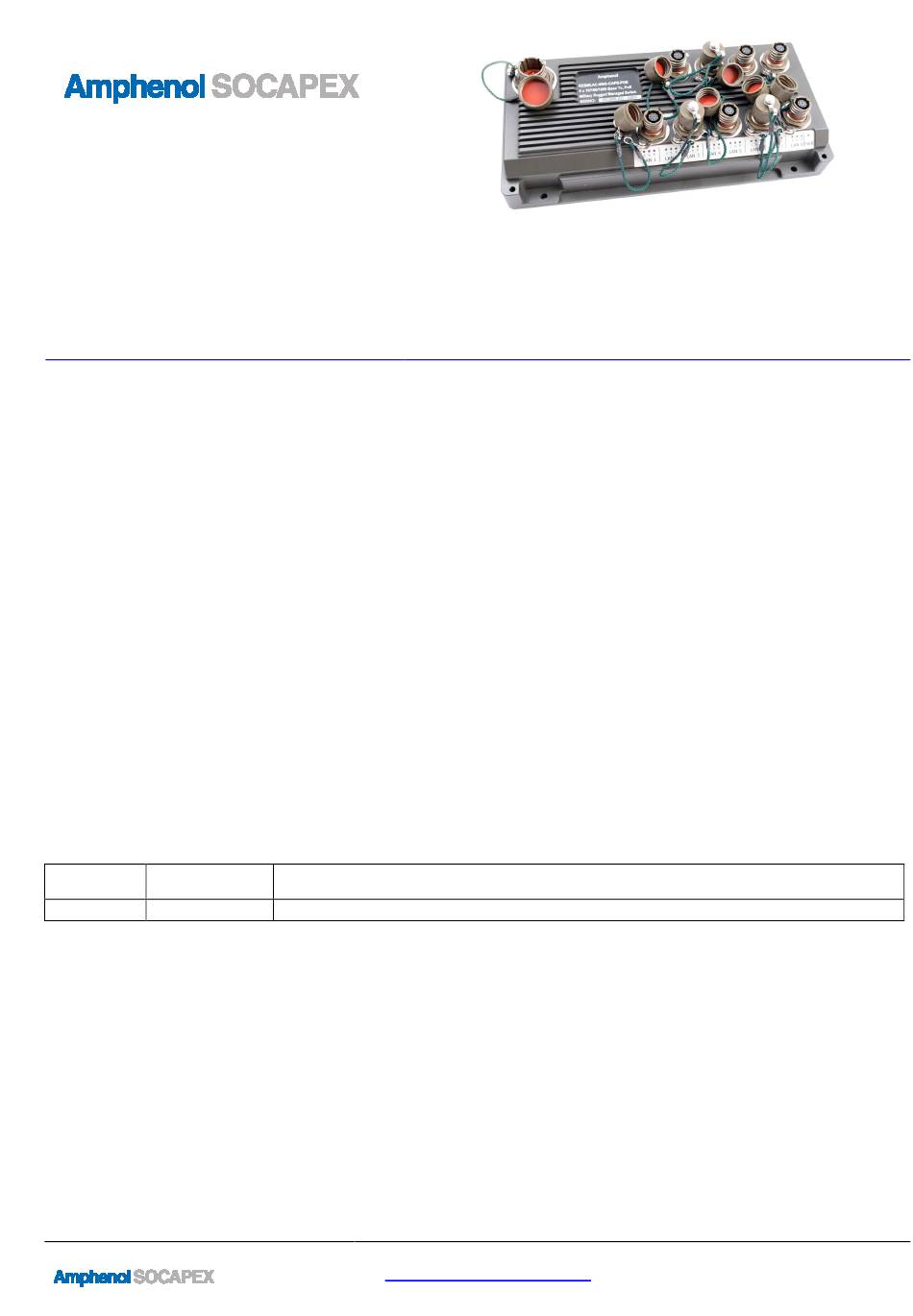

This manual applies to the following products:
•
RESMLAC 8MG CAPS POE
Revision
Date
1
June 2022
RESMLAC 8MG CAPS POE - UM
Rugged IP67 Managed Ethernet Switch, with 8 gigabit port supporting Power
Over Ethernet
Modifications
Initial document
www.amphenol-socapex.com
IP67 rugged Ethernet Managed Switch
RESMLAC-8MG-CAPS-POE
- Hardware User Manual -
Page 3
Page 4
Page 5
Page 7
Page 12
Page 13
Page 16
rev. 1
Page 1/16
Tel: +33(0)4.50.89.28.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RESMLAC-8MG-CAPS-POE and is the answer not in the manual?

Questions and answers

Related Manuals for Amphenol RESMLAC-8MG-CAPS-POE

Summary of Contents for Amphenol RESMLAC-8MG-CAPS-POE

  • Page 1 IP67 rugged Ethernet Managed Switch RESMLAC-8MG-CAPS-POE - Hardware User Manual - Contents Section 1 Page 3 General Information Section 2 Page 4 Hardware Section 3 Installation Page 5 Section 4 Page 7 Wiring Section 5 Page 12 Management Section 6...
  • Page 2 AMPHENOL SOCAPEX GENERAL CONDITIONS OF SALE (Effective as at 28th/09/2020) (EXTRACT) ARTICLE 11: GUARANTEE - LIABILITY 11.1. Products shall benefit from a legal guarantee of one year following the date of delivery in accordance with the terms and conditions indicated hereunder.

  • Page 3: General Information

    Section 1 General Information This manual will help you install and maintain the Amphenol Rugged Ethernet Managed Overview switches. These products are extremely easy to install and operate. Military applications can now take full advantage of 1000Mbps Gigabit Ethernet performance.

  • Page 4: Front Panel Display

    The Ethernet connections come out from rugged MIL-STD-38999 connectors. Front Panel The following describes the front panel, and LED indicators of the RESMLAC-8MG- Display CAPS-POE. LED Indicators RESMLAC-8MG-CAPS-POE unit has 25 LEDs indications, • 1 LED - Power Indications • 16 LEDs – Ethernet Indications.

  • Page 5: Selecting A Site

    Refer to the mechanical drawings below. Make sure to allow enough room to route your Ethernet and power cables. The RESMLAC-8MG-CAPS-POE weighs 2.2 Kg and is mounted via its four 5.2 mm holes for screws. The overall external dimensions of the RESMLAC-8MG-CAPS-POE are 269(L) x 133(W) x 75(H) millimeters.
  • Page 6 RESMLAC 8MG CAPS POE - UM rev. 1 Page 6/16 www.amphenol-socapex.com Tel: +33(0)4.50.89.28.00...
  • Page 7 DTL-38999 series III. We suggest using hereunder accessories. Another backshell can be used but it must ensure a correct sealing protection. Power plug Amphenol designation: TV06 RW 13 04S part number This plug is size 13. It is coming with 4 contacts size 16 (designed for 13A nominal current).
  • Page 8 The following table indicates the appropriate wiring connections for the MNG dedicated serial port. Signal Direction Type DB9 Pinout TX (PIN-7) Output RS-232 PIN 2 RX (PIN-8) Input RS-232 PIN 3 GND (PIN-6) Reference Ground PIN 5 RESMLAC 8MG CAPS POE - UM rev. 1 Page 8/16 www.amphenol-socapex.com Tel: +33(0)4.50.89.28.00...
  • Page 9 Tooling The plugs are using crimp contacts. We suggest using hereunder tooling. Crimping tools Amphenol No Military No Crimping tool 809 857 M22520/1-01 Positioner 809 858 M22520/1-04 Plastic insertion and Contact size Amphenol No Military no removal tools 809 855...
  • Page 10 You have also these tools that can help you for the assembly: Coupling Tool Coupling wrench for TV35 Backshells: 116.5 (Facom p/n) Clamping bands Micro band (precoiled): 895693 Hand banding Tool Banding tool for Micro band: 809985 RESMLAC 8MG CAPS POE - UM rev. 1 Page 10/16 www.amphenol-socapex.com Tel: +33(0)4.50.89.28.00...
  • Page 11 Average -50% lighter vs standard plug with TV35 backshell High EMI protection Braid clamping (metal Band-it) Available materials/plating: • Aluminum (olive drab cadmium / electroless nickel / black zinc nickel) • Bronze • Stainless steel RESMLAC 8MG CAPS POE - UM rev. 1 Page 11/16 www.amphenol-socapex.com Tel: +33(0)4.50.89.28.00...

  • Page 12: Web Management

    1 Stop Bits • No Parity • No Flow Control  Consult the dedicated Command Line Interface User Manual for getting all details regarding the commands description. RESMLAC 8MG CAPS POE - UM rev. 1 Page 12/16 www.amphenol-socapex.com Tel: +33(0)4.50.89.28.00...

  • Page 13: Features Overview

    Queuing. • Bridge support for Q-in-Q. • Link Aggregation 802.3AD. • WEB, CLI, Telnet Management. STANDARDS • MIL-STD-1275 • MIL-STD-461E • MIL-STD-704 • MIL-STD-810F GM • IP68 RESMLAC 8MG CAPS POE - UM rev. 1 Page 13/16 www.amphenol-socapex.com Tel: +33(0)4.50.89.28.00...
  • Page 14 512.5 immersion, Procedure 1, immersion 514.6 Vibration, Procedure 1 general vibration. Procedure 2, Loose Cargo transportation category 5: truck/trailer/tracked – loose cargo 516.6 Shock Procedure 6: Bench Handling RESMLAC 8MG CAPS POE - UM rev. 1 Page 14/16 www.amphenol-socapex.com Tel: +33(0)4.50.89.28.00...

  • Page 15: Operating Temp

    • No Moving Parts. Passive Cooling OPERATING TEMP • -45ºC to +85ºC (-49ºF to +185ºF) – Cold Start-Up STORAGE TEMP • -45ºC to +85ºC (-49ºF to +185ºF) RESMLAC 8MG CAPS POE - UM rev. 1 Page 15/16 www.amphenol-socapex.com Tel: +33(0)4.50.89.28.00...

  • Page 16: Service Information

    Section 7 Service Information We sincerely hope that you never experience a problem with any Amphenol product. If you Service do need service, call Amphenol at +33(0) 450 89 28 00 and ask for Applications Information Engineering. A trained specialist will help you to quickly determine the source of the problem.
