This manual applies to the following products:
•

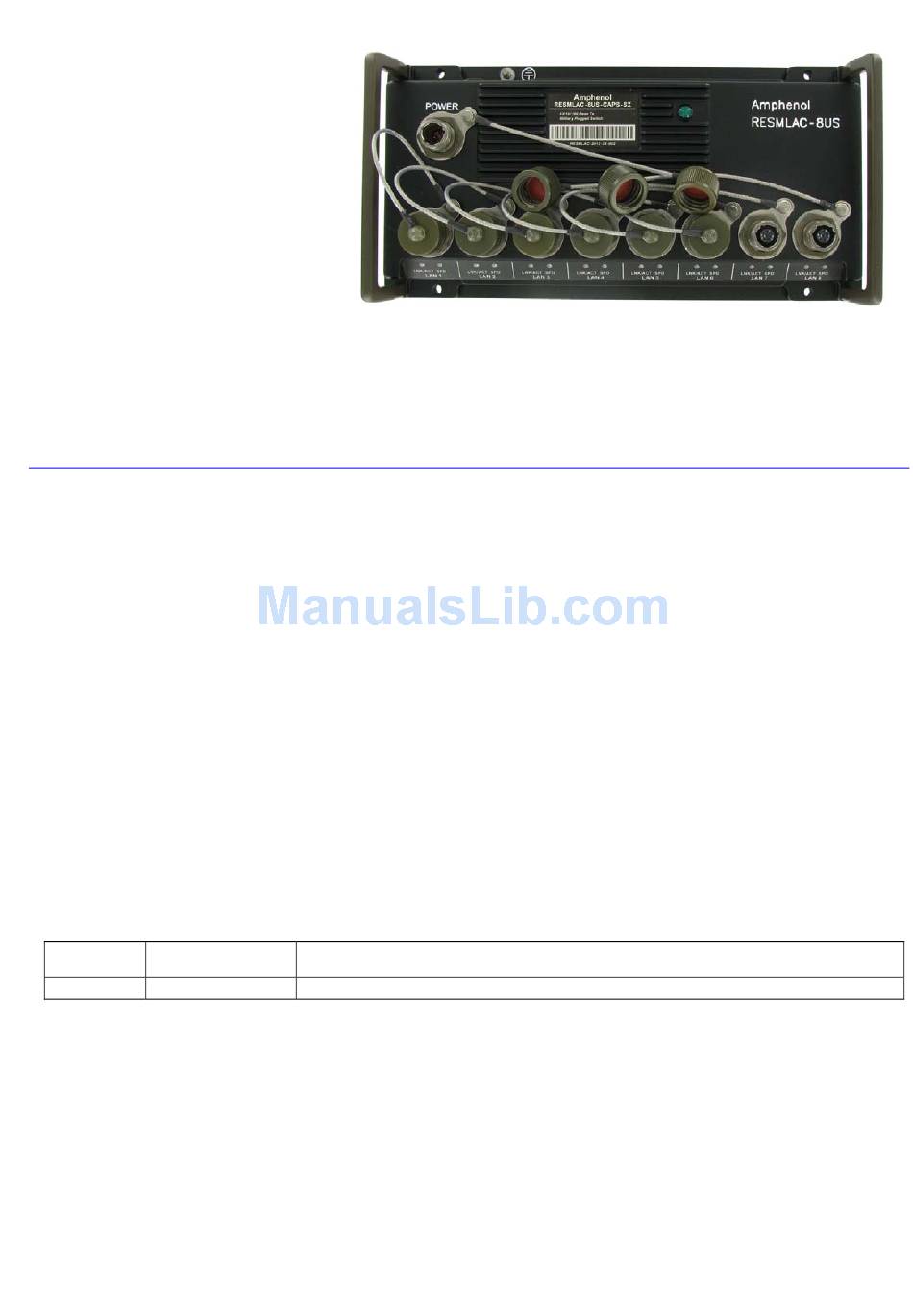

RESMLAC 8US CAPS SX
Revision
Date
1.0
January 2013
RESMLAC 8US CAPS SX - UM rev. 1.0
Amphenol
- 948, Promenade de l'Arve - B.P. 29 - 74311 THYEZ Cedex - France - +33(0)4.50.89.28.00 -
www.rjswitch.com
IP67 rugged Ethernet Unmanaged Switch
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6
Service Information
Rugged IP67 Unmanaged Ethernet Switch
Modifications
Initial document
RESMLAC 8US CAPS SX

- User Manual -

Page 3
Page 4
Page 5
Page 6
Page 10
Page 12
Page 1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RESMLAC 8US CAPS SX and is the answer not in the manual?

Questions and answers

Related Manuals for Amphenol RESMLAC 8US CAPS SX

Summary of Contents for Amphenol RESMLAC 8US CAPS SX

  • Page 1: Table Of Contents

    Revision Date Modifications January 2013 Initial document RESMLAC 8US CAPS SX - UM rev. 1.0 Page 1 of 12 Last Rev: 21-Jan-13 Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –...

  • Page 2: Ce Declaration Of Conformity

    (temperature limit, maximum voltage, etc.) as defined by the Vendor, or from incorrect choice of application. - Damages resulting from force majeure, such as this is defined under article 11 of Amphenol Socapex Sales Conditions hereunder, or resulting from any unpredictable event or natural disaster.

  • Page 3: General Information

    Section 1 General Information This manual will help you install and maintain the Amphenol Rugged Ethernet Unmanaged Overview switches. These products are extremely easy to install and operate because little or no user configuration is required. Once the Ethernet connections are made and the unit is powered up it will immediately begin to operate.

  • Page 4: Hardware

    Link / Activity (Off – there is no link, Steady Green – There is a device connected, Flashing Green – there is data transmission) • Speed (Orange for 100Mbps, Off for 10Mbps) RESMLAC 8US CAPS SX - UM rev. 1.0 Page 4 of 12 Last Rev: 21-Jan-13 Amphenol –...

  • Page 5: Installation

    Mounting mounting the box directly. Refer to the mechanical drawings below. Make sure to allow enough room to route your Ethernet and power cables. RESMLAC 8US CAPS SX - UM rev. 1.0 Page 5 of 12 Last Rev: 21-Jan-13 Amphenol –...

  • Page 6: Wiring

    Not connected LAN TX- 10/100 BaseT Transmit Data Negative 22 Gauge RESMLAC 8US CAPS SX - UM rev. 1.0 Page 6 of 12 Last Rev: 21-Jan-13 Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –...
  • Page 7 100 meters (328 feet) Note: Hubs and switches are different devices. Hubs simply broadcast all messages out all ports. Switches intelligently route messages only out the appropriate port. RESMLAC 8US CAPS SX - UM rev. 1.0 Page 7 of 12 Last Rev: 21-Jan-13 Amphenol –...
  • Page 8 Backshell designation: TVNSA 09 014 Heat shrink designation: 804221 TVNSA backshell dimensions RESMLAC 8US CAPS SX - UM rev. 1.0 Page 8 of 12 Last Rev: 21-Jan-13 Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –...
  • Page 9 (c) over the braid and the first ring (b). Screw the last ring at the rear of the backshell. 5. Install the heat-shrink molded piece. RESMLAC 8US CAPS SX - UM rev. 1.0 Page 9 of 12 Last Rev: 21-Jan-13 Amphenol –...

  • Page 10: Features Overview

    • MIL-STD-461E Electromagnetic compatibility • RE-02, RS-03 RESMLAC 8US CAPS SX - UM rev. 1.0 Page 10 of 12 Last Rev: 21-Jan-13 Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –...
  • Page 11 -35ºC to +75ºC (-31ºF to +167ºF) – Cold Start-Up STORAGE TEMP • -45ºC to +85ºC (-49ºF to +185ºF) RESMLAC 8US CAPS SX - UM rev. 1.0 Page 11 of 12 Last Rev: 21-Jan-13 Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 –...

  • Page 12: Maintenance And

    You will not need to change any components during all the life of the product. We sincerely hope that you never experience a problem with any Amphenol product. If you Service do need service, call Amphenol at +33(0) 450 89 28 00 and ask for Applications Information Engineering.
