Amphenol RJS-5ES Series User Manual

Unmanaged ethernet switch with 5/9 ports 10/100 mbps
Hide thumbs

Advertisement

Quick Links

Download this manual
Amphenol
RJ-Switch
Contents
Applicable standards and certifications:
Total Quality
This manual applies to the following products:
•

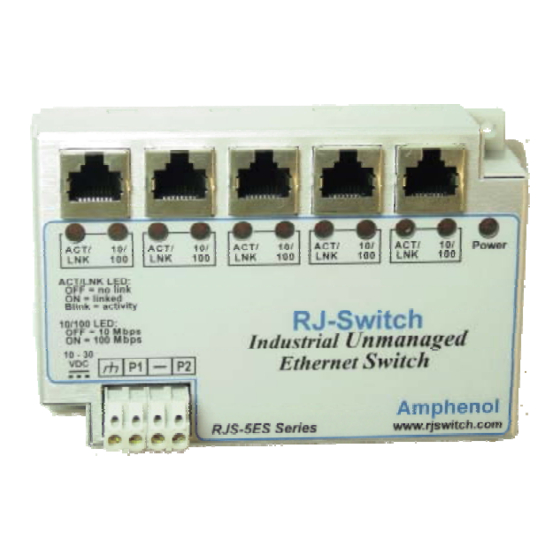

RJS-5ES Series - Unmanaged Ethernet switch with 5 ports 10/100 Mbps
•
RJS-9ES Series - Unmanaged Ethernet switch with 9 ports 10/100 Mbps
Unmanaged Switch User Manual
Amphenol
- 948, Promenade de l'Arve - B.P. 29 - 74311 THYEZ Cedex - France - +33(0)4.50.89.28.00 - www.rjswitch.com
Downloaded from
Elcodis.com
electronic components distributor
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6
Section 7
Section 8
Hazardous Locations
Standard Locations
LED Indicators
Installation
Power Wiring
Ethernet Wiring
European Directives
Page 1 of 13
Industrial Ethernet
Unmanaged Switch
- User Manual -
Page 3
Page 4
Page 5
Page 6
Page 7
Page 9
Page 11
Page 13
Marine & Offshore
US Emissions

Advertisement

loading
Need help?

Need help?

Do you have a question about the RJS-5ES Series and is the answer not in the manual?

Questions and answers

Related Manuals for Amphenol RJS-5ES Series

Summary of Contents for Amphenol RJS-5ES Series

  • Page 1: Table Of Contents

    Marine & Offshore US Emissions This manual applies to the following products: • RJS-5ES Series – Unmanaged Ethernet switch with 5 ports 10/100 Mbps • RJS-9ES Series – Unmanaged Ethernet switch with 9 ports 10/100 Mbps Unmanaged Switch User Manual...
  • Page 2 In particular, Amphenol disclaims any responsibility for damages, either direct or consequential, that result from the use of this equipment in any application.

  • Page 3: General Information

    Section 1 General Information This manual will help you install and maintain the Amphenol Industrial Ethernet Overview Unmanaged switches. These products are extremely easy to install and operate because little or no user configuration is required. Once the Ethernet connections are made and the unit is powered up it will immediately begin to operate.
  • Page 4 ON – A 100 Mbps (100BaseTx) connection is detected. Unmanaged Switch User Manual Page 4 of 13 Last Revised: 11-Jul-06 Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com Downloaded from Elcodis.com...
  • Page 5 [0.76 cm] 1.06" [2.7 cm] Unmanaged Switch User Manual Page 5 of 13 Last Revised: 11-Jul-06 Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com Downloaded from Elcodis.com electronic components distributor...
  • Page 6 Maximum 3.48 in-lbs (0.4 Nm) Unmanaged Switch User Manual Page 6 of 13 Last Revised: 11-Jul-06 Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com Downloaded from Elcodis.com electronic components distributor...
  • Page 7 Ethernet backbone. The other Ethernet ports are then connected to Ethernet devices such as PLCs, Ethernet I/O, or industrial computers. Electrical isolation is provided on the Ethernet ports for increased reliability. Please follow normal Ethernet wiring practices when installing these switches. Typical Amphenol Industrial Ethernet Switch Installation Refer to the...
  • Page 8 15 km, 40 km (long haul models) or even Guidelines more (contact Amphenol.) Each fiber optic port on the switch is comprised of a pair of SC or ST connectors, which are labeled with “RX” and “TX” on the switch. When making your fiber optic...

  • Page 9: Switching Features

    The maximum distance for multimode is 2 km. Singlemode uses a single wavelength and cable core diameter of around 10 microns which allows for a maximum distance of 15 km, 40 km or more (contact Amphenol for longer distances). 3.2 Gbps combined bandwidth With full duplex and 100BaseTX or 100BaseFX communications, each port can provide a full 200 Mbps of data throughput.
  • Page 10 Illegal frames as defined by IEEE 802.3 will be dropped. This includes short frames, long frames, CRC error frames and alignment error frames. IEEE 802.3 compliant The Amphenol Industrial Ethernet Switch strictly abides to the IEEE 802.3 standard for 10BaseT, 100BaseTX, and 100BaseFX Ethernet communications. Latency The typical latency of a message at 100 Mbps is 5 microseconds or faster.

  • Page 11: Technical Specifications

    Center wavelength 1300 nm TX output power Contact Amphenol for optical details. RX input sensitivity Maximum distance 20 km, 40 km (long haul models) or more (contact Amphenol) Half and full duplex Switch or jumper selectable Ethernet compliance 100BaseFX Eye safety IEC 60825-1, Class 1;...
  • Page 12 DIN rail or panel direct Unmanaged Switch User Manual Page 12 of 13 Last Revised: 11-Jul-06 Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com Downloaded from Elcodis.com electronic components distributor...

  • Page 13: Service Information

    Section 8 Service Information We sincerely hope that you never experience a problem with any Amphenol product. If you Service do need service, call Amphenol at +33(0) 450 89 28 00 and ask for Applications Information Engineering. A trained specialist will help you to quickly determine the source of the problem.

This manual is also suitable for:

Rjs-9es series
