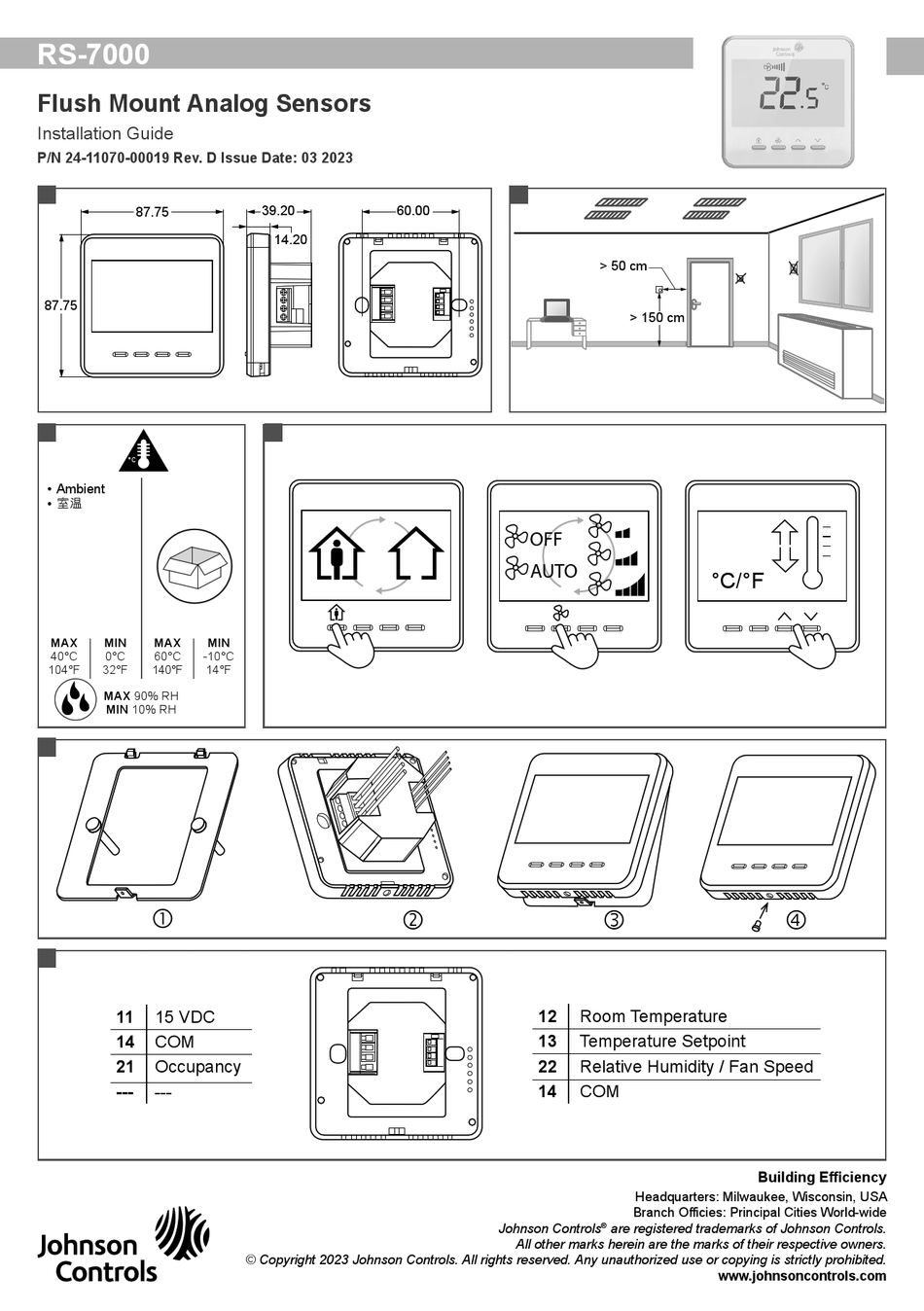

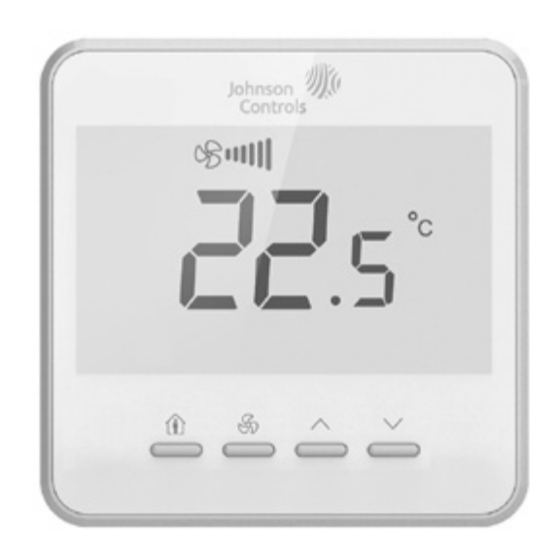

RS-7000
Flush Mount Analog Sensors
Installation Guide
P/N 24-11070-00019 Rev. D Issue Date: 03 2023
87.75
87.75
°C
• Ambient
• 室温
MAX
MIN
MAX
MIN
40°C
0°C
60°C
-10°C
104°F
32°F
140°F
14°F
MAX 90% RH
MIN 10% RH
11
15 VDC
14
COM
21
Occupancy
---
---
39.20
60.00
14.20
© Copyright 2023 Johnson Controls. All rights reserved. Any unauthorized use or copying is strictly prohibited.
> 50 cm
> 150 cm
OFF
AUTO
12
Room Temperature
13
Temperature Setpoint
22
Relative Humidity / Fan Speed
14
COM
Headquarters: Milwaukee, Wisconsin, USA
Branch Officies: Principal Cities World-wide
Johnson Controls
are registered trademarks of Johnson Controls.
®
All other marks herein are the marks of their respective owners.
°C/°F
Building Efficiency
www.johnsoncontrols.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Johnson Controls RS-7000
Summary of Contents for Johnson Controls RS-7000
- Page 1 Branch Officies: Principal Cities World-wide Johnson Controls are registered trademarks of Johnson Controls. ® All other marks herein are the marks of their respective owners. © Copyright 2023 Johnson Controls. All rights reserved. Any unauthorized use or copying is strictly prohibited. www.johnsoncontrols.com...
-
Page 2: Setup And Adjustment
IMPORTANT • Use this RS-7000 sensor only as an operating control. Where failure or malfunction of the RS-7000 sensor could lead to personal injury or property damage to the controlled equipment or other property, additional precautions must be designed into the system. - Page 3 English RS-7000 ALARM CODE DESCRIPTION Code Description Internal sensor warning High temperature warning. Room temperature > 55°C (> 131°F) Low temperature warning. Room temperature < 0°C (< 32°F) or internal sensor opened All warnings in running mode can cause the icon to display.
- Page 4 RS-7000 中国 安装指导 请在安装前仔细阅读该安装指导和安全警告 维修和替换 不要试图现场维修RS-7000系列传感器。如果RS-7000不能正常工作，请与附近江森自控办事处联系。当联系办事处更换产 品的时候，请说明外部标签或参数表上印有的类型/型号。 重要 • RS-7000系列传感器仅用作设备控制。当RS-7000系列传感器调节装置失灵或故障时可能会导致人员伤害，财产损失及其他配备损坏。请增加 预防措施，如常使用监控及报警系统、电压保护开关等，在安装系统中。来加强此温度调节装置的机能失常和失效时的保护。 • 不要把RS-7000装在结露、潮湿或有湿气处。湿气会损坏温控器。 • 不要把封入前盖的PCB板移出，从前盖中把封入的PCB板拆卸移出将不再享有质保服务。 • 使所有接线符合国家、地区和当地的规定。不要超过RS-7000系列传感器电流容量。 • 使用前请移除LCD塑料罩。 警告 在进行电器接线时确保电源断开。在带电时连接各部件可能引起电击，从而导致人员受伤甚至死亡。 • 电击危险和财物损失：在传感器通电前把未使用的线头保护好，使之绝缘。任何一个未使用的线头未被绝缘和保护可能导致财产损坏，电击和 人员伤亡甚至死亡。 参数设定 按住 键5秒，即可进入参数设置页面，按 键循环选择需要设定的参数，按 和 键调节参数 编号 参数项 默认值 功能含义 语言 00：中文； 01：English 温度单位 °C 温度设定方式...
- Page 5 RS-7000 COMPLIANCE Johnson Controls declares that these products are in compliance with the essential requirements and other relevant provisions of the EMC Directive and Low Voltage Directive. UKCA Mark to EN 61326-1 产品中有害物质的名称及含量 有害物质 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚...
