EN0H-1201GE23 R0219

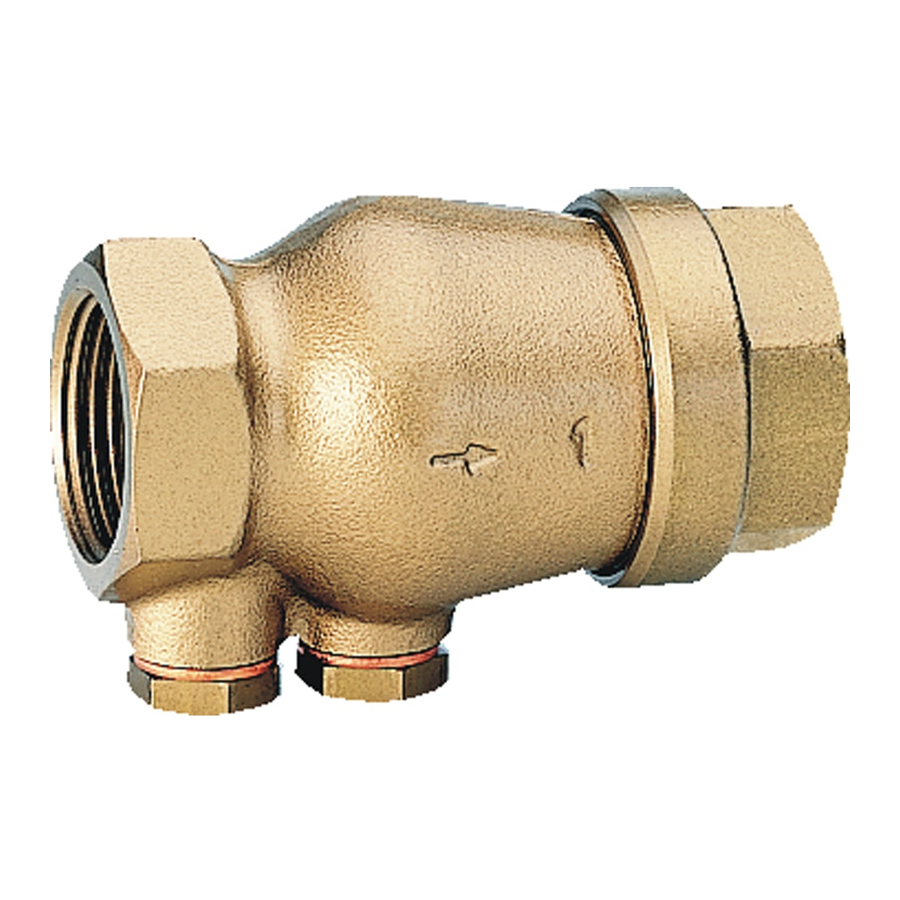

RV280
Controllable anti-pollution check valve EA type
with internal thread
APPLICATION
Check valves of this type are for use as an independent
means of preventing reverse water flow.
They can also be used for industrial, commercial and similar
systems where back pressure, backflow and back syphonage
must be prevented.
The classicfications of appliances to meet these
requirements are specified in EN 1717.
SPECIAL FEATURES
•
Universal application
•
Suitable for installation in any position
•
Creates no shock pressure loadings
•
Low pressure loss
•
All materials are UBA conform
Product Specification Sheet • EN0H-1201GE23 R0219 • Subject to change
Backflow Preventers
TECHNICAL DATA
Media
Medium:
Connections/Sizes
Connection size:
Pressure values
Max. operating pressure:
Opening pressure:
Operating temperatures
Max. operating temperature
medium:
Specifications
Liquid category:
Drinking water
1
/
" - 2"
2
16 bar
ca. 0.05 bar
65 °C accord. DIN EN 13959
(short term up to 90 °C)
2 (no hazardous materials)
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Honeywell Home RV 280
Summary of Contents for Honeywell Home RV 280
- Page 1 EN0H-1201GE23 R0219 Backflow Preventers RV280 Controllable anti-pollution check valve EA type with internal thread APPLICATION Check valves of this type are for use as an independent means of preventing reverse water flow. They can also be used for industrial, commercial and similar systems where back pressure, backflow and back syphonage must be prevented.
- Page 2 RV280 - Controllable anti-pollution check valve EA type CONSTRUCTION Overview Components Materials Union connector with Brass internal thread Housing with test and drain Brass plugs ( " device with test plugs only) Test and drain plugs Brass Not depicted components: Check valve insert High-grade synthetic material...
- Page 3 RV280 - Controllable anti-pollution check valve EA type TECHNICAL CHARACTERISTICS kvs-Values Connection sizes: "* " 1" " " 2" -value (m /h): 17.0 28.0 38.0 60.0 Note: * Test plug only Pressure drop characteristics Fig. 1 Pressure drop within the valve in dependency of the flow rate and the used connection size DIMENSIONS Overview Parameter...
- Page 4 Authorised Representative Ademco 1 GmbH Hardhofweg EN0H-1201GE23 R0219 74821 MOSBACH Subject to change GERMANY © 2019 Resideo Technologies, Inc. Phone: +49 6261 810 The Honeywell Home trademark is used under Fax: +49 6261 81309 license from Honeywell International Inc.
