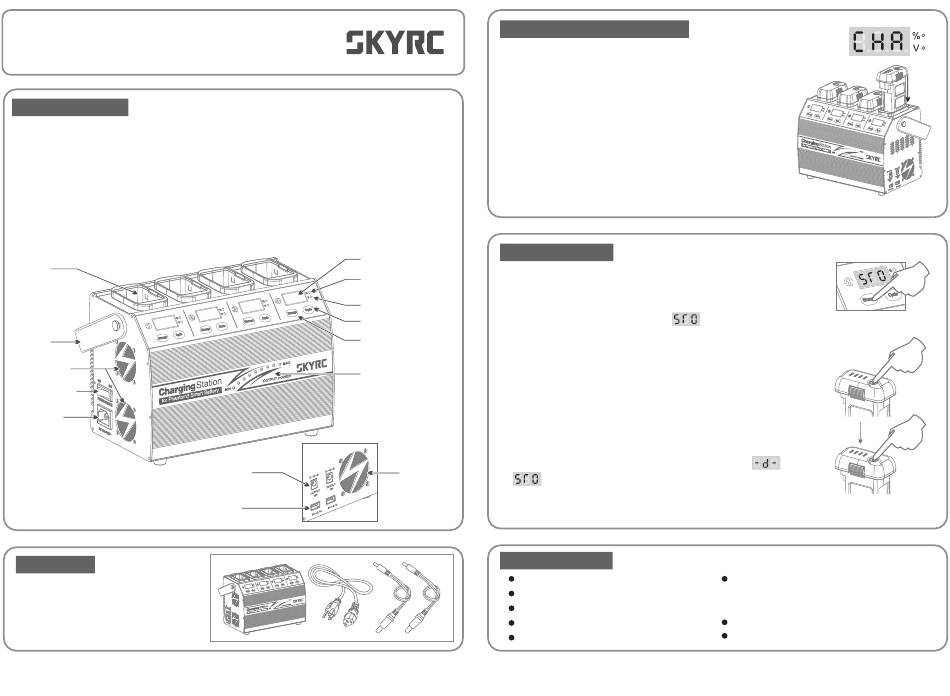

INSTRUCTION
MANUAL
CHARGING STATION 4P3

INSTRODUCTION

The Charging Station 4P3 is a four channels charger designed and built exclusively for Phantom3
Smart Battery. This charger is capable of charging, storage and deep cycling four DJI smart batteries
simultaneously. Two smart devices can be charged via USB port and two remote controller can be
charged at same time.
This unit is simple to use, but the operation of a sophisticated automatic charger such as Charging
Station 4P3 does require some knowledge on the part of the user. These operating instructions are
designed to ensure that you quickly become familiar with its functions. It is therefore important that
you read right through the Operating Instructions, Warning and Safety Notes before you attempt to
use your new charger for the first time. We hope you have many years of pleasure and success with
your new battery charger.
Battery
slot
Carring
Handle
Cooling Fan
Power Switch
AC Socket
100-240V
Charging Port
for Remote Controller
USB Power
for Smart Device
CONTENTS
1. Charging Station 4P3
2. Power Cord
3. Remote Controller Charging Cable x 2
SK-100118
LED Display
Battery Level
Percentage
Battery Voltage
Cycle Button
Storage Button
Output Power
Indicator
Cooling Fan
1

CHARGING YOUR BATTERIES

1. Connect the Power Cord to the AC socket(100-240V).
2. Turn ON the Power Switch. The LED display show "CHA" and the
charger is in CHARGE MODE.
3. Insert the battery into the battery slot. The 4P3 will communicate
with the battery and send the battery into CHARGE MODE
automatically.(If the battery level is above 95%, turn on the battery
before charging.)
The battery's green LED will be blinking. and the LED display will
show charging percentage of battery. When the battery is fully
charged. The battery's green LED's will turn OFF and the charger
station will beep 5 times. Remove the battery and turn off
Charging Station 4P3.

STORAGE MODE

When the battery is idle for more than ten days. It is better to discharge
the battery to 65% of total power in order to prevent swelling. If the
battery level is below 65%(15.6V), you need recharge it to 65%.
1. Push storage button, the LED will show
2. Turn ON the battery before you put it in STORAGE MODE.
Press the Power Button once, then press again and hold for 2 seconds
to turn on. The Power LED will turn red and the battery level Indicators
will display the current battery level.
3. Insert the battery into the battery slot. The battery's green LED will be
blinking. and the LED of charger will display voltage of the battery.
4. If the battery level is more than 65%, Charging Station 4P3 will
discharge the battery to 65%. If the battery level is below 65%, this unit
will charge the battery to 65% for storage automatically.
5. When the battery level is reached 65%, the LED will display
repeatly and beeps 5 times. Remove the battery and turn off Charging
Station 4P3.

SPECIFICATIONS

Input Voltage: AC 100-240V
Charge Power: 100W x 4
Charge Current: 6.0A
USB Output:
5V/2.1A x2
DC Output: 19V/2A x2
Insert the Battery Into the Battery Slot
Push Storage Button
.
Press the Power Button once
and
Press Again and Hold
for 2 Seconds to Turn On
Working Mode: Charge Mode
Storage Mode
Cycle Mode
Size: 255x142x180mm
Weight: 3.22kg
