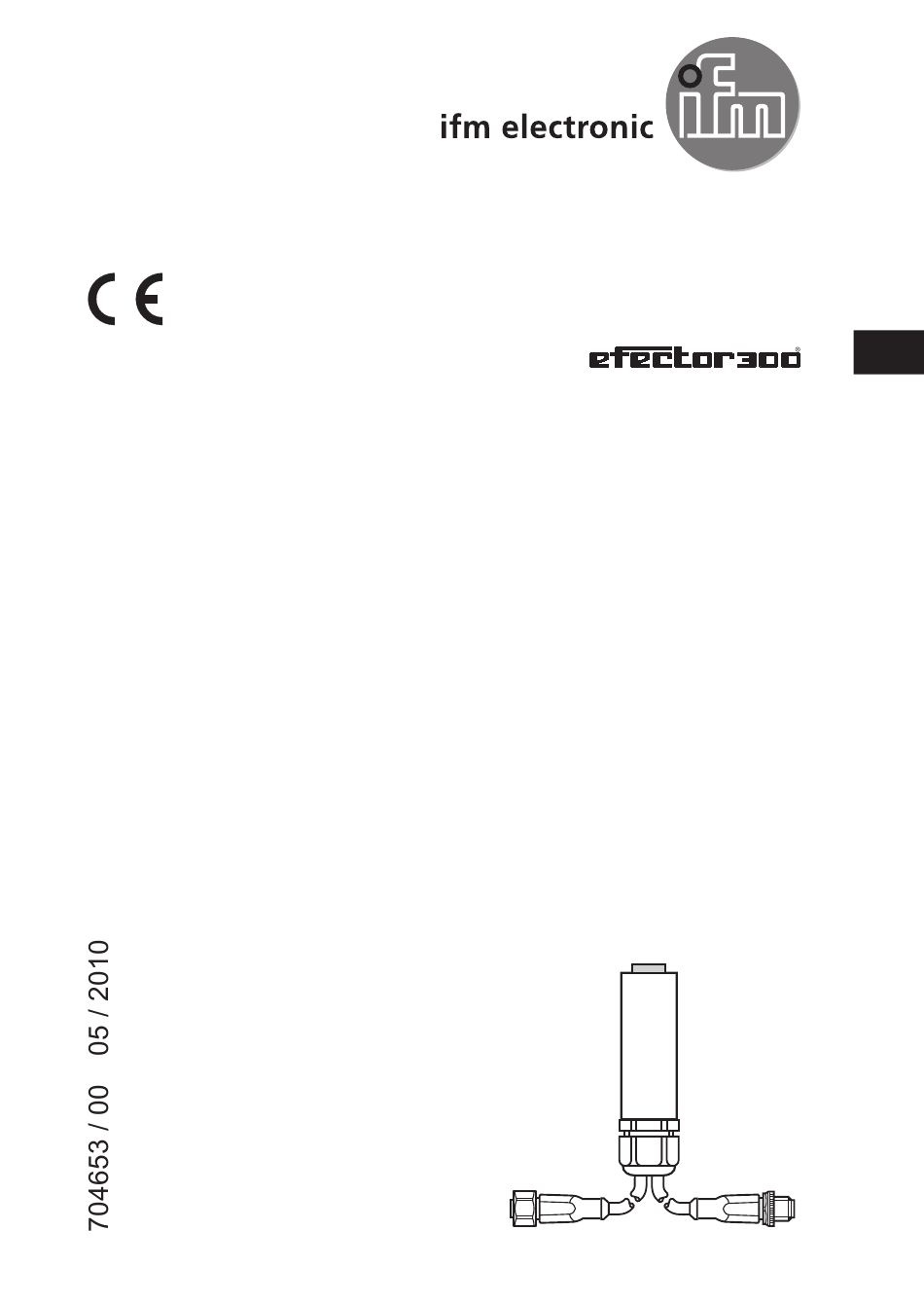

- Page 1 Operating instructions SC teach button E40211 E40212...
- Page 2 1 Functions and features E40211 Teach button for setting the SC flow sensors with PNP output E40212 Teach button for setting the SC flow sensors with normally open relay output 2 Electrical connection 1: Connector (socket) - connection to SC flow sensor 2: Connector (plug) - connection to supply voltage n.c.
- Page 3 3 Switch point setting ► Press button briefly and release it. ► After 1 - 2 s press it again and keep it pressed for the time indicated. > The flow sensor gives its output signals to the teach button. They are displayed by the illuminated pushbutton: Output closed (OUT = 1) button lights...
