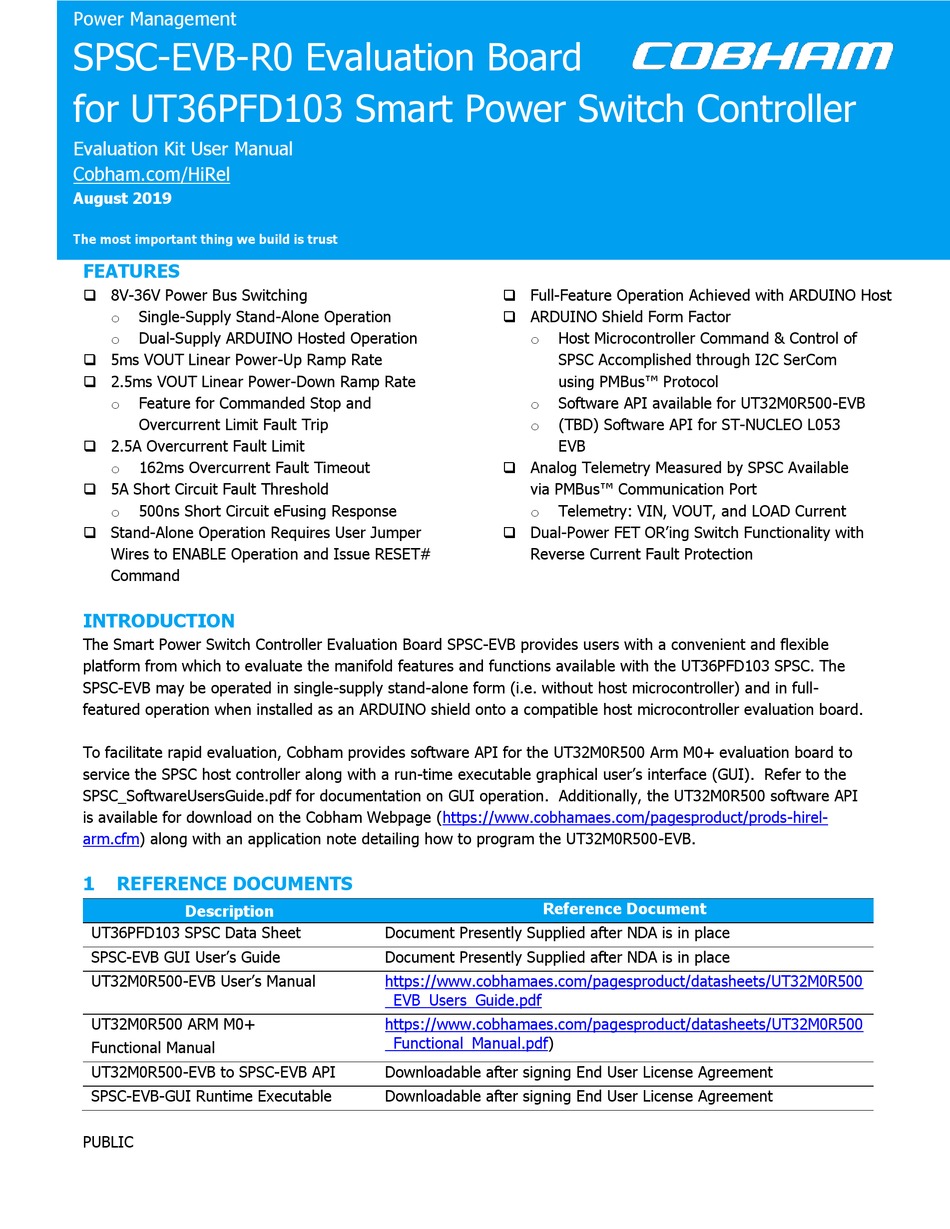

SPSC-EVB-R0 Evaluation Board
for UT36PFD103 Smart Power Switch Controller
Evaluation Kit User Manual
Cobham.com/HiRel
August 2019
The most important thing we build is trust

FEATURES

 8V-36V Power Bus Switching
Single-Supply Stand-Alone Operation
o
Dual-Supply ARDUINO Hosted Operation
o
 5ms VOUT Linear Power-Up Ramp Rate
 2.5ms VOUT Linear Power-Down Ramp Rate
Feature for Commanded Stop and
o
Overcurrent Limit Fault Trip
 2.5A Overcurrent Fault Limit
162ms Overcurrent Fault Timeout
o
 5A Short Circuit Fault Threshold
500ns Short Circuit eFusing Response
o
 Stand-Alone Operation Requires User Jumper
Wires to ENABLE Operation and Issue RESET#
Command

INTRODUCTION

The Smart Power Switch Controller Evaluation Board SPSC-EVB provides users with a convenient and flexible
platform from which to evaluate the manifold features and functions available with the UT36PFD103 SPSC. The
SPSC-EVB may be operated in single-supply stand-alone form (i.e. without host microcontroller) and in full-
featured operation when installed as an ARDUINO shield onto a compatible host microcontroller evaluation board.
To facilitate rapid evaluation, Cobham provides software API for the UT32M0R500 Arm M0+ evaluation board to
service the SPSC host controller along with a run-time executable graphical user's interface (GUI). Refer to the
SPSC_SoftwareUsersGuide.pdf for documentation on GUI operation. Additionally, the UT32M0R500 software API
is available for download on the Cobham Webpage
arm.cfm) along with an application note detailing how to program the UT32M0R500-EVB.
1

REFERENCE DOCUMENTS

Description
UT36PFD103 SPSC Data Sheet
SPSC-EVB GUI User's Guide
UT32M0R500-EVB User's Manual
UT32M0R500 ARM M0+
Functional Manual
UT32M0R500-EVB to SPSC-EVB API
SPSC-EVB-GUI Runtime Executable
PUBLIC
 Full-Feature Operation Achieved with ARDUINO Host
 ARDUINO Shield Form Factor
Host Microcontroller Command & Control of
o
SPSC Accomplished through I2C SerCom
using PMBus™ Protocol
Software API available for UT32M0R500-EVB
o
(TBD) Software API for ST-NUCLEO L053
o
EVB
 Analog Telemetry Measured by SPSC Available
via PMBus™ Communication Port
Telemetry: VIN, VOUT, and LOAD Current
o
 Dual-Power FET OR'ing Switch Functionality with
Reverse Current Fault Protection
(https://www.cobhamaes.com/pagesproduct/prods-hirel-
Reference Document
Document Presently Supplied after NDA is in place
Document Presently Supplied after NDA is in place
https://www.cobhamaes.com/pagesproduct/datasheets/UT32M0R500
_EVB_Users_Guide.pdf
https://www.cobhamaes.com/pagesproduct/datasheets/UT32M0R500
_Functional_Manual.pdf)
Downloadable after signing End User License Agreement
Downloadable after signing End User License Agreement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPSC-EVB-R0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for COBHAM SPSC-EVB-R0

  • Page 1: Features

    ARDUINO shield onto a compatible host microcontroller evaluation board. To facilitate rapid evaluation, Cobham provides software API for the UT32M0R500 Arm M0+ evaluation board to service the SPSC host controller along with a run-time executable graphical user’s interface (GUI). Refer to the SPSC_SoftwareUsersGuide.pdf for documentation on GUI operation.
  • Page 2: Evaluation Kit Contents

    EVALUATION KIT CONTENTS  SPSC-EVB-R0 UT36PFD103 Evaluation Board (1)  ARDUINO Male-Male Jumper Wire (3)  SPSC-EVB-R0-GUI (1 – Download from Cobham Website)  UT32M0R500-SPSC-API (1 –Download from Cobham Website)  SPSC-EVB-R0 Evaluation Kit User Guide (1) Figure 1a. Stand-Alone SPSC-EVB-R0 Figure 1b.
  • Page 3: Table Of Contents

    Test Equipment List ..........................5 Evaluation setup diagram .......................... 5 Configuring the SPSC-EVB-R0 for hosted operation..................6 Configuring the SPSC-EVB-R0 for STAND-ALONE operation ............... 17 EVB Electrical Schematics ........................20 EVB Components Bill of Materials (BoM) ....................22 EVB Layout Information ........................24 Revision History ..........................
  • Page 4: Evaluation Board (Evb) Configuration

    ARDUINO SHIELD PMBus / SMBus CONNECTOR 4x ADDRESS SWITCHES I_SENSE RESISTOR UT36PFD103 SPSC SCHOTTKY CLAMP VOUT RETURN VIN RETURN BANANA JACK BANANA JACK VOUT BANANA JACK BANANA JACK SHORT CIRCUIT CHOKE INDUCTOR Figure 2. SPSC-EVB-R0 on UT32M0R500-EVB with Labels PUBLIC...
  • Page 5: Test Equipment List

    TEST EQUIPMENT LIST Description Function/Purpose Item # SPSC-EVB-R0 UT36PFD103 Evaluation Board Differential Output 3.125 Gbps Pattern Generator Pulse Pattern Generator for Input (PRBS/XAUI/etc.) Stimulus Differential input oscilloscope with input analog Oscilloscope for Output Display bandwidth (BW) ≥8GHz DC Power Supply for XPS Evaluation 3 Channel DC Power Supply Board (1.2V, 1.5V, 2.5V)
  • Page 6: Configuring The Spsc-Evb-R0 For Hosted Operation

    A to Mini-B cable, single channel power supply (36V and 2.5A-5A capable output), banana patch cords and output load. As seen in Figure 4, Cobham implemented a simple load box to mount the UT32M0R500-EVB and SPSC- EVB-R0 and switch resistive loads of 10-ohms, 100-ohms, and a fast-blow fused short to ground.
  • Page 7 2V scale to the host microcontroller via PMBus™ commands. These redundant analog telemetry points are provided to allow the user to perform the analog telemetry digitization with the microcontroller if desired. The scale factors provided by the SPSC-EVB-R0 are intended to keep the maximum analog values to remain <1.6V full-scale.
  • Page 8 Piano Switches Figure 7. SMBus Address, Parity, and Configuration Switches Step 3) There are two switch banks on the SPSC-EVB-R0 to configure SMBus addressing, selecting HOSTED or STAND-ALONE operation and facilitating certain operational modes when using the evaluation board in stand-alone mode.
  • Page 9 Table 2. SP3T Switch SW1 Settings SIGNAL SWITCH DESCRIPTION STATES ADDR0 SW1.1 SMBus Address 0 ADDR1 SW1.2 SMBus Address 1 ADDR2 SW1.3 SMBus Address 2 — = LOW ADDR3 SW1.4 SMBus Address 3 ʘ = MID ADDR4 SW1.5 SMBus Address 4 + = HIGH SW1.6 No Connect...
  • Page 10 Table 4. SMBus Address and Parity Decoding Decimal Ternary Pins Parity Decimal Ternary Pins Parity Value (LSB->MSB) Switch Value (LSB->MSB) Switch LLMHM LHMHM (Logic 0) DOWN DOWN LLMHH LHMHH (Logic 1) LLHLL DOWN LHHMM LLHLM LHHMH DOWN LLHLH DOWN LHHHL DOWN LLHML LHHHM...
  • Page 11 Figure 9. SPSC-EVB-R0 Status and Configuration LEDs Once the SPSC-EVB-R0 is installed on the ARDUINO host and power is applied to the host, the status and configuration LEDs will illuminate according to SPSC-EVB-R0 settings, as shown in Figure 9, above.
  • Page 12 The PGOOD LED illuminates when the output voltage (VOUT) is less than 25V indicating output voltage is NOT good. This is an arbitrary threshold that was designed in the SPSC-EVB-R0. PGOOD is derived from a 15.3 : 1 voltage divider on VOUT to the SPSC FEEDBACK input who’s HIGH/LOW threshold is 1.6V with hysteresis.
  • Page 13 Figure 12. Connect Power Supply to VIN Banana Jacks on SPSC-EVB-R0 Step 5) Using common banana patch cords, connect your power supply positive (RED) and return (BLACK) terminals to the VIN positive (RED) and return (BLACK) banana jacks on the SPSC-EVB-R0. PUBLIC...
  • Page 14 Step 6) Connect the SPSC-EVB-R0 VOUT port to your desired load. Figure 13 depicts Cobham’s demonstration platform (not included in SPSC-EVB-R0 evaluation kit) with VOUT (RED) and return (BLACK) patched from the SPSC-EVB-R0 VOUT port into the load fixture where it is then switched into 1-to-3 loads via toggle switches.
  • Page 15 Step 7) As long as the ARDUINO Host is already powered-up, you can apply power to the VIN port that was connected in Step 5, above. Powering the SPSC-EVB-R0 solely through the VIN port results in the SPSC self-regulating the 3V3 domain shared by the SPSC-EVB-R0 and ARDUINO host EVB which may have...
  • Page 16 Step 8) Once software is installed on the host PC and the ARDUINO host PCB is programmed with the evaluation API, you are ready to operate the SPSC-EVB-R0-GUI and begin evaluating the hardware. Refer to the SPSC-EVB GUI User’s Guide for an explanation of the various operational features supported and how to connect the GUI to the target hardware.
  • Page 17: Configuring The Spsc-Evb-R0 For Stand-Alone Operation

    CONFIGURING THE SPSC-EVB-R0 FOR STAND-ALONE OPERATION The SPSC-EVB-R0 may be used without an ARDUINO host, which is termed STAND-ALONE operation. The following steps walkthrough setting up and operating the evaluation board in STAND-ALONE mode. Step 1) Enable/Disable the OR’ing functionality; identical to step 1 for the ARDUINO hosted configuration.
  • Page 18 Figure 18. Jumper Wires Required to Invoke Certain Operating Conditions on SPSC-EVB-R0 Step 4) In order to operate the SPSC-EVB-R0, the EN_B input must be LOW. This is most easily accomplished by running a jumper wire from J4.D6 to a nearby GND point. As shown in Figure 18, an orange jumper wire is run from J4.D6 (EN_B) to J1.GND.
  • Page 19 25:1 voltage divider targeting a 1.6V (comparator reference) + 100mV (hysteresis) threshold. **NOTE the SPSC-EVB-R0 has a side effect of the UVLO voltage divider driving the input voltage above 3V3+V_ESD when VIN is >17V. As VIN increases, current flows into the UVLO pin through its ESD protection diode and back out through the OVLO pin creating an effective reduction in the OVLO trip threshold.
  • Page 20: Evb Electrical Schematics

    EVB ELECTRICAL SCHEMATICS Figure 19: SPSC-EVB-R0 Schematic 1/2 PUBLIC...
  • Page 21 Figure 20: SPSC-EVB-R0 Schematic 2/2 PUBLIC...
  • Page 22: Evb Components Bill Of Materials (Bom)

    Digi-Key P1.24KDCCT-ND Panasonic ERA-2AEB1241X 1 R32 25 0.1% RES 25 OHM 0.1% 1/20W 0402 SMT0402 Digi-Key 764-1328-1-ND Vishay FC0402E25R0BTT0 1 R33 34K 0.1% RES 34K OHM 0.1% 1/10W 0603 SMT0603 Digi-Key P34KDBCT-ND Panasonic ERA-3AEB3402V Figure 21. SPSC-EVB-R0 BOM 1/2 PUBLIC...
  • Page 23 SHIPPR CIR BD 10-1/2X8-1/2X2-1/2 Digi-Key 37060-ND Desco 37060 1 R33 340K 0.1% RES SMD 340K OHM 0.1% 1/16W 0603 Digikey A124740CT-ND RN73C1J340KBTD 1 R35? 100K 0.1% RES SMD 100K OHMS 0.1% 1/10W 0603 Digikey P100KDBCT-ND Panasonic ERA-3AEB104V Figure 22. SPSC-EVB-R0 BOM 2/2 PUBLIC...
  • Page 24: Evb Layout Information

    10 EVB LAYOUT INFORMATION Figure 23. SPSC-EVB FAB Drawing PUBLIC...
  • Page 25 Figure 24. SPSC-EVB-R0 Assembly Top View PUBLIC...
  • Page 26 Figure 25. SPSC-EVB-R0 Assembly Bottom View PUBLIC...
  • Page 27 Figure 26. SPSC-EVB-R0 Layer 1 (Top) Etch PUBLIC...
  • Page 28 Figure 27. SPSC-EVB-R0 Layer 2 Etch PUBLIC...
  • Page 29 Figure 28. SPSC-EVB-R0 Layer 3 Etch PUBLIC...
  • Page 30 Figure 29. SPSC-EVB-R0 Layer 4 (Bottom) Etch PUBLIC...
  • Page 31: Revision History
