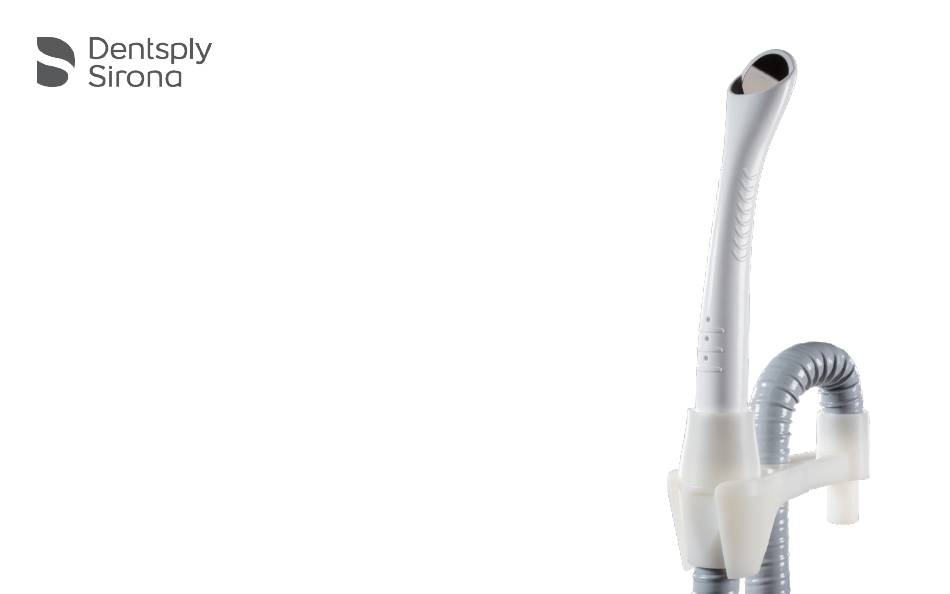

Purevac
HVE System
®
HVE Mirror Tips and Hose Adapter Starter Kit
Directions for Use
Please read carefully and completely before operating unit.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Purevac HVE System and is the answer not in the manual?

Questions and answers

Summary of Contents for Dentsply Sirona Purevac HVE System

  • Page 1 Purevac HVE System ® HVE Mirror Tips and Hose Adapter Starter Kit Directions for Use Please read carefully and completely before operating unit.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Overview Intended Use Contraindications Warnings Precautions Adverse Reactions Device Description Unpacking the System Preparation for Use Infection Control Procedures 9-12 Specifications Disposal of Unit...
  • Page 3: Overview

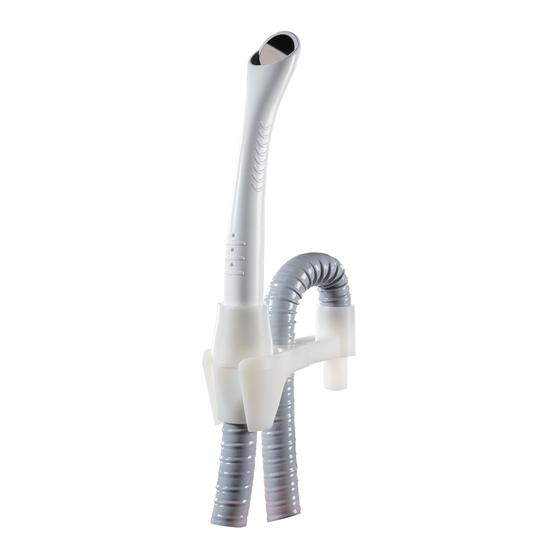

    OVERVIEW The Dentsply Sirona HVE Mirror Tip and Hose Adapter Starter Kit offers a new and unique dental solution for high volume evacuation (HVE). The kit includes three (3) HVE Mirror Tips with an ergonomic unibody design and built-in mirror that allows for evacuation, illumination, retraction, and visualization with one hand.
  • Page 4: Precautions

    • It is the responsibility of the Healthcare Professional to determine the appropriate uses of this product and to understand: • the health of each patient • the dental procedures being undertaken • applicable industry and governmental agency recommendations for infection control in dental healthcare settings •...
  • Page 5: Device Description

    Adapter Connection UNPACKING THE SYSTEM As you unpack your Dentsply Sirona HVE Mirror Tip and HVE Hose Adapter Starter Kit, verify that the following components are included: (1) HVE Hose Adapter, (3) HVE Mirror Tips, (1) Directions for Use *Before patient use, HVE Mirror Tips must be cleaned and sterilized. Go to “Infection Control Procedures” for...
  • Page 6: Preparation For Use

    PREPARATION FOR USE Method Figure Remove the HVE Hose Adapter (Figure 1) and three pack of HVE Mirror Tips from packaging. Figure 1 Locate the existing HVE valve (Figure 2) on your dental chair. HVE Valve Low Speed Valve Figure 2...
  • Page 7 Method Figure Take the HVE Hose Adapter and position for insertion into the HVE valve (Figure 3). Fully and securely insert the HVE Hose Adapter into the HVE valve (Figure 4). Ensure the HVE Hose Adapter sits securely in the existing HVE valve (Figure 5). Figure 3 Figure 4 Figure 5...
  • Page 8 Method Figure Take one HVE Mirror Tip (Figure 6) and insert directly into the HVE Hose Adapter (Figure 7). Ensure the HVE Mirror Tip is secure in the HVE Hose Adapter. *Before patient use, HVE Mirror Tips must be cleaned and sterilized. Figure 6 Figure 7 Go to “Infection Control Procedures”...
  • Page 9: Infection Control Procedures

    • Prepare enzymatic instrument cleaning solution per the as scratching can occur. manufacturer’s recommendation in a soaking container or ultrasonic bath. Dentsply Sirona recommends • Place the HVE Mirror Tip in the solution for the time specified by the the use of Resurge ®...
  • Page 10 • Place bagged HVE Mirror Tip into a steam sterilizer, per the sterilizer and sterilized. manufacturer’s instructions. • The following minimum sterilization cycles may be used: Dentsply Sirona recommends • Gravity steam sterilization – full cycle: 135 °C for 10 minutes. the use of Assure Plus Self- ®...
  • Page 11 • If soil is observed in the seam area of the HVE Hose Adapter, manufacturer. disassemble the unit by unscrewing the top plastic component Dentsply Sirona recommends (Figure 8), carefully removing the metal ring (Figure 9) and wiping the use of VoloWipes ®...
  • Page 12 • The HVE Hose Adapter must with evacuation cleaner following the manufacturer’s directions be cleaned with evacuation for use. cleaner at the end of each day to maintain its optimal function. Dentsply Sirona recommends the use of Purevac® SC Evacuation Cleaner.
  • Page 13: Specifications

    SPECIFICATIONS Weight HVE Mirror Tip: 15.5 g or 0.55 oz. HVE Hose Adapter: < 109.7 g or < 3.87 oz. Dimensions HVE Hose Adapter Length: 1.524 m or 60 in. HVE Hose Adapter Swivel Connection I.D.: 15.875 mm or 0.625 in. HVE Hose Adapter Valve Connection O.D.: 11.252 mm or 0.443 in.
  • Page 14 PAGE LEFT INTENTIONALLY BLANK...
  • Page 15 PAGE LEFT INTENTIONALLY BLANK...
  • Page 16 Manufactured by: DENTSPLY DeTrey GmbH Dentsply Sirona De-Trey Strasse 1 1301 Smile Way 78467 Konstanz York, PA 17404 USA Germany dentsplysirona.com dentsply.eu/ifu See webpage for instructions for use 11081 Rev. 1 (0618)
