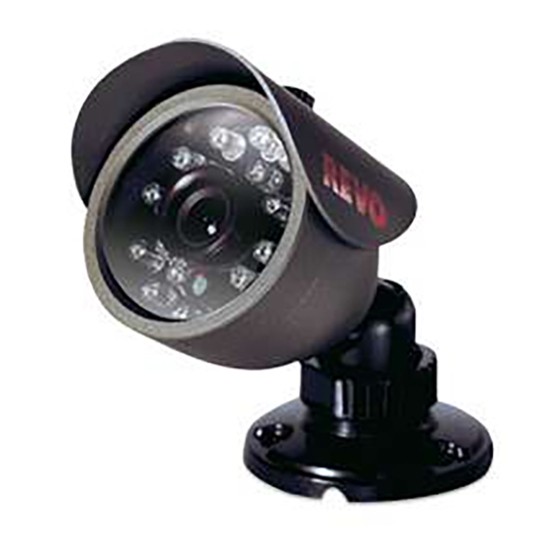

Indoor / Outdoor IR Night Vision Camera Instruction Manual VER.:1.0, NO.: R040557A... - Page 3 3. Feature Built-in high quality CCD camera and high performance infrared illuminator module. Total pixels of sensor: NTSC= 270K pixels. High sensitivity, low smea r , excellent anti-blooming, and hi gh S/N ratio. Supports functions: Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto White Balance (AWB), Back Light Compensation (BLC), and Flickerless mode (FL) .
- Page 4 5. Installation & Operation 1. Install Preparation Drill hole in wall if wire needs to go through the wall. 2. Install Camera Use the 3 screws provided to attach the camera and bracket to the ceiling, surface or wall.
- Page 5 3. Adjust 3-Axis Bracket Adjust the bracket while checking the view angle from the monitor. Loosen the bracket lock knob by turning counterclockwise, after adjusting the 3-Axis bracke t (X-Y-Z Axis) to ge t the desi red viewing angle, tighten the lock knob by turning it clockwise. 4.
- Page 6 RCBS20-1...
