What's in the box?
The package includes the following items:
ET-2242U Module x 1
Related Information
ET-2200 Series Product Page:
Documentation & Firmware:
NS-205/MDR-20-24 Product Page (optional):
Technical support:

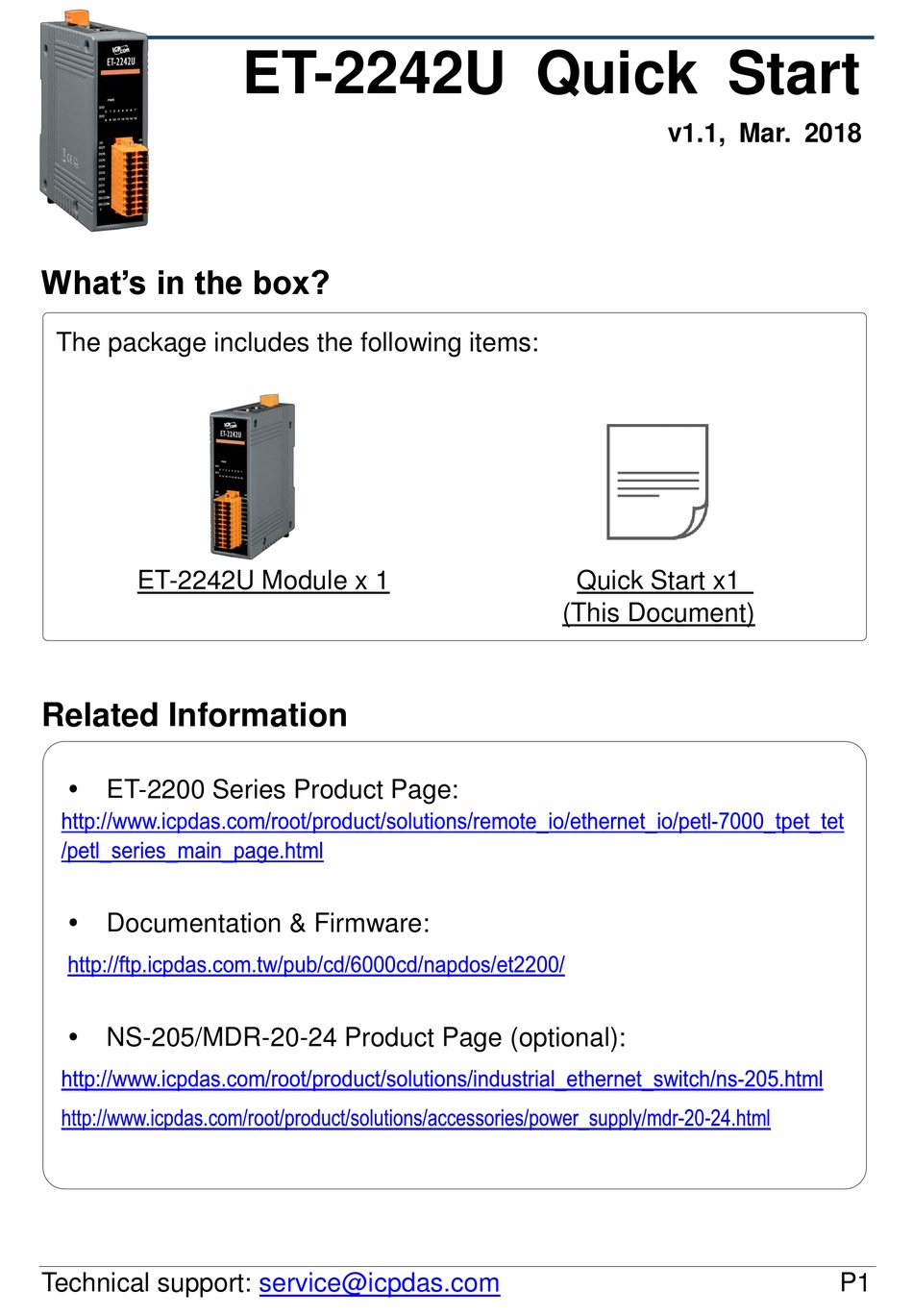

ET-2242U Quick Start
service@icpdas.com
v1.1, Mar. 2018
Quick Start x1
(This Document)
P1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ICPDAS ET-2242U
Summary of Contents for ICPDAS ET-2242U
- Page 1 ET-2242U Quick Start v1.1, Mar. 2018 What’s in the box? The package includes the following items: ET-2242U Module x 1 Quick Start x1 (This Document) Related Information ET-2200 Series Product Page: Documentation & Firmware: NS-205/MDR-20-24 Product Page (optional): Technical support: service@icpdas.com...
- Page 2 Disable or well configure your Windows firewall and Anti-Virus firewall first, else the “Search Servers” on Chapter 5 may not work. (Please contact with your system Administrator) Connect both the ET-2242U and your PC to the same sub network or the same Ethernet switch. Supply power (+10~+30 V ) to the ET-2242U.
- Page 3 Pin Assignments & Wiring Note Pin Assignments: Wire Connections: Readback as 0 Readback as 1 Digital Output OFF State ON State Load Load Sink DO.COM DO.COM Load Load Source DO.COM DO.COM Technical support: service@icpdas.com...
- Page 4 A tip for removing the wire from the connector 1) Use output LED to connect the DO.COM pin (Pin04) to the DO0 pin (Pin06). 2) Connect the External Power +24V to the DO0 pin (Pin06). 3) Connect the External Power GND to the DO.COM (Pin04). Technical support: service@icpdas.com...
-
Page 5: Modbus Address
“R”: Read, “W”: Write, “F”: Settings are recorded in flash by default, “E”: After writing DO[60] register, the data will be stored in flash. Note For detail “DI/DO Modbus Address” information, refer to Section 6.3 Modbus Register Table of user’s manual (http://ftp.icpdas.com/pub/cd/6000cd/napdos/et2200/document/). Technical support: service@icpdas.com... -
Page 6: Configuring Network Settings
Configuring Network Settings 1) Run the eSearch Utility. The eSearch Utility is located at: http://ftp.icpdas.com/pub/cd/6000cd/napdos/software/esearch/ 2) Click the “Search Servers” to search your ET-2242U. 3) Double-click your ET-2242U to configure the settings Factory Default Settings of ET-2242U: IP Address 192.168.255.1... - Page 7 ET-2242U is working well with new configuration. 2) Click the name of ET-2242U to select it. 3) Click the “Web” button to log in to the web configuration pages. (Or enter the URL address of the ET-2242U in the address bar of the browser.) ...
- Page 8 Digital Input and Output functionality. 6) In the “Digital I/O” section, click the “DO0” button to ON (Red). 7) Verify that the output LED status for “high”. High Technical support: service@icpdas.com...
