Sensor sockets are configured as it is shown in figure below.
Sensor
Socket
A
B
C
D, E and F
Figure: Sensor sockets configuration for Ambient Control model

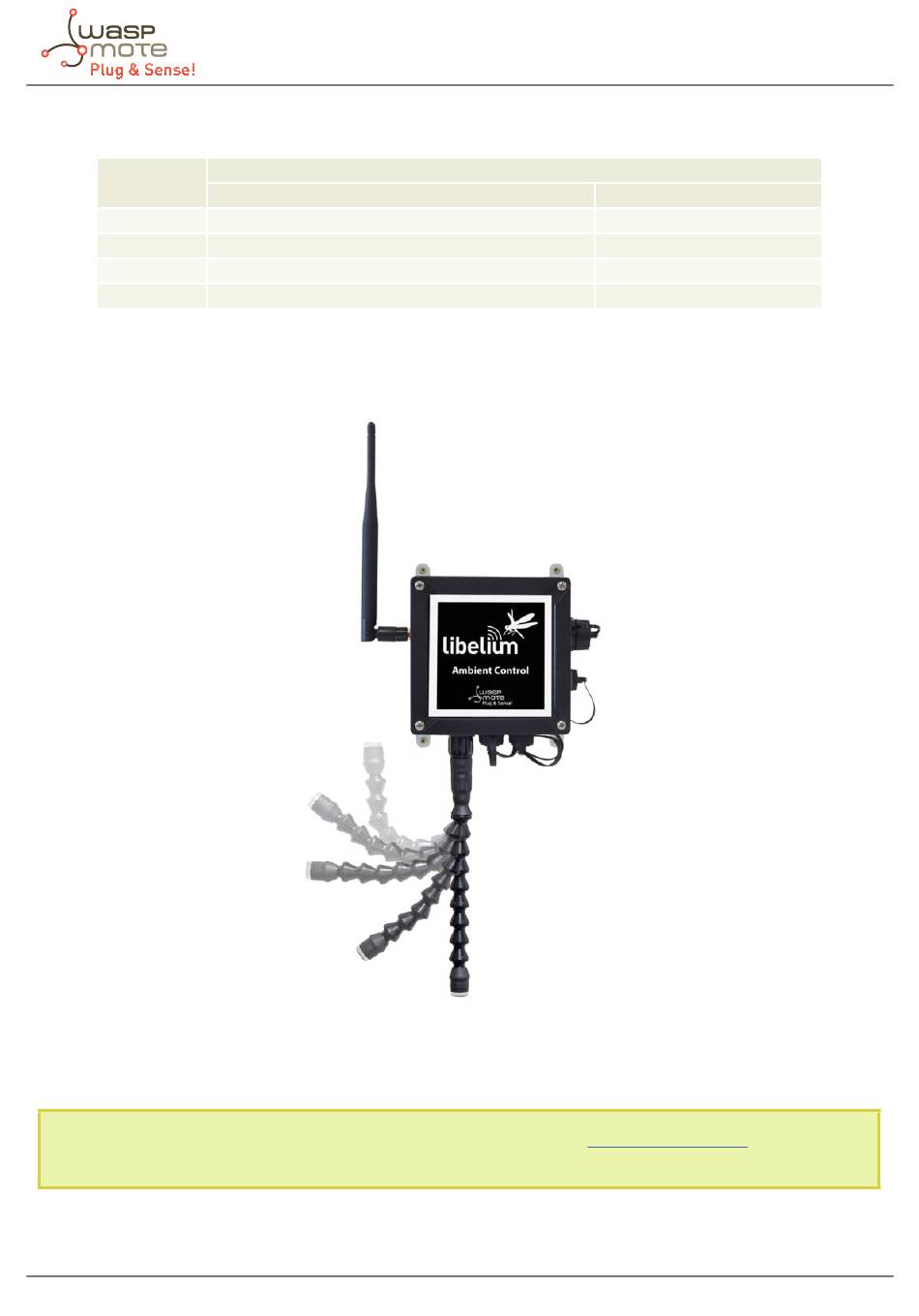

As we see in the figure below, thanks to the directional probe, the Luminosity (Luxes accuracy) sensor probe may
be placed in different positions. The sensor can be focused directly to the light source we want to measure.
Figure: Configurations of the Luminosity sensor probe (luxes accuracy)
Note: For more technical information about each sensor probe go to the
website.
Sensor probes allowed for each sensor socket
Parameter
Temperature + Humidity + Pressure
Luminosity (LDR)
Luminosity (Luxes accuracy)
Not used
Reference
9370-P
9205-P
9325-P
-
Development section
