Sensors & Software LMX100 User Manual page 37

Tools

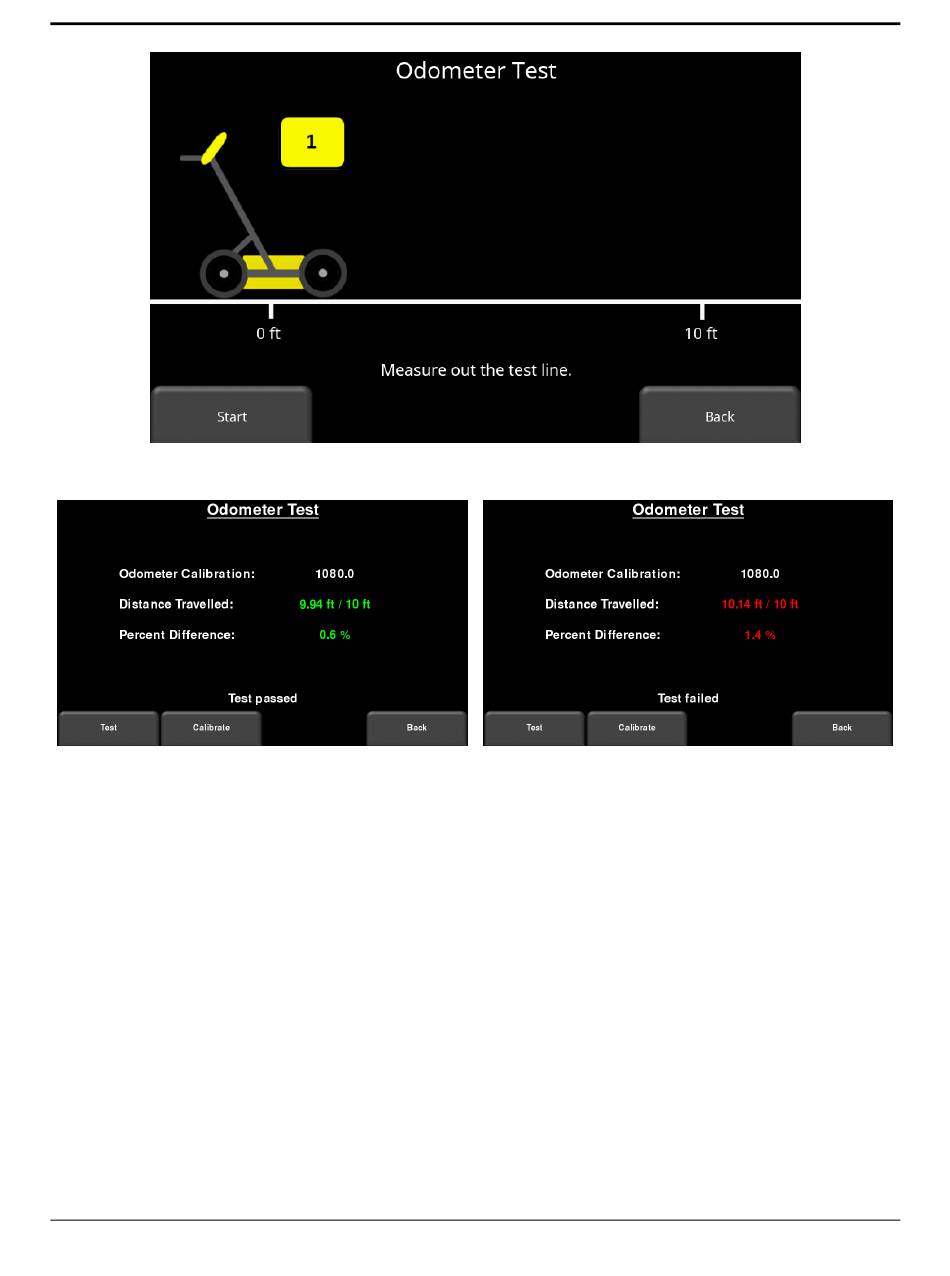

Figure 4-17: Doing an odometer test
Figure 4-18: Odometer Test passed on left, failed on the right
•
Odometer Calibration - This option actually calibrates the odometer (Figure 4-19).
Choose a set distance from the screen, or select Custom. Then press Start and move
the system that exact distance, using a measuring tape or other known distance
indicator. Press Finish when you have travelled that distance
25
