Auto-Hide Buttons - If this is set to ON, then in Line Scan mode, the buttons at the
bottom of the screen disappear shortly after data collection begins, effectively enlarging
the area for data display. The buttons will re-appear after a couple of seconds whenever
the sensor stops moving forward, is in back-up mode or any button is pressed on the
keypad.

4.1.10 Reset to Defaults

Selecting this option at the bottom of the screen will reset all settings & preferences back to the
default settings (Figure 4-9). Pressing this will ask you to confirm the Reset to Defaults. If Yes
is selected, the next screen will ask if you would like to remove all saved wireless networks and
emails addresses. Note that any saved screenshots will still remain on the system.

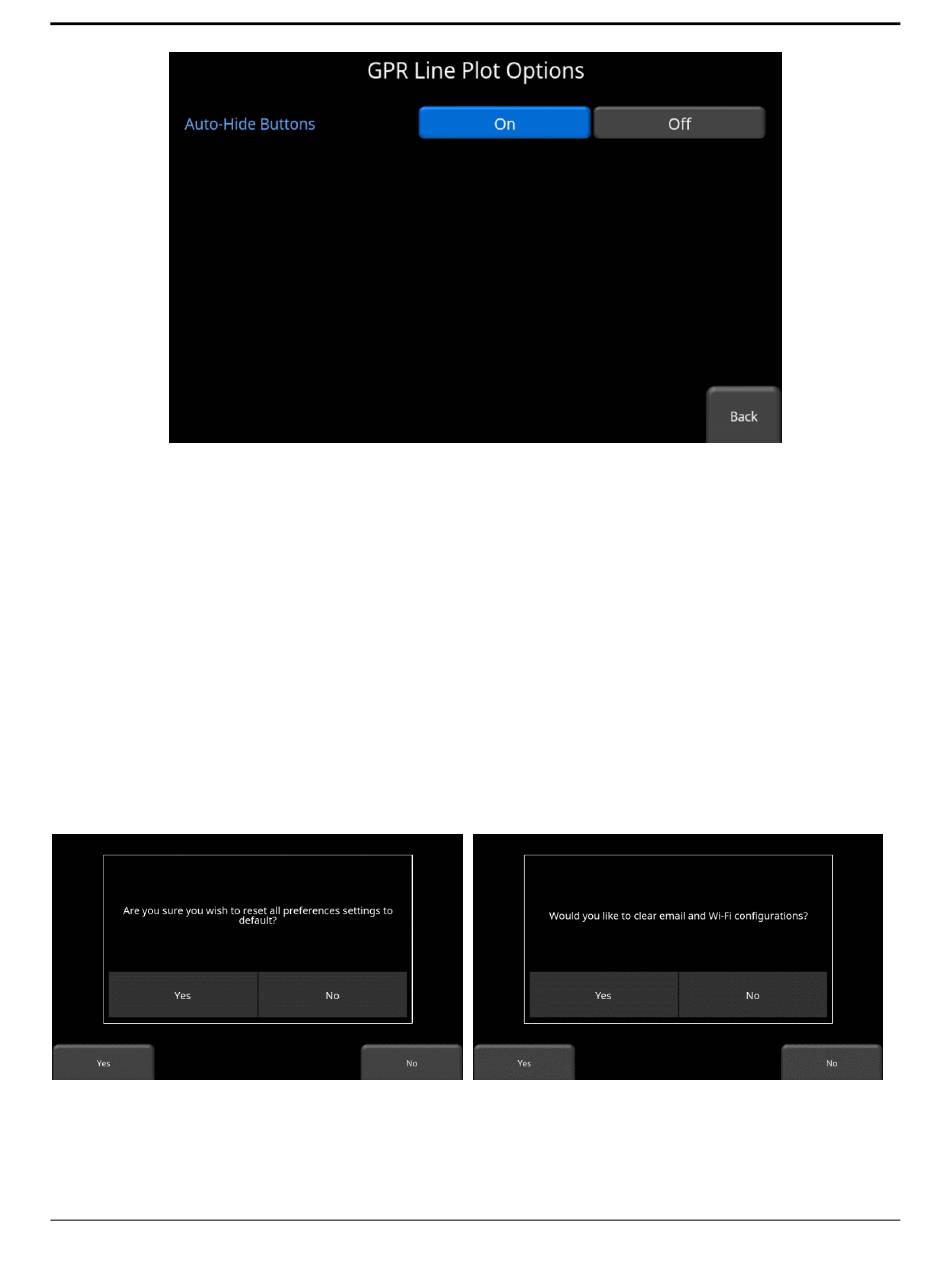

Figure 4-9: Reset to Defaults, a) Image on left is the first confirmation screen. b) If you press Yes, you will see the
second confirmation screen on the right asking about deleting emails and Wi-Fi settings.
Figure 4-8: GPR Line Plot Options
19
