o Connect – Select the desired network and press Connect.
If the connection is successful (this can take a minute or so) a screen appears asking for the
password for that network. If the network name is yellow (from a previous connection to this
network), it will not ask for a password because it is a remembered network. Once it
connects the Network Name will turn green.
o Forget – Use the Forget button to remove the password for connected or remembered
networks (text in green or yellow). Once the 'forget' button is pressed on a selected network
it will remove the password and the Network Name will turn white. You will also be
disconnected if you are currently connected to that network.
o Scan – Scans for any available networks in the area and displays them in order of strength
of signal. You may need to press this button a second time if you don't see the network you
are looking for.
o Details – Pressing this button displays the security settings and device addresses related to
the selected network.
o Back – Press this button to return to the System Settings screen.
4.1.7

Email

Press Email to arrive at a sub-menu where you can setup and configure a sending email
address. Ensure that this email address already exists. This is the sending account where
messages will originate from. All mini-reports received by the recipient will appear to come from
this account.
Using GMAIL
The system is already pre-configured to use GMAIL as the email provider for the sending
account (Figure 4-5):

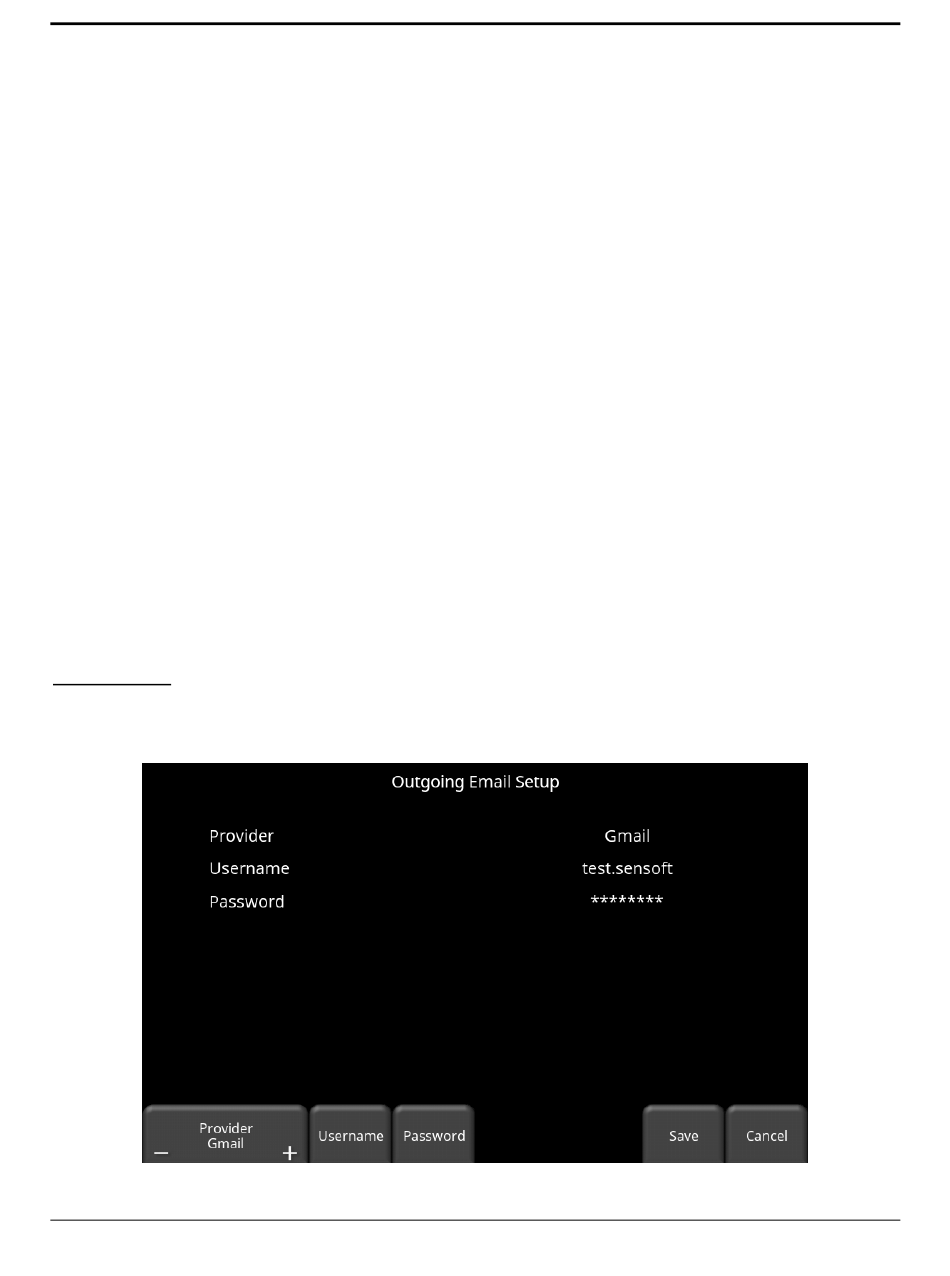

Figure 4-5: Using GMAIL as email provider
