Texas Instruments CC1101 Quick Start Manual

CC1101 Evaluation Module Kit Quick Start Guide
Opening the box and using the modules with SmartRF04EB

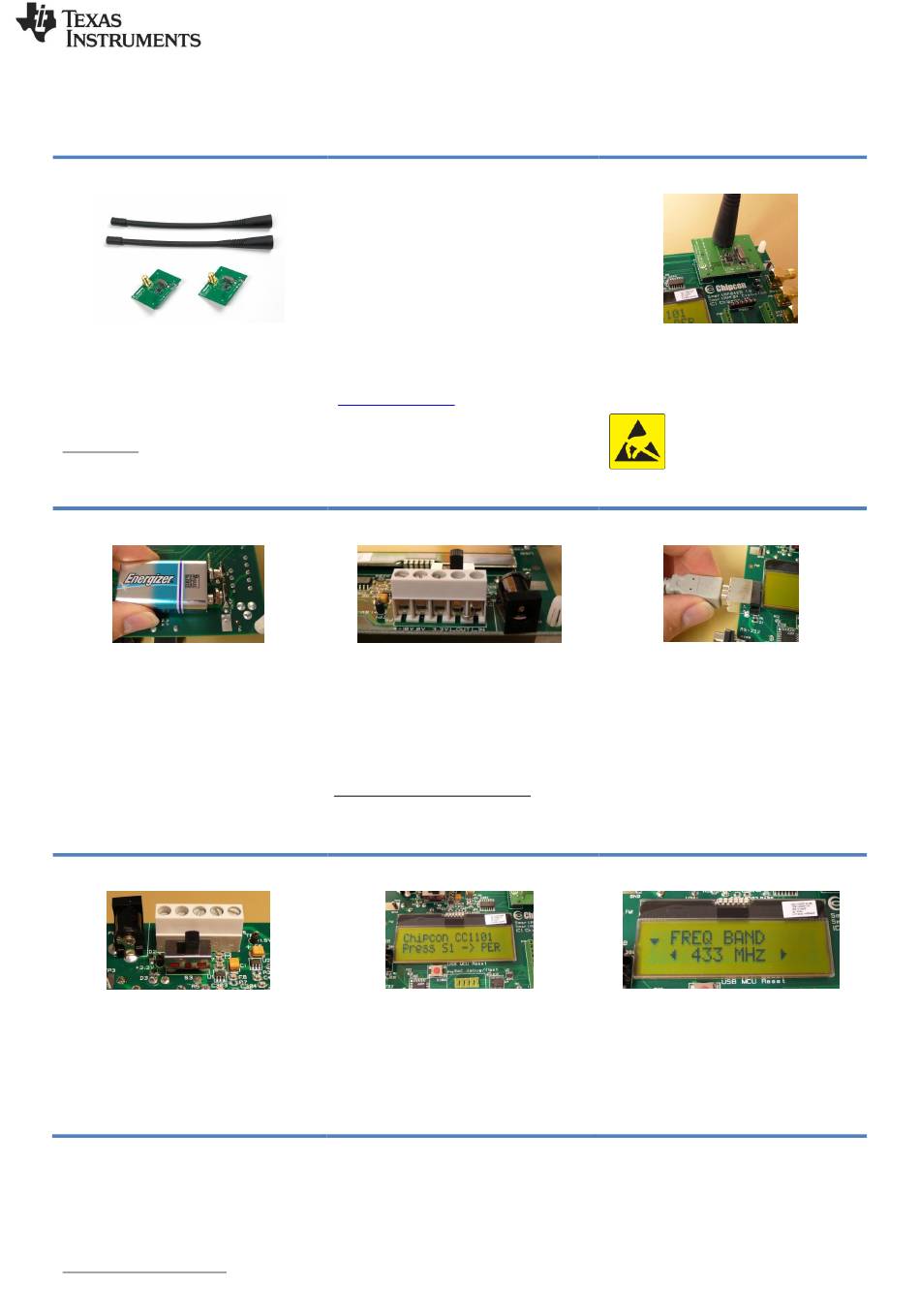

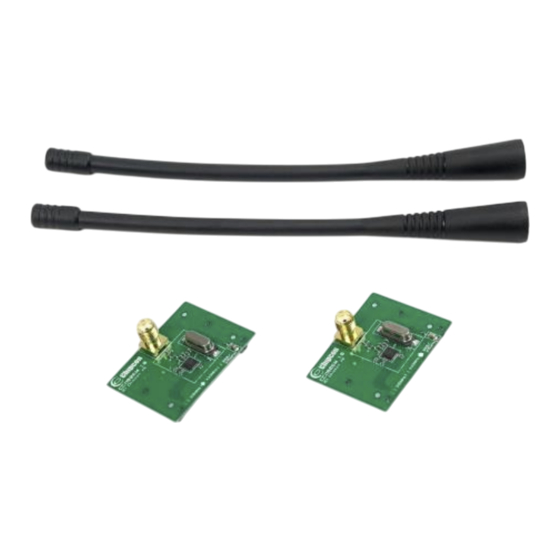

1. Kit Contents

2 x CC1101 Evaluation Modules (433 or 868-915)
2 x Antennas (type depending on frequency)
Documentation
The RF boards in this kit are designed to comply
with ETSI, FCC and IC regulations
temperatures from 0 to +35°C.
Antenna types:
868-915 MHz: Pulse W5017, 2 dBi
420-470 MHz: Pulse SPWH24433TI, 0 dBi
(picture may deviate)
4a. Power: Battery
There are three different ways of applying power
to the EB:
The first method involves using an alkaline non-
rechargeable battery, either a 9V or a 4xAA
battery pack connected to the battery connector
on the bottom side of the board
Warning! To minimize risk of personal injury or
property damage, ONLY use alkaline non-
rechargeable batteries. Never use rechargeable
batteries to power the board.
5. Set Power Switch
If a 3.3V source is used as described in 4b
above, the switch should be set to the leftmost
position. For all other cases, the switch should
be set to the rightmost position. This switch can
be used to turn off the EB by switching it to the
opposite position of that used to turn it on
Do not leave the board powered when
unattended.
1
When using an external power supply, make sure it meets the listed requirements in addition to complying with applicable regional product regulatory and
safety certification requirements such as UL, CSA, VDE, CCC, and PSE
2. How to use the modules
The CC1101EM boards can be plugged into
several development boards
Instruments. One option
SmartRF04EB, which
CC1101DK.
Alternatively, you can
Transceiver EB (sold
SmartRFTrxEBK). Both boards let you run a
packet error rate (PER) test, control the device
from SmartRF™ Studio, and they can be used as
software development platforms.
For prototyping with other microcontrollers, plug
the EM into the "SoC
(www.ti.com/tool/soc-bb).
over
This guide will show how to use the modules
together with SmartRF04EB. The procedure is
similar for the SmartRF TrxEB.
4b. Power: DC/External
The second method applies DC power using
the DC input jack (right in picture, centre is +,
sleeve is ground), or by connecting a 4-10V
voltage source between the 4-10V and 0V
terminals of the power connector (left in
picture). It is also possible to connect a 3.3V
voltage source between the 3.3V and 0V
terminals. The on-board voltage regulators will
be bypassed in this case.
1
External Power Supply Requirements:
Nom Voltage: 6 VDC
Max Current: 800 mA
Efficiency Level V
6. Packet Error Rate Test
When power is applied to the board, the PER test
program will start. You should see the text shown
above on the LCD display on both evaluation
boards.
Press the button marked S1 (lower right corner)
to continue.
3. Plug EM into SmartRF04EB
from Texas
is to use the
is included in the
use the SmartRF
separately as
Insert a CC1101EM (EM) with an antenna into
the SmartRF04EB (EB). The connectors will only
fit in one position, so that the EM cannot be
inserted the wrong way.
Battery Board"
4c. Power: USB
The EB can also be powered from the USB bus.
Make sure that the SmartRF™ Studio software is
installed before connecting the EB to the PC;
otherwise you may experience problems in
installing it later due to driver issues.
Note
connected, the source with the highest voltage
will power the EB. This means that you should
disconnect any attached battery when using a
lab supply or USB power; otherwise the
battery will be drained.
7. Set Frequency Band
Select the desired frequency band of operation by
using the joystick. The frequency should match
the evaluation module and antenna you are
using.
Note that the value shown in the display is also
the selected value. There is no need to press a
button to select or activate the selection.
SWRU261
September 2015
Caution! The kit contains
sensitive components. Handle with care
to prevent permanent damage.
that if multiple power sources
ESD
are
