NEC MultiSync UN552VS Installation Manual page 2

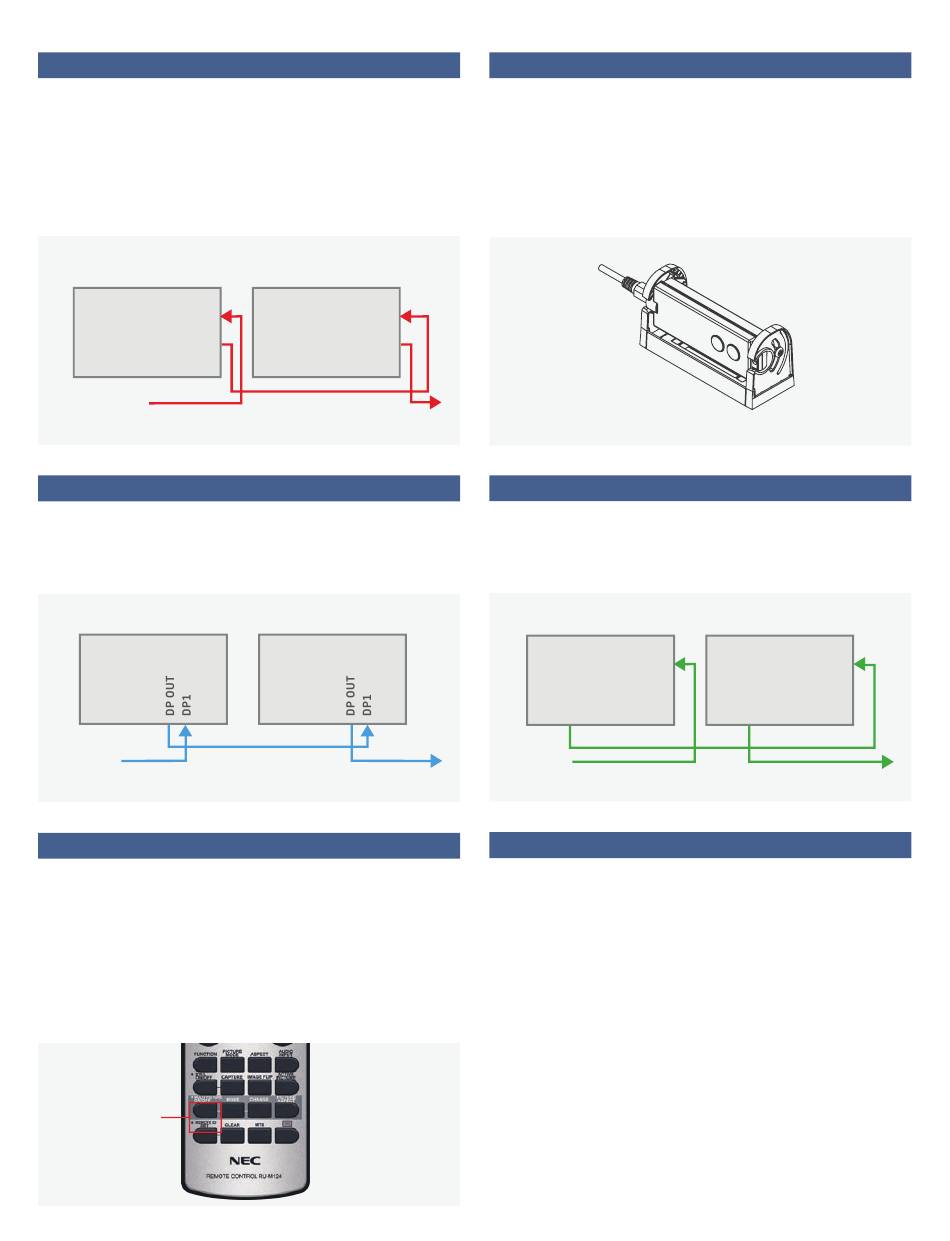

1. LAN cable Daisy Chain
Used for controlling monitors via network management system (e.g. NEC NaViSet
Administrator 2), external remote kit KT-RC3 and for display calibration.
Note: LAN1: input, LAN 2: output. Alternatively, RS232 input can be used for the first
monitor.
DISPLAY 1
LAN 1
LAN 2
FROM NETWORK
MANAGEMENT
3. DisplayPort Daisy Chain
Used for forwarding video signals from the following sources: DisplayPort and OPS Slot-in
PC when set to 'DisplayPort' in OPTION - SLOT2 CH SELECT - DisplayPort. Note that not
all OPS devices support this internal connection.
DISPLAY 1
EXTERNAL
SOURCE
5. How to program the correct ID on the Remote Control
The Remote Control can be configured to manage a dedicated monitor or all monitors
in parallel.
• All displays in parallel: Hold REMOTE ID SET (bottom left key), press the "0" button,
then release REMOTE ID SET
• Dedicated display (e.g. Display 1): Hold REMOTE ID SET (bottom left key), press the
"1" button, then release REMOTE ID SET
REMOTE ID
SET
Connect the sensor to the first screen in the LAN daisy chain using the supplied 3.5mm
jack cable. (connect to interface "REMOTE" on the first screen)
Note: The sensor allows you to benefit from the ambient light sensor and the human
sensor, it also serves as a conventional IR receiver enabling you to control the wall via
the remote control. The KT-RC3 sensor kit, including remote control is sold separately.
DISPLAY 2
LAN 1
LAN 2
TO DISPLAY 3
Used for forwarding video signals from the following sources: HDMI1, DVI,
internal Media Player and OPS Slot-in PC when set to 'DisplayPort' in OPTION - SLOT2 CH
SELECT - TMDS. Note that not all OPS devices support this internal connection.
DISPLAY 2
TO DISPLAY 3
Connect your external PC to the DisplayPort1, HDMI1 or DVI interface on the first monitor.
Alternatively, utilize an OPS Slot-in PC or the integrated Media Player embedded into the
first monitor for a neat and seamless solution.
If using an OPS Slot-in PC, you may have to adjust the SLOT 2CH SETTING and the SLOT
2CH SELECT options located in the OPTION menu of the OSD.
Video Wall Installation Guide
2. Connect remote IR sensor (KT-RC3)
4. HDMI Daisy Chain
DISPLAY 1
HDMI 1
HDMI OUT
EXTERNAL
SOURCE
6. Connect a source to the primary monitor
NEC Display Solutions
DISPLAY 2
HDMI 1
HDMI OUT
TO DISPLAY 3
