82 Chapter 8 - FM (VHF) Measuring Range
Chapter 8 FM (VHF) Measuring Range
You activate the FM (VHF) range via RANGE -> FM.

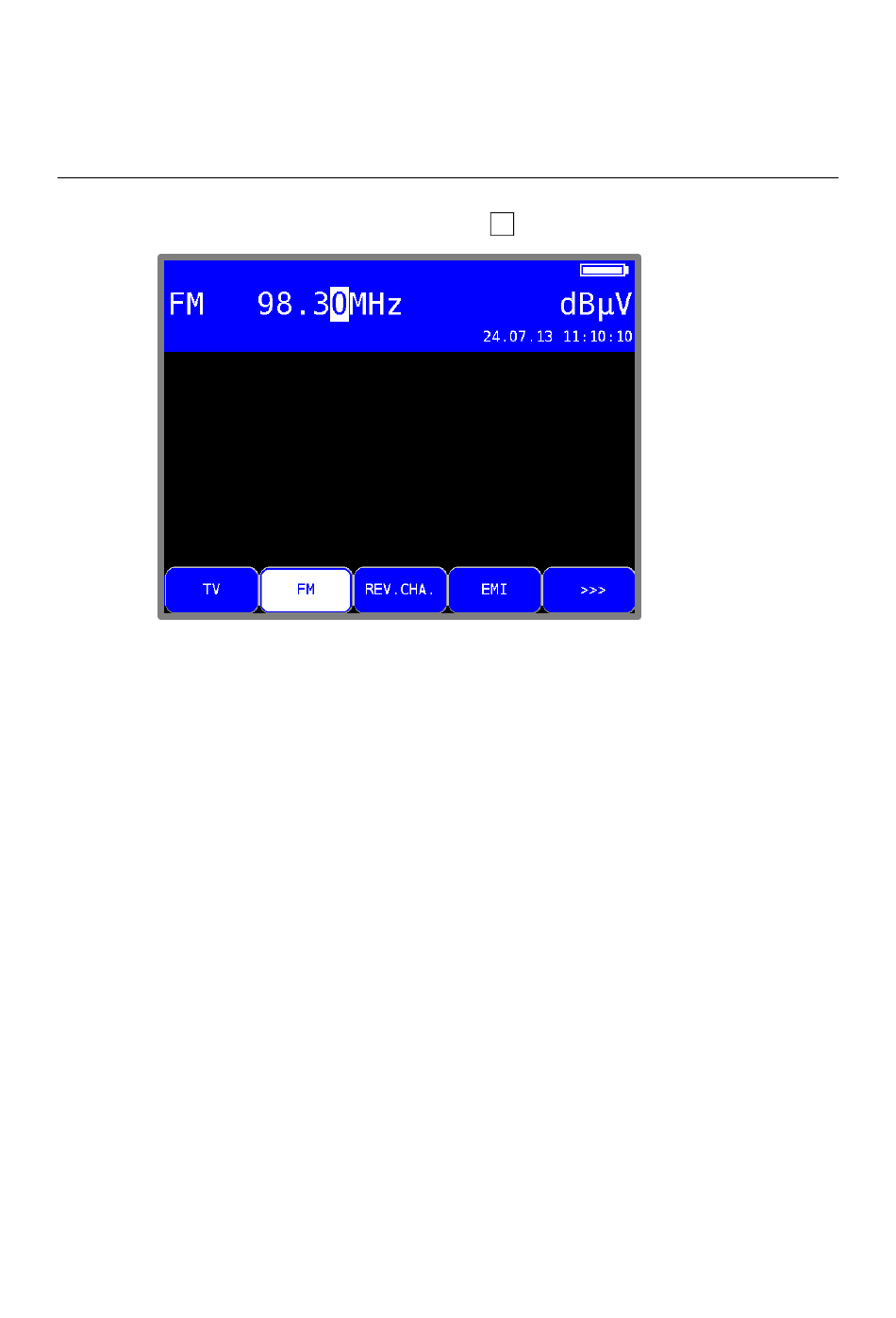

Figure 8-1 VHF measuring range
8.1

Frequency input

You can enter a frequency between 87.40 and 108.20 MHz using the numeric keypad or the arrow
keys. Here the smallest frequency resolution is 0.01 MHz (10 kHz). You use the ENTER key to
confirm the entry. After that, the receiver is tuned and the actual measured values are displayed.
Invalid entries are limited to the corresponding minimum or maximum value.
8.2

Sound reproduction

The measuring instrument's VHF stereo receiver demodulates a received VHF signal and
reproduces the audio signal using the built-in loudspeakers.
106 V3.2
