6.4.5.5

Show Continuous Wave (CW) tones

To get a general survey of the available UBs and the frequency-response curve, a CW tone at all
available UBs is started and can displayed by the analyzer.

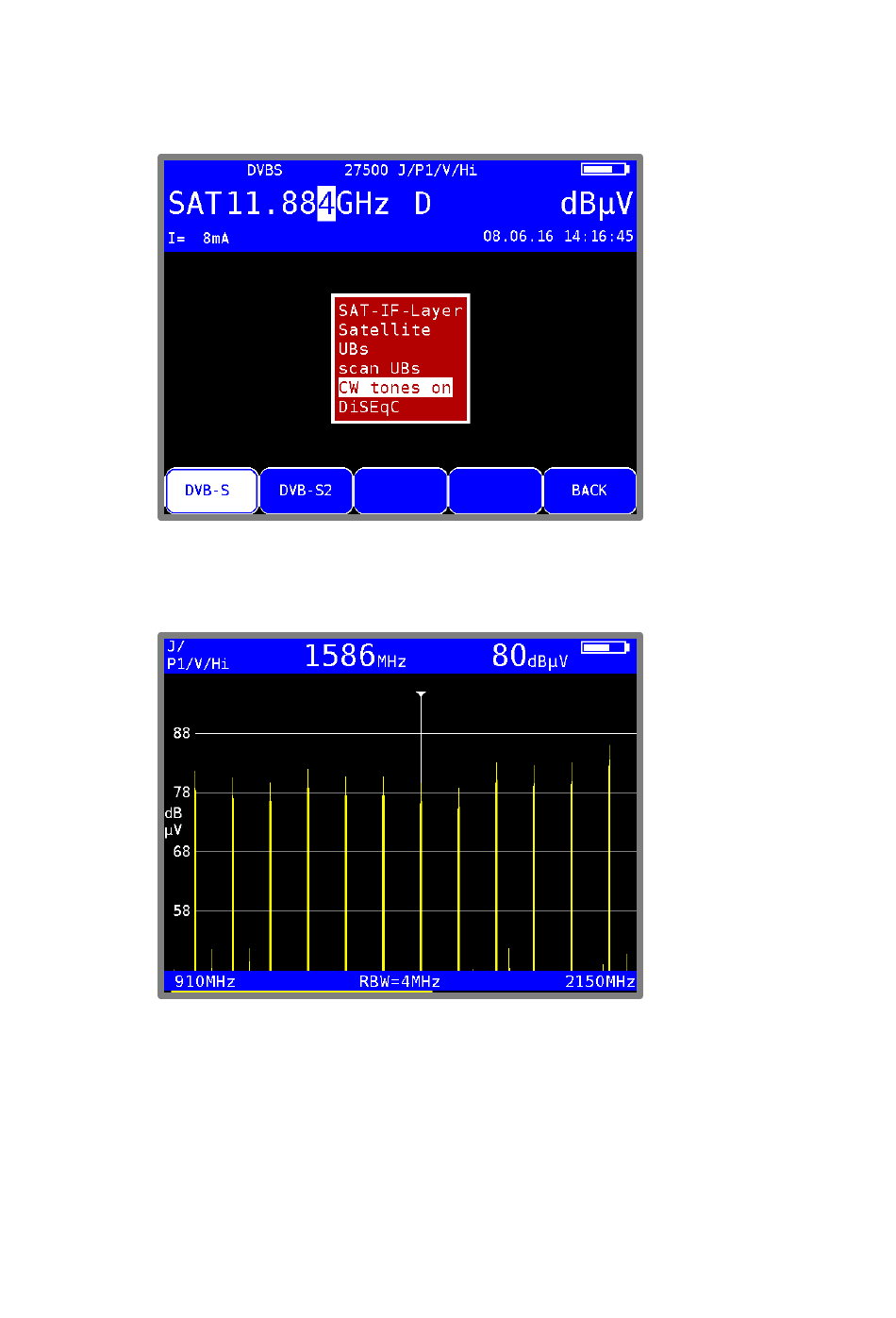

Figure 6-24 LNB menu JESS
First, the JESS-Mode must be activated. Selecting LNB -> CW tones on, a CW tone at all
available UBs is started and the device gets in the analyzer mode.
Figure 6-25 LNB Continuous Wave tones
Note! This feature is only available for devices according the EN50607. Using this,
other receivers on the same cable are impeded, so it's only for service
purpose.
