Exporting The Channel List - KWS Electronic VAROS 106 Manual

Chapter 7 - TV Measuring Range 81

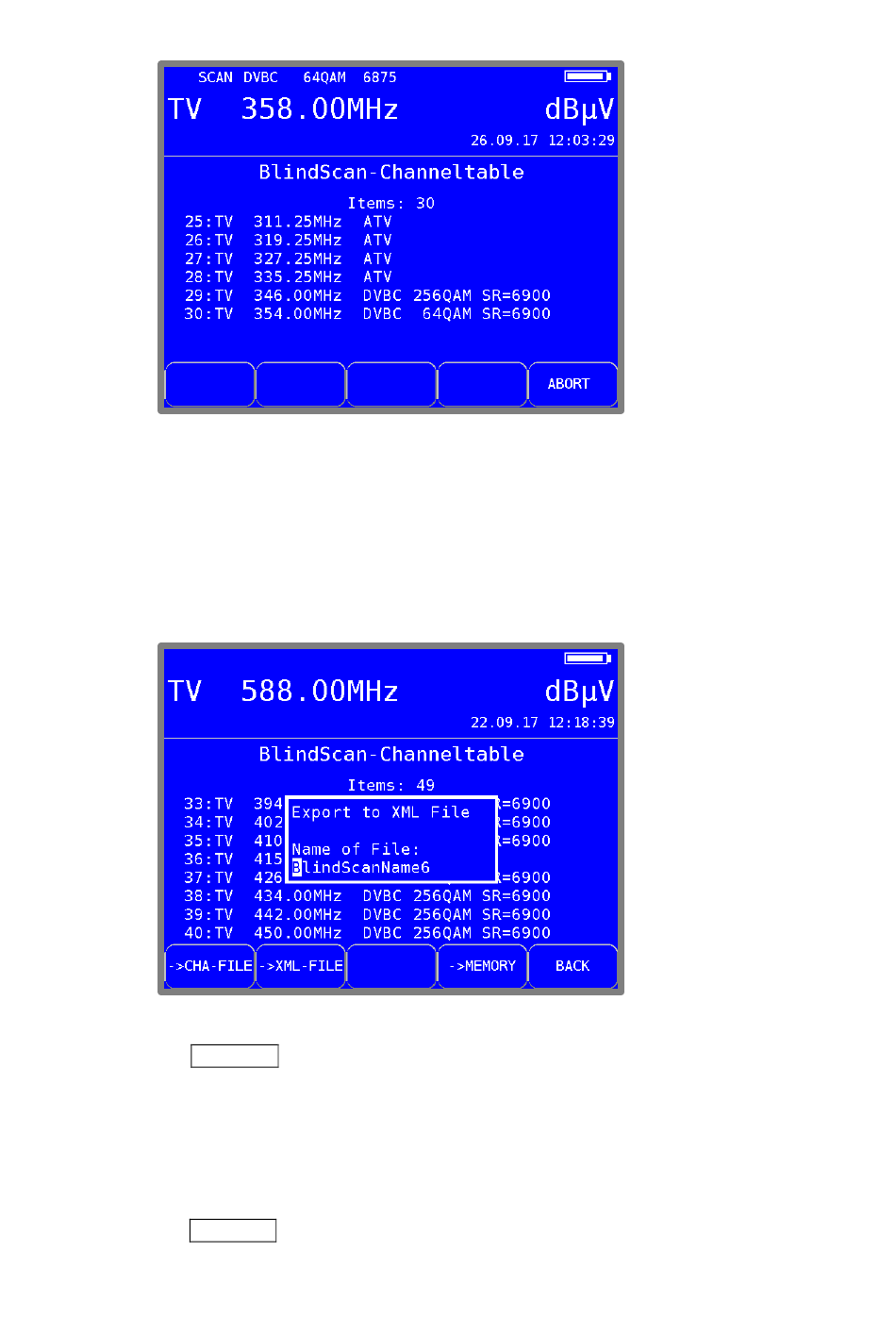

Figure 7-26 BlindScan Channeltable
The scan can be aborted at any time using the F5 key. After a manual abort, the channel list
determined up to that point remains available for further processing.
The following figure shows a list as it is displayed on the TFT of the instrument.
7.5.3

Exporting the channel list

Once the function is ended (either regularly or manually), the list determined by the instrument is
available for further processing. Selecting the EXPORT menu item displays the following menu.
Figure 7-27 BlindScan export to XML file
The ->CHA-FILE menu item allows the list to be exported as a user-defined channel list (see
"Chapter User-defined TV channel table18.7 - User-defined TV channel table"). The instrument
numbers the channels consecutively starting with C1. This can be easily adjusted using the "AMA
Remote" PC software. This channel table can then be re-imported into the instrument.
This is particularly useful when a cable system has a frequency configuration that does not
correspond to a standard channel table. This is necessary because special functions, such as the
TILT measurement, require a suitable channel table.
The ->XML-FILE menu item allows the list to be saved in XML format. This is primarily used for
documentation purposes.
106 V3.2
