Summary of Contents for Thermalright Macho Zero

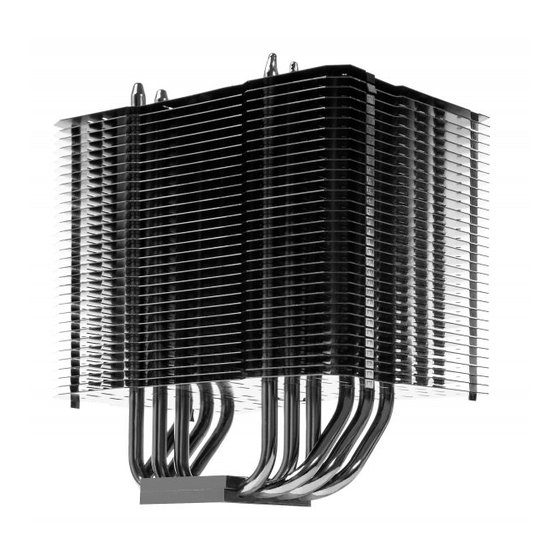

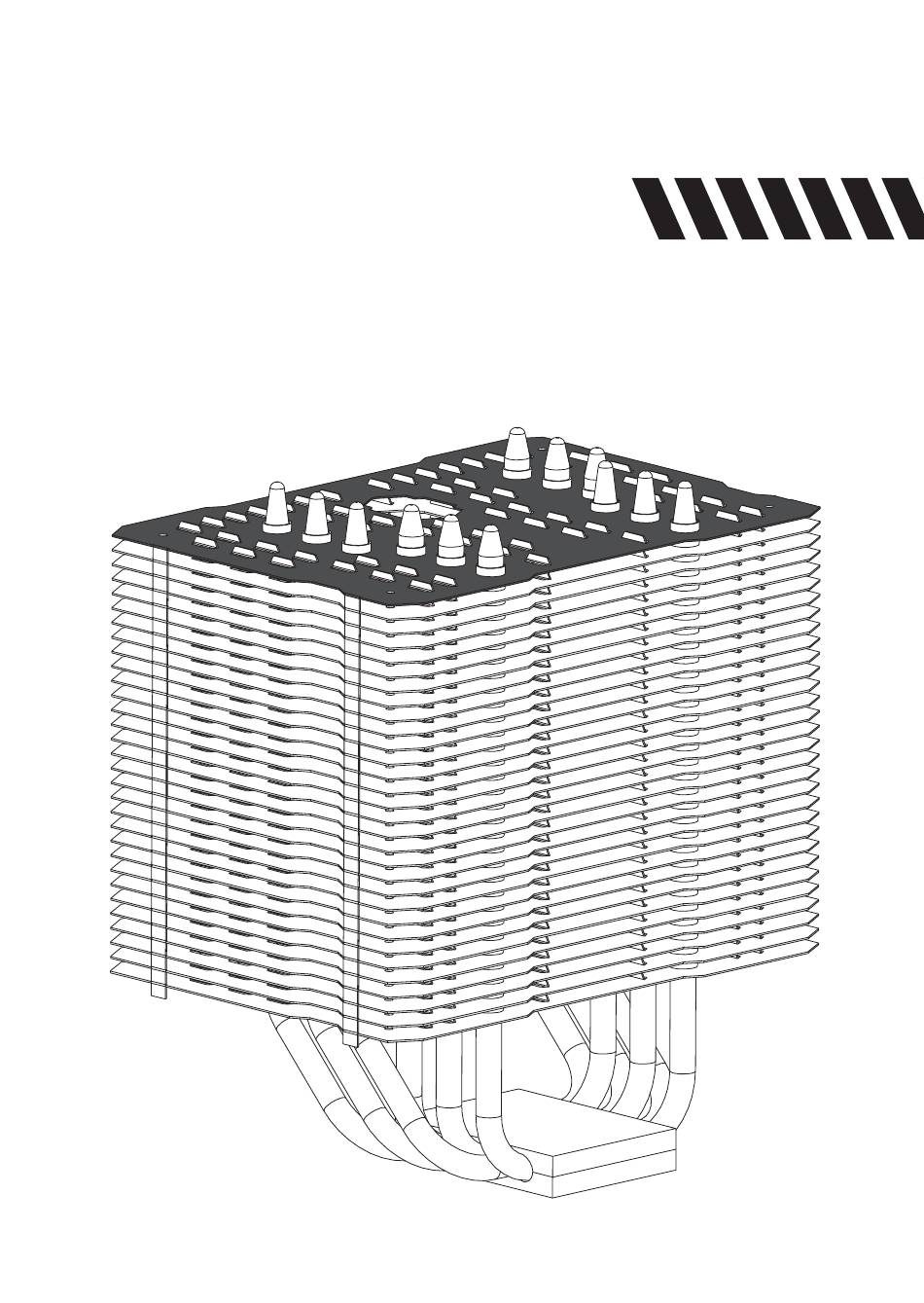

  • Page 1 Thermalright Macho Zero...
  • Page 3 Assembly package Macho Zero × 4 × 1 × 4 × 4 × 7 × 4 × 4 × 5 × 1 × 1 × 1 × 2 × 1 × 1 × 2...
  • Page 4: Exploded View

    Macho Zero Intel 775/1150/1155/1156/1366 Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.thermalright.com Heatsink Body Mounting Plate M3L6 Screw Anchoring Mount Screw Nut Motherboard Intel Washer (small) Mylar Film Metal Back Plate M3L10 Screw...
  • Page 5 M3 L6 Screw ×7 Intel Washer (small) ×4 AMD Washer (big) ×4 Anti-Vibration Pad ×4 Backplate cap ×1 Fan Clip ×2 Ckill Factor III ×1 Screw driver ×1 Mylar Film ×1 white cotton gloves ×2 The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 6: Installation Instructions

    Installation Instructions: - Please use the included gloves during installation to avoid finger prints on heatsink body. Step 1: 1150 1366 1155 1156 Step 1 : Backplate Installation Choose the platform (775/1150/1155/1156/1366) you are in use. Make four M3L10 Screw Pillars go through the Metal Back Plate and the Mylar film from bottom towards top.And then place the Metal Back Plate on the table.
  • Page 7 Driver through the central heatsink and the system exhaust fan at the rear of hole of the Heatsink Body, your case. Connect the end with the Thermalright for easier access to the logo of the fan duct to the rear case exhaust fan.
  • Page 8 Macho Zero Intel 2011 Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.thermalright.com Heatsink Body M3L6 Screw Mounting Plate Anchoring Mount LGA2011 Type B Screw Pillars Motherboard...
  • Page 9 M3 L6 Screw ×7 Intel Washer (small) ×4 AMD Washer (big) ×4 Anti-Vibration Pad ×4 Backplate cap ×1 Fan Clip ×2 Ckill Factor III ×1 Screw driver ×1 Mylar Film ×1 white cotton gloves ×2 The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 10 Installation Instructions: - Please use the included gloves during installation to avoid finger prints on heatsink body. Step 1: Step 1 : Screw Pillar Installation Place the motherboard (the processor installed) on top of the desk or a workbench. Fix the four included LGA2011 Type B Screw Pillars into the heat-sink studs on the Intel ILM Assembly Frame around the processor socket in a criss-cross pattern.
  • Page 11 Driver through the central heatsink and the system exhaust fan at the rear of hole of the Heatsink Body, your case. Connect the end with the Thermalright for easier access to the logo of the fan duct to the rear case exhaust fan.
  • Page 12 Macho Zero AM2/AM2+/AM3/AM3+/FM1/FM2 Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.thermalright.com Heatsink Body Mounting Plate M3L6 Screw Anchoring Mount Screw Nut Motherboard AMD Washer (big) Mylar Film Metal Back Plate M3L10 Screw...
  • Page 13 M3 L6 Screw ×7 Intel Washer (small) ×4 AMD Washer (big) ×4 Anti-Vibration Pad ×4 Backplate cap ×1 Fan Clip ×2 Ckill Factor III ×1 Screw driver ×1 Mylar Film ×1 white cotton gloves ×2 The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 14 Installation Instructions: - Please use the included gloves during installation to avoid finger prints on heatsink body. Step 1: Step 1 : Backplate Installation Choose the platform (AMD) you are in use. Make four M3L10 Screw Pillars go through the Metal Back Plate and the Mylar film from bottom towards top.
  • Page 15 Driver through the central heatsink and the system exhaust fan at the rear of hole of the Heatsink Body, your case. Connect the end with the Thermalright for easier access to the logo of the fan duct to the rear case exhaust fan.
  • Page 16 Macho Zero Fan Installation (Optional) Fan clips Anti-Vibration Pad...
  • Page 17 Macho Zero Step 1: Step 1 : Apply Anti-Vibration padding to 4 corners on the heat-sink. Step 2: Step 2 : Put the fan clips into the dents on two sides of the heat-sink body. Step 3: Step 3 : Fan installation completed.
  • Page 18: Technical Spec

    Macho Zero Technical Spec Heatsink Specifications: Dimension: Length 140mm x Width 102mm x Height 162mm Weight: 710g Heatpipe: 6mm heatpipe*6 units Copper Base: C1100 Pure copper nickel plated Fan Specification: Dimension: L152mm x H140mm x W26.5m Weight: 160g Fan speed: 900~1300RPM (4-Pin PWM) Fan noise: 17~21dBA MAX (4-Pin PWM) Airflow: 28.3~73.6CFM MAX...
  • Page 19 The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 20 The Ultimate Cooling Solutions! www.thermalright.com TEL: +886-2-8663-6630 FAX: +886-2-8663-6645 EMAIL: sales@thermalright.com...
