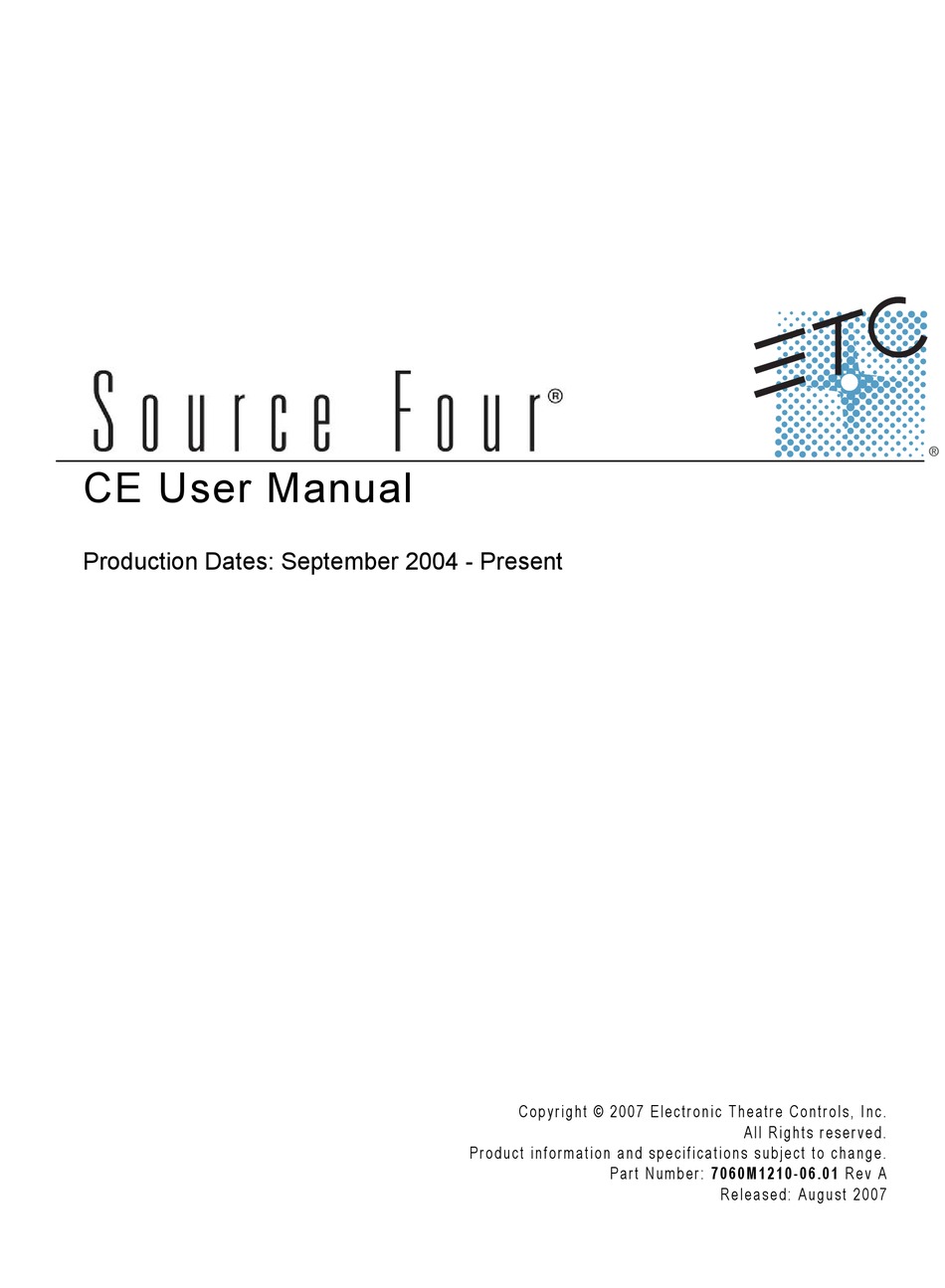

CE User Manual
Production Dates: September 2004 - Present
C o p y r i g h t © 2 0 0 7 E le c tr o n i c T h e a t r e C o n t r o l s , I n c .
A l l R i g h t s r e s e r v e d .
P r o d u c t in f o r m a t i on a n d s p e c i f i c a t i o n s s u bj e c t t o c h a n g e .
P a r t N u m b e r : 7060M1210-06.01 R e v A
R e l e a s e d : A u g u s t 2 0 0 7
Advertisement
Table of Contents
Related Manuals for ETC ETC 405
Summary of Contents for ETC ETC 405
- Page 1 CE User Manual Production Dates: September 2004 - Present C o p y r i g h t © 2 0 0 7 E le c tr o n i c T h e a t r e C o n t r o l s , I n c . A l l R i g h t s r e s e r v e d .
-
Page 2: Table Of Contents
® ® ® E TC , E m p h as i s , E x p r e s s i o n , I n s i g h t ™ , I m a g i n e ™ , F o c u s ™ , E x p r e s s ™ , U n i s o n ®... -
Page 3: Declaration Of Conformity
Declaration of conformity We, Electronic Theatre Controls, Europe Ltd. declare under sole responsibility that the product: Product name: Product type/model: Lot: Batch/Serial number: Item numbers: to which this declaration relates in conformity with the following standards: EN60598-1:2000 EN60598-2-17:1990 following the provisions of EU LV Directive(s) 73/23/EEC London, United Kingdom (Place of issue) (Date of issue) -
Page 4: Source Four Ce Guidelines
English Source Four CE guidelines The Source Four CE is intended for professional use only. Read the entire User Guide before using equipment. W A R N I N G : Please note the following safety precautions. • Do not mount the Source Four CE on or near a flammable surface. •... -
Page 5: Basic Luminaire
Basic luminaire Primary suspension yoke mounting holes Retainer bolt Colour frame Lens tube Gel retainer clip Safety screen Colour frame holder (19°, 26°, 36° and 50° only) W A R N I N G : Please note the following safety warnings before use: Do not mount the luminaire on or near combustible surfaces. -
Page 6: Luminaire Information
English L u m i n a i r e i n f o r m a t i o n Wiring an d power information A plug of at least 2.5 amp (220/240V) rating should be attached to the luminaire’s mains lead. The wires in the mains lead are 1.55mm Green and Yellow: Blue:... -
Page 7: Colour Frame Holder
C o l o u r f r a m e h o l d e r The colour frame holder is equipped with a spring-loaded retaining clip that prevents colour frames and accessories from falling out. See W A R N I N G : Make sure all colour frame accessories are locked in position with the retaining clip before hanging the Source Four luminaire. -
Page 8: Replacing The Hpl Lamp
English R e p l a c i n g t h e H P L l a m p A lamp must be installed before you use the luminaire. N o t e : Verify that the HPL lamp you intend to install is suitable for your facility’s voltage; 115-, 120-, 230-, and 240-volt HPL lamps are available. -
Page 9: Centering Lamp And Adjusting The Field
C e n t e r i n g l a m p a n d a d j u s t i n g t h e f i e l d Rear lamp housing Outer Knob - lamp center adjustment The two concentric knobs located on the lamp housing allow you to align the lamp and adjust its field. -
Page 10: Shaping The Beam
English S h a p i n g t h e b e a m The beam can be shaped using the shutters (see rotating the barrel. Gobo Pro jection The gobo holder slot is on the top side of the barrel and in front of the shutters. It accommodates A-size, B-size and glass gobo holders (see A-Size Gobo holder: holds 7.62 cm diameter gobos... -
Page 11: Rotating The Barrel Assembly
Step 3: Insert the iris or motorized gobo device. For an iris, install the flat side toward the shutters and make sure the iris handle extends from the slot. Step 4: Slide the slot cover back toward the shutters until it meets the iris handle. Leave enough space to move the iris handle. -
Page 12: Cleaning Lens And Reflector
English Setting t he angle wit hin the yoke Yoke locking knob Step 1: Loosen the yoke locking knobs (see Step 2: Tilt the luminaire to the desired position. Step 3: Tighten the yoke locking knobs to secure in position. C l e a n i n g l e n s a n d r e f l e c t o r W A R N I N G : Do not use ammonia-based or other harsh commercial cleaners. - Page 13 Step 1: Remove the beam focus knob at the bottom of the barrel (see tube from the barrel. Step 2: Use a Phillips screwdriver to remove the brackets that hold the lens in place. Remove the lens from the tube. Step 3: Dip the lens in a clean isopropyl alcohol/water mixture (9 parts water to 1 part isopropyl alcohol).
-
Page 14: Portable Appliance Test (Pat) Guidelines
English P o r t a b l e a p p l i a n c e t e s t ( P A T ) g u i d e l i n e s The Portable Appliance Test is a set of tests that must be administered to electrical equipment in the UK and some locations in Europe to ensure safety.The tests are typically carried out using a small PAT device. - Page 15 English...
- Page 16 Corporate Headquarters 3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA Tel +608 831 4116 Fax +608 836 1736 London, UK Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK Tel +44 (0)20 8896 1000 Fax +44 (0)20 8896 2000 Rome, IT Via Ennio Quirino Visconti, 11, 00193 Rome, Italy Tel +39 (06) 32 111 683 Fax +39 (06) 32 656 990 Holzkirchen, DE Ohmstrasse 3, 83607 Holzkirchen, Germany Tel +49 (80 24) 47 00-0 Fax +49 (80 24) 47 00-3 00 Hong Kong Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong Tel +852 2799 1220 Fax +852 2799 9325...
