ETC IRIDEON AR500 Installation Sheet

Power Up and Final focus
29. Apply power to start lamp.
Note: The luminaire calibration process will drive all filters to an open
position. The luminaire will remain in this state until data is present.
Allow seven minutes for lamp to reach operating temperature.
30. Focus luminaire as follows:
a Tilt head assembly to adjust for elevation.
b Turn stanchion to adjust left/right orientation.
c Tighten Allen head screw in tilt tube clamp securely.
d Power unit off.
e Remove stanchion cap.
f Tighten 1-1/4 inch nut securely. Tilt tube clamp should hold
head in place while tightening.
g Replace stanchion cap (ensure gasket forms good seal).
h Tighten nuts or bolts on stanchion base securely.

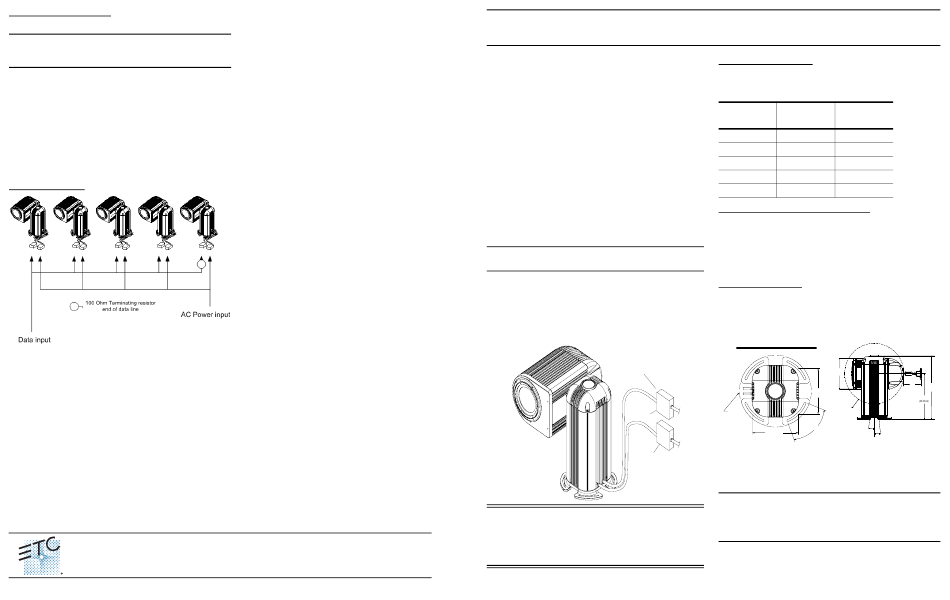

Sample wiring riser
A m e r ic a s M i d d le t o n , W i sc on s in • U S A • Te l: (+1 ) 60 8 8 31 4 116 • F a x: ( +1 ) 6 0 8 83 6 1 73 6 • (+ 1 ) 8 00 7 7 5 4 3 8 2 • s e rvi c e@ e t cc o nn e ct . co m
E u ro p e L on d o n • U n it ed K i ng d o m • Te l : + 44 ( 0 )2 0 8 89 6 1 0 00 • F a x: + 4 4 (0 )2 0 8 8 9 6 20 0 0 • s er vi c e@ e t ce u ro p e . co m
A si a H o n g K o ng • Te l : ( +8 5 2 ) 2 7 9 9 12 2 0 • F a x : (+ 8 52 ) 2 7 99 9 3 2 5 • se r vi ce @ et ca si a . c om
I n t e rn a t i o na l 3 0 3 0 La u ra L a n e • M i d d l et on , Wi s co n si n 5 3 56 2 • Te l : (+ 1 ) 6 0 8 8 31 4 11 6 • F a x: (+ 1 ) 6 0 8 8 36 1 7 3 6 • w ww.e t cc o nn e ct . c o m
Co p yr i gh t © 2 00 2 E le c t ro n i c T h e a t re Co n t ro l s, I n c. , A l l R i g ht s R e se rv e d.
P r od u ct i nf or m a t i o n a nd s p ec i f i ca t i o n s s ub j e ct t o ch a n ge • 7091M1004 • Re v D• Re l e a se d 0 9/ 02
Technical Assistance
The AR500 is a low maintenance luminaire, but in the event of
malfunction, troubleshooting and repair procedures have been
included in the owners manual. For further assistance regarding
the AR500 luminaire, please contact Electronic Theatre Controls
Technical Support staff at one of the offices identified below.
Americas
ETC Americas
Technical Services Department
3030 Laura Lane
Middleton, WI 53562
phone: (608) 831-4116
toll free: (800)775-4382
email: service@etcconnect.com
Europe
ETC Europe Ltd.
Technical Services Department
5 Victoria Industrial Estate
Victoria Road
London, W3 6UU England
phone: +44 (0)208 896 1000
email: service@etceurope.com
Asia
ETC Asia, Ltd.
Technical Services Department
Room 605-606
Tower III, Enterprise Square
9 Sheung Yuet Road
Kowloon Bay, Kowloon, Hong Kong
phone: +852-2799-1220
email: service@etcasia.com
IRIDEON™ AR500™ Exterior Wash Luminaire
Installation Sheet - Standard Version
Before Starting
The AR500 luminaire head and stanchion are packed in two sepa-
rate cartons. Lamps (if purchased), manuals, full lens set, tool kit
and accessories are packed in a third box. The tool kit (part#
7091K4009) includes the following items:
• 1-15/16 inch wrench
• 3/16"x9" T-handle Allen wrench
• 100 Ohm Termination resistor
• Depinning tool
Items also required, but not supplied:
• #2 Phillips screwdriver
• 5/32 Allen wrench
• Two waterproof junction boxes with terminal strips (or one barri-
ered waterproof junction box) for each luminaire.
• Stanchion mounting hardware: 4 each 3/8-18 or M10 studs,
nuts, flat and lock washers.
• Ohm meter
Site Preparation
Note: The installation contractor is responsible for compliance with
local electrical codes.
The luminaire stanchion is provided with 10 feet (3m) of data input-
cable and 10 feet (3m) of power input cable for external termination.
Use separate waterproof junction boxes (or a single barriered
waterproof junction box) to connect data and AC power cabling to
each luminaire. Use terminal strips to connect data wiring inside
junction boxes.
Junction Box
AC
Data
CAUTION: This equipment contains sensitive elec-
tronic components that require electrical isolation dur-
ing installation and operation. DO NOT arc weld on
mounting platform with electronics assembly installed in
luminaire stanchion.
AC Power requirements
The AR500 luminaire is available in voltages ranging from 100VAC to
277VAC. Each AR500 luminaire requires 900 watts of power at the
specified voltage and frequency.
Current at Current at
At Voltage
Startup Run
100V 24A 8A
120V 21A 7A
208V 12A 4A
240V 10A 3.5A
277V 9.75A 3.25A
AC Power and Data wire requirements
AC Power Input:
Wire Gauge: 16AWG 3-conductor (*1.5mm2X3-conductor)
* European "CE" model
Data Input:
Belden 9729 or equivalent - 22AWG 2-shielded twisted pairs with
drain wire.
Stanchion Placement
The AR500 luminaire stanchion mounts using 3/8-18 inch (M10)
hardware placed in a 10-1/8 inch (257mm) square pattern. When
using a concrete platform, the studs should be at least 4 inches
(100mm) deep. As shown below, the slots in the stanchion base allow
the unit to rotate 45 degrees.
Stanchion Mounting "Footprint"
13.13"
(33.35cm)
10.125
(25.7 cm)
13.00" R.
(33.02cm R)
16.000
(40.6 cm)
Diameter
45° TILT 6 o
10.125 6 o TILT
STOP
STOP
(25.7 cm)
BDC
The luminaire head tube is installed through a hole in the side of the
stanchion. The luminaire head rotates 348 degrees from stop to stop.
Allow at least eight inches (203mm) clearance behind the luminaire
head for lamp removal and replacement.
WARNING: Do Not install the luminaire stanchion up
side down. The internal electronics are designed to be
mounted in an upright position. Serious injury may result
if stanchion is mounted incorrectly.
8.0
27.50"
(69.85cm)
19.50"
AR500 SIDE
IM-S
