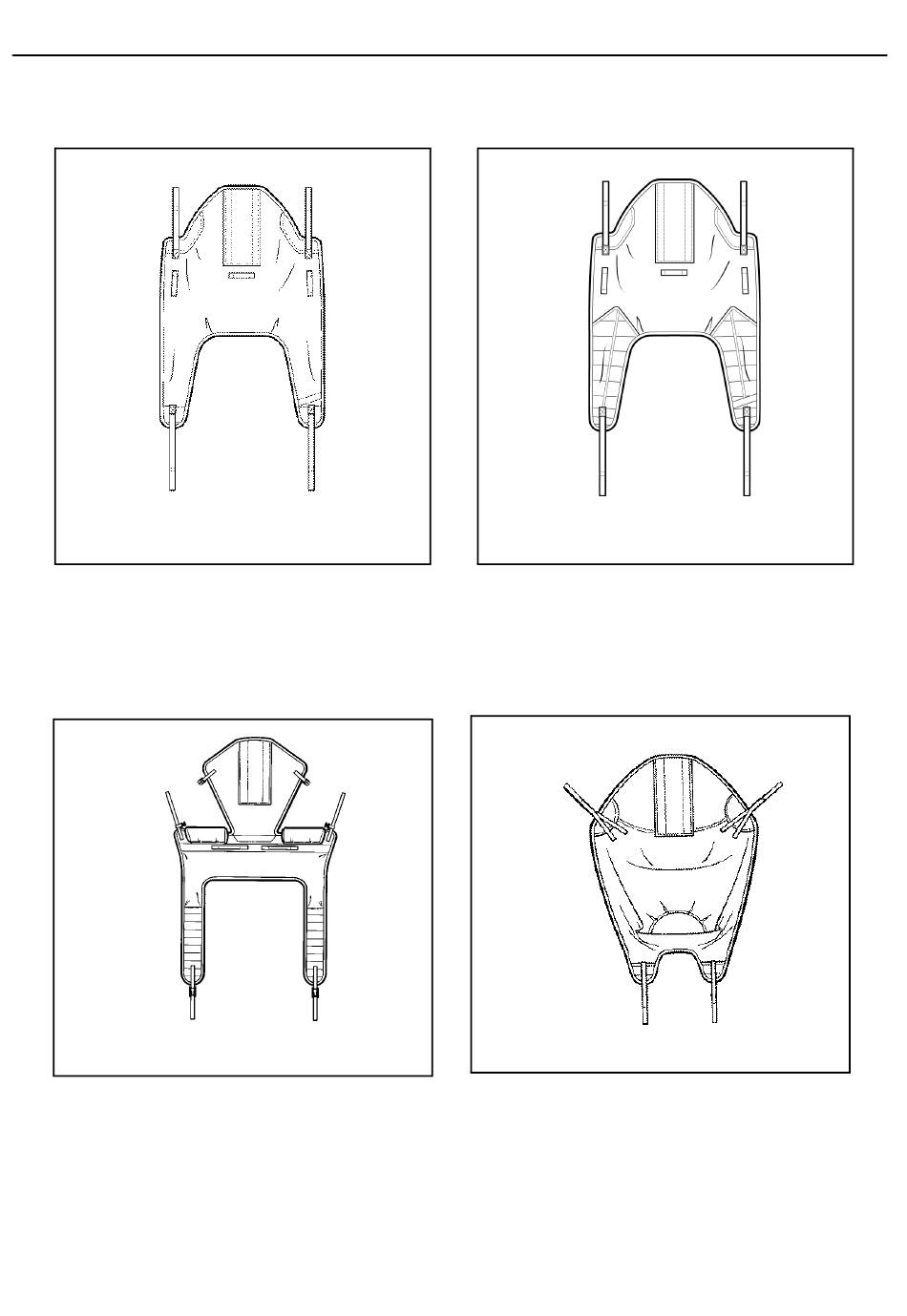

Loop Slings
Unpadded loop sling
This sling has no padding in the leg area and is
easier to apply to patients with skeletal issues such
as contractures and curvatures of the spine. These
slings are commonly used on people who are in
moulded wheelchairs.
Loop toilet sling
Used for toileting dressing and undressing patients.
The padded arm supports provide the comfort and
support, which is lost when providing good access
to the patient's perineum area. Leg supports are
padded for extra comfort but again are narrower to
allow clothing to be removed.
MAA1211-xx
MAV1848
MAV1816
Padded loop sling
Padding adds a level of comfort to the leg area of
the slings. The Padding also helps to prevent the
material roping and creasing under legs.
MAV7123
Loop amputee sling
Used for Bilateral leg amputee patients with above
knee or total hip. The design requires the patient to
be log rolled onto the sling while on the bed or
rolled from side to side in a chair. The aperture does
not allow toileting
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Arjo MAV1816
Summary of Contents for Arjo MAV1816
- Page 1 Loop Slings MAA1211-xx MAV1816 Unpadded loop sling Padded loop sling This sling has no padding in the leg area and is Padding adds a level of comfort to the leg area of easier to apply to patients with skeletal issues such the slings.
- Page 2 Loop Slings MAV1852 MAV1857 Right leg single amputee loop sling Left leg single amputee loop sling Used for Left single leg amputee patients above, Used for Right single leg amputee patients above, below or total hip. The larger leg piece provides below or total hip.
- Page 3 Standing and Raising Slings- with loop and lock Allow the patient to hold the handgrips, with their If the Lifter is not already in close proximity to the arms resting on the Arc-Rest. This will not apply if patient bring it to the patient as described fitting the sling around the patient before the lifter previously.
- Page 4 Standing and Raising Slings- with loop and lock Operate the lift button on the handset or dual Detail view showing cords & cleats control panel to raise the patient to a suitable and comfortable height for the particular function, e.g. transportation, toileting with commode, etc.
- Page 5 Standing and Raising Slings- with loop and lock using the control handset or dual control panel. When the patient is seated in the new position, and you wish to remove the sling. Pull each cord up from the locking cleats and slacken the cords sufficiently to release the Loop LockTM fitting, and then remove the cords from the sling.
- Page 6 Loop Slings PADDED LOOP SLING WITH HEAD SUPPORT LOOP SLING WITH HEAD SUPPORT Order ref Size Order ref Size MAV1816 Small MAA1211-S Small MAV1817 Medium MAA1211-M Medium MAV1818 Large MAA1211-L Large MAV1819 Extra Large MAA1211-XL Extra Large LOOP MESH SLING...
- Page 7 Bariatric Slings BARIATRIC LOOP PADDED SLING SWL BARIATRIC LOOP DIVIDED LEG HAMMOCK 409KG/900LBS SLING SWL 409KG/900LBS Order ref Size Order ref Size MAV1836 Medium MAV1895 Medium MAV1837 Large MAV1896 Large MAV1839 X Large MAV1897 X Large MAV1840 Extra Extra Large MAV1898 Extra Extra Large BARIATRIC LOOP BASIC PADDED SLING SWL...
