CAUTION! When installing or removing the ribbon cable, ensure the power is disconnected
on the Alveo card, host and server computers. Ensure proper ESD protection is followed. Refer
to Preventing ESD Damage

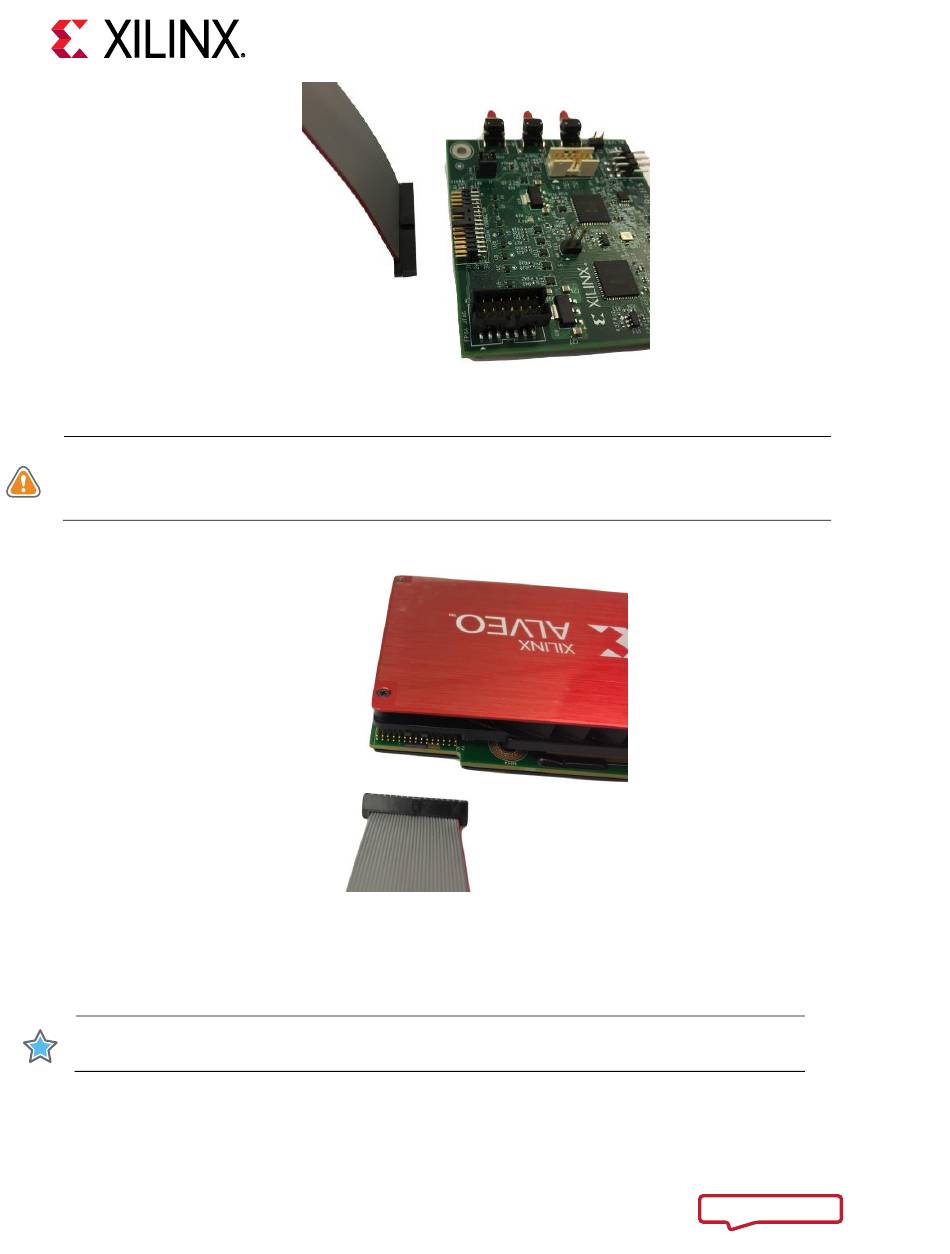

Figure 4: Aligning Ribbon Cable to Alveo Maintenance Connector Port
When attaching the cable, apply gentle pressure and ensure the cable has a tight connection.
IMPORTANT: Do not apply excessive force when connecting the ribbon cable as the
connector pins can be damaged or bent.
Alveo Programming Cable User Guide
UG1377 (v2019.1) September 17, 2019
Figure 3: Connecting Ribbon Cable to Debug Connector
for guidelines.
