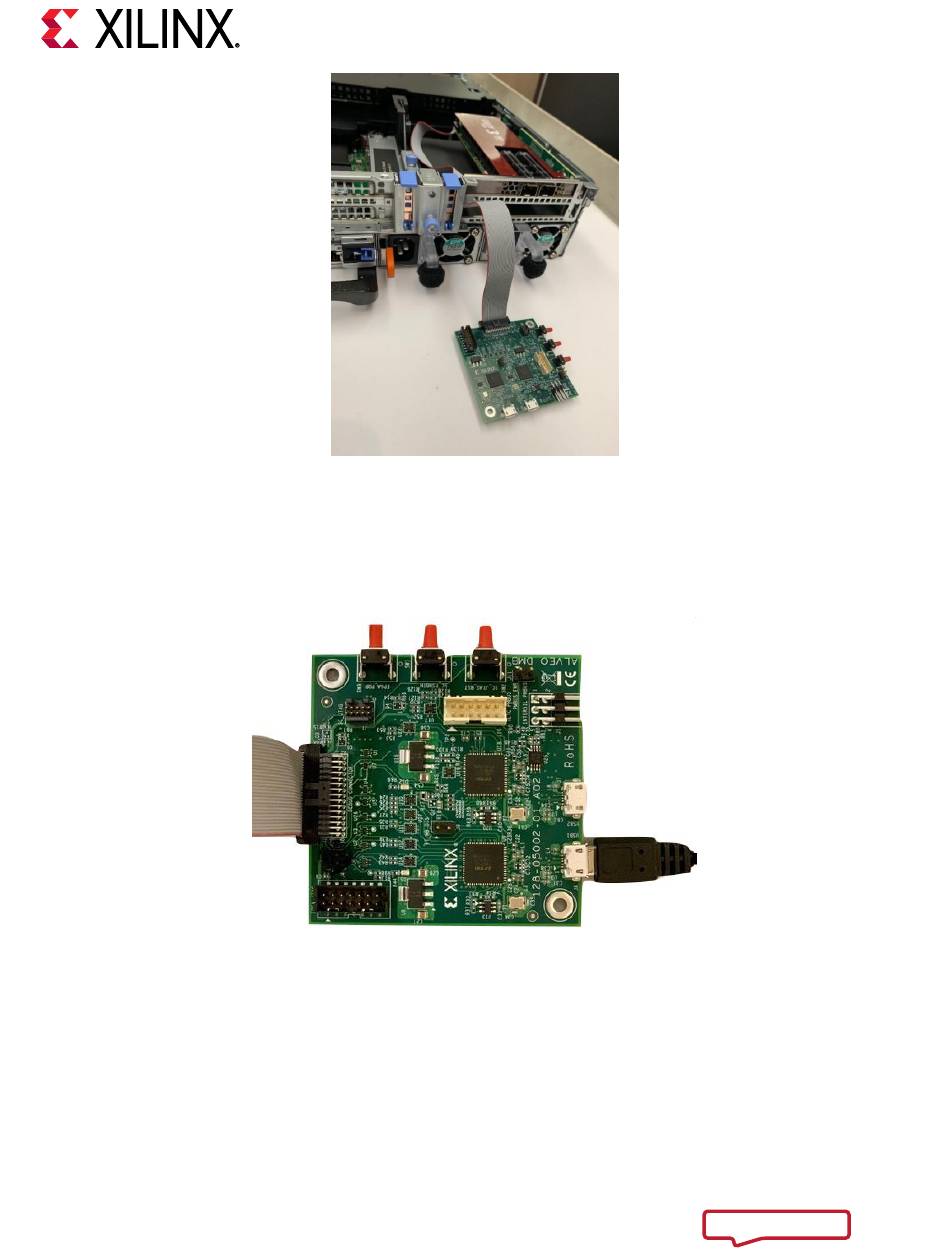

Figure 6: Installed Alveo Card Connected to Alveo Programming Module – Side View
5. Replace the server cover.
6. Attach the micro-USB cable to USB Port 1 of the Alveo Programming Module. An image of both the
ribbon (on the left side) and USB connected (on the right side) is shown below.
Figure 7: Alveo Programming Module with Ribbon and USB Cables Connected
7. Guide the other end of the micro-USB cable to a location that is accessible by the host
computer/laptop with Vivado installed.
The Alveo Programming Module is successfully installed and the server can now be powered on.
Alveo Programming Cable User Guide
UG1377 (v2019.1) September 17, 2019
11
Send Feedback
