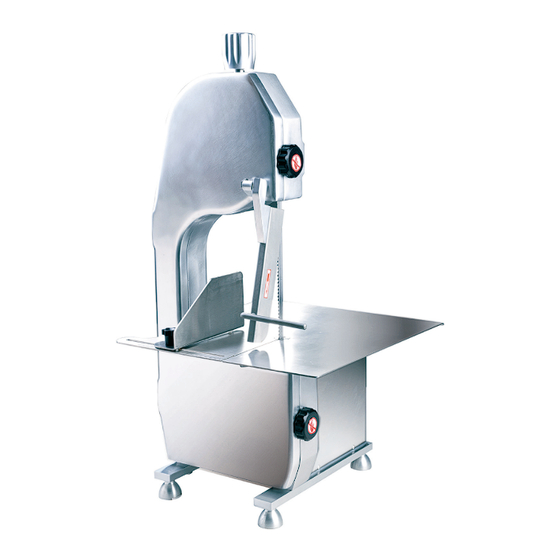

65" BLADE TABLETOP
BUTCHER SAW
INSTRUCTION MANUAL
#554BSSW65AL
04/2019
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
WARNING
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and keep them close at hand so they can be read when
required or used to assist in future servicing.
1
Advertisement
Table of Contents
Summary of Contents for Backyard Pro 554BSSW65AL
- Page 1 65” BLADE TABLETOP BUTCHER SAW INSTRUCTION MANUAL #554BSSW65AL 04/2019 Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety WARNING rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and keep them close at hand so they can be read when...
-
Page 2: Technical Details
Warnings WARNING Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. TECHNICAL DETAILS Motor 110V/60Hz/1HP (750W) -
Page 3: General Safety Warnings And Precautions
Warnings GENERAL SAFETY WARNINGS AND PRECAUTIONS Helpful Hints • KEEP WORK AREA CLEAN AND DRY. Cluttered, damp or wet work areas can cause injuries. • KEEP CHILDREN AWAY FROM WORK AREA. Do not allow children to handle this product. • STORE IDLE EQUIPMENT. When not in use, tools and equipment should be stored in a dry location to prevent rust. -
Page 4: Specific Product Warnings And Precautions
Warnings SPECIFIC PRODUCT WARNINGS AND PRECAUTIONS • GROUND THIS PRODUCT. The electrical power cord • for this product is equipped with a grounded • 3-prong plug. Never remove the grounding prong or modify the plug in any way. Do not use adapter plugs with this product. - Page 5 Warnings CAUTION ALWAYS WEAR HEAVY-DUTY GLOVES WHEN HANDLING AND ADJUSTING THE SAW BLADE. • ALLOW THE SAW BLADE TO REACH FULL SPEED BEFORE FEEDING MEAT INTO IT. When turning it off, allow the saw blade to spin down and stop on its own. •...
- Page 6 General Information and Instructions ASSEMBLY AND OPERATON INSTRUCTIONS BEFORE USE When unpacking, checking to make sure all parts shown are included. INSTALLATION (See Fig 1) 1. The tabletop butcher saw is fully assembled and is ready to be used right out of the box. 2.
- Page 7 General Information and Instructions OPERATION INSTRUCTIONS 1. When you stand by the machine, please put the meat between the saw blade and the safety fence (#38). Control the safety fence with your right hand and the meat with the left hand. Then use the handle of safety fence to guide the blade through the meat.
-
Page 8: Cleaning, Inspection, And Maintenance
General Information and Instructions CLEANING, INSPECTION, AND MAINTENANCE WARNING Always be as thorough as possible when cleaning and sanitizing components. Any parts exposed to raw meat may harbor or develop bacteria that can cause illness or death. 1. Do not introduce water into the electric motor through the motor vents. 2. -
Page 9: Exploded Parts List
General Information and Instructions EXPLODED PARTS LIST PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY. Face Plate Circlip for Top Shaft Inner Hexagon Screw Flat Washer Circlip for Shaft Spring Scrap Tray Tension Knob Tail Edge Bottom Plating Pin 4*9 Hinge Ball Bearing Angle Steel... - Page 10 General Information and Instructions EXLODED PARTS DIAGRAM...
