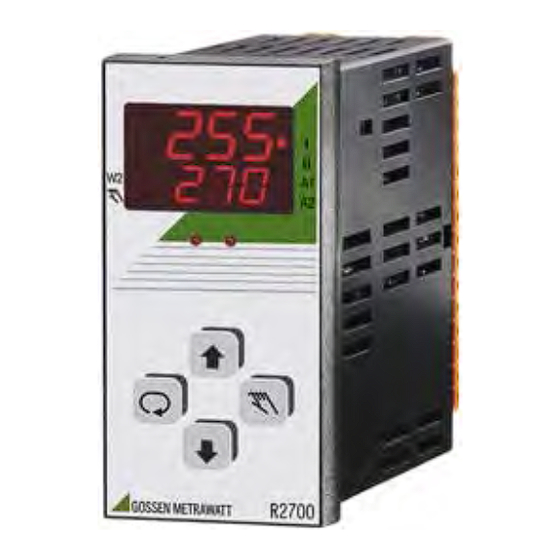

Gossen MetraWatt R2700 Operating Instructions Manual

Compact controllers and temperature limiters
Hide thumbs Also See for R2700:
Table of Contents

Advertisement

Quick Links

Download this manual

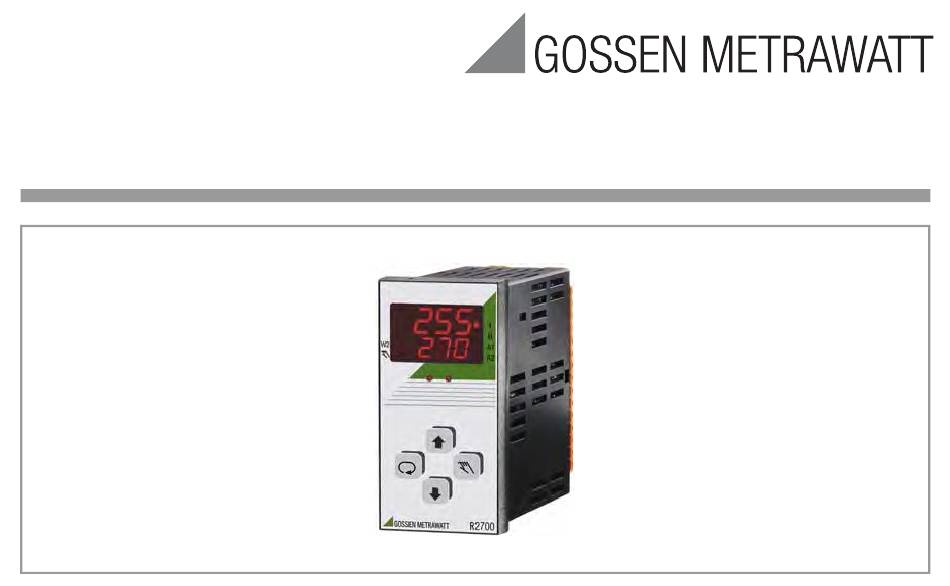

Operating Instructions
R2700
3-349-383-03
Compact Controllers and Temperature Limiters
20/6.18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R2700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gossen MetraWatt R2700

Summary of Contents for Gossen MetraWatt R2700

  • Page 1 Operating Instructions R2700 3-349-383-03 Compact Controllers and Temperature Limiters 20/6.18...

  • Page 3: Table Of Contents

    Error Acknowledgement ..............49 Relay Outputs for Actuating Signals ..........23 Error mask ..................50 Actuator Output for Contactor ............24 Replacing an R2600 Controller with an R2700 Controller ....52 Water Cooling .................24 Technical Data ................54 Extra derivative action for cooling ............24 CompactConfig Configuration Tool ...........

  • Page 4: Safety Features And Precautions

    R2700–4 Meanings of Symbols on the Instrument Safety Features and Precautions The R2700 controller is manufactured and tested in accordance with safety Indicates EC conformity regulations IEC 61010-1 / DIN EN 61010-1 / VDE 0411-1. If used for its Continuous doubled or intended purpose, the safety of the user and of the device is assured.

  • Page 5: Maintenance

    Return and Environmentally Sound Disposal This address is only valid in Germany. Please contact our representatives The R2700 is a category 9 product (monitoring and control instrument) in or subsidiaries for service in other countries. accordance with ElektroG (German electrical and electronic device law).

  • Page 6: Device Identification

    GMC-I Messtechnik GmbH R2700–6 Device Identification Feature Designation Compact controller, 96 x 48 mm, IP 67, with self-tuning, 2 setpoint and 2 alarms, R2700 Controller Type Outputs Two-step, three-step, step-action controller 2 transistor, 2 relay Two-step, three-step, step-action controller 2 transistor, 4 relay...
  • Page 7 85 ... 265 V AC, 48 ... 62 Hz 20 to 30 V DC Connectors Standard Connection at rear Data Interface None RS 485 Profibus DP Configuration Default settings Configured per customer requirements Operating Instructions German English Italian French None GMC-I Messtechnik GmbH R2700–7...

  • Page 8: Mechanical Installation / Preparation

    2  0.75 square mm Figure 1: Housing Dimensions and Panel Cutout The R2700 controller is intended for installation to a control panel. The installation location should be vibration-free to the greatest possible extent. Aggressive vapors shorten the service life of the controller.
  • Page 9 + out1 + out2 20 mA out 3 10 V 20 mA out 4 10 V B1, B3, B4 B2, B5 A3, A6 Heating Cur- Relay rent Transf. Outputs Measurement Input 1 Meas. Input 2 Relay Outputs GMC-I Messtechnik GmbH R2700–9...

  • Page 10: Operation

    GMC-I Messtechnik GmbH R2700–10 Operation Figure 3: Controls Actual Value Switching output for heating active Switching output for cooling active Setpoint / heating current / manipulating factor (operating level) Alarm 1 active Setpoint 2 active Alarm 2 active Manual operation...

  • Page 11: Disabling Modifications

    However, self-tuning can always be started via infrared or bus interface! Performance after Activating Auxiliary Voltage LED Segment Test Designations Actual Value Approx. 1.5 s Approx. 1.5 s Approx. 1.5 s Firmware Version Setpoint or oFF GMC-I Messtechnik GmbH R2700–11...

  • Page 12: Operating Flow Chart

    GMC-I Messtechnik GmbH R2700–12 Operating Flow Chart OPERATING LEVEL Automatic Operation Actual Actual Actual Actual Actual Actual Setpoint Ht. Current Manip. Actual Setpoint can only be With differential With heat current With program set here controller only monitoring only controller only...

  • Page 13: Automatic Operation / Off

    If the key is configured to – Step-action controller: Switching outputs can be adjusted directly with “more” or manual / automatic “less” by pressing the up and down scroll keys. GMC-I Messtechnik GmbH R2700–13...

  • Page 14: Configuration

    GMC-I Messtechnik GmbH R2700–14 Configuration Press and hold simultaneously Configuration Display Selection Standard Comment tYP. j tYP. v Sensor type Typ J tYP. L tYP. C tYP. K tYP. - – tYP. b Pt 1 Pt100 SEnS tYP. S ni 1...
  • Page 15 Display (only In 1) SWit Switch controller active (only for B3, B5 and In 2) set2 / SET3 Parameter set conversion baCk Backup function stat Binary Inputs static input StAt dynamic, switching by key GMC-I Messtechnik GmbH R2700–15...
  • Page 16 GMC-I Messtechnik GmbH R2700–16 Configuration Display Selection Standard Comment out1 switching output, Controller 4 Controller 3 Controller 2 Controller 1 phlt Program pause prun Program running No function HEAt Heater, more heat 0ut1 with step-action controller HEAt See page 23...
  • Page 17 Relative / absolute AL 2 nSvP / SvP Alarm 2 Start-up inhibiting off / on nSUP AL 2 nSto / Stor Alarm 2 Alarm memory off / on nSto no / yes Limiter See page 44 GMC-I Messtechnik GmbH R2700–17...
  • Page 18 GMC-I Messtechnik GmbH R2700–18 Configuration Display Selection Standard Comment 4121 / AC Heating current with GTZ4121/ HCUR 4121 only for designation F2 acquisition Current transformer 50 mA AC no / yes Heating circuit monitoring See page 46 no / yes...
  • Page 19 (K9) is saved to the user pset Put1 Save active configuration settings. All settings as user configuration 1 are overwritten during Put2 loading! Put3 Put4 Save active configuration as user configuration 4 Universal key = 42 GMC-I Messtechnik GmbH R2700–19...

  • Page 20: Controller Types

    GMC-I Messtechnik GmbH R2700–20 Controller Types Controller Type Applications Measure (Cout = MEAS) This configuration is intended for temperature monitoring. Limit value monitoring can be configured. System deviation is not used for any other purposes. Actuator (Cout = POW) Same as controller type 1 (measure) In addition, the actuator manipulating factor is read out with the actuating cycle.

  • Page 21: Controller Sorts

    Mean value controller (C In = MEAn) The mean value = (1 Limit value monitoring refers to the mean value and not to the two actual values. GMC-I Messtechnik GmbH R2700–21...

  • Page 22: Conversion Of Parameter Sets

    GMC-I Messtechnik GmbH R2700–22 Conversion of Parameter Sets If the binary input is configured to parameter set conversion (SEt2 / SEt3), parameter set 2/3 is loaded when the contact is closed, and paramter set 1 is loaded when the contact is open. The active configuration is overwritten in each case. The W2 LED lights up when parameter set 2 and/or 3 is active.

  • Page 23: Configuring The Switching Outputs And The Continuous Output

    If, in the case of device variant A1 or A4, two relay outputs are required for the actuating signals, for example in the case of three-step or step-action control, the alarm outputs can be exchanged with the actuator outputs. The Out = XCh configuration (see page 16) exchanges the functions of out1 with A1 and out2 with A2. GMC-I Messtechnik GmbH R2700–23...

  • Page 24: Actuator Output For Contactor

    GMC-I Messtechnik GmbH R2700–24 Actuator Output for Contactor If, during ascertainment of control parameters (manual optimization or self-tuning), a cycle time results which is significantly shorter than advisable for the service life of the contactor, cycle time can be increased to the limit of system controllability by configuring the actuating outputs for contactor control (rELA = YES).

  • Page 25: Configuration Of The Controller With Continuous Output

    The targeted setpoint is displayed (not the currently valid setpoint) with an r at the left-hand digit. Limit values Relative limit values make reference to the ramp, not the targeted setpoint. As a rule, no alarm is triggered for this reason. GMC-I Messtechnik GmbH R2700–25...

  • Page 26: Adaptive Measured Value Correction

    GMC-I Messtechnik GmbH R2700–26 Adaptive Measured Value Correction If a control loop is interfered with by periodic disturbance of the actual value, control can be improved by activating adaptive measured value correction. Periodic disturbance is thus suppressed, without impairing the controller’s ability to react to system deviations. Correction is adapted to the oscillation amplitude of the disturbance to this end, and only the mean value is forwarded to the controller.

  • Page 27: Suppression Of Periodic Disturbances

    Periods can be selected within a range of 0.3 to 25 seconds, and the filter remains inactive for other setting values. Due to the fact that this suppression filter influences control dynamics, ascertainment of control parameters by means of self-tuning or manual optimization has to be performed while oscillation suppression is active. GMC-I Messtechnik GmbH R2700–27...

  • Page 28: Hot-Runner Control

    GMC-I Messtechnik GmbH R2700–28 Hot-Runner Control By configuring the switching output for heating as a hot runner (Outx = Hotr), the manipulated variable is read out as a rapidly pulsating signal, i.e. actuation cycle time is 0.1 seconds regardless of the actuation cycle time parameter setting.

  • Page 29: Feed-Forward Control

    Example: If a machine requires an average of 70% heating power during production operation, but only 10% during idle time, the difference of Y FF is set to 60%, and the binary input is only activated during production. GMC-I Messtechnik GmbH R2700–29...

  • Page 30: Parameters Configuration

    GMC-I Messtechnik GmbH R2700–30 Parameters Configuration Press and hold X1 = lower range limit, X2 = upper rang limit, MRS = X2 – X1 Parameters Display Range Standard Comments al1h Upper limit value for relay A1 al1l Lower limit value for relay A1 oFF, 1 ...
  • Page 31 HC % Current monitoring threshold for designation F2 def, 1 ... 100 % y st Manip. factor for actuation mode –100 ... 100% y ff Manip. factor for feed-forward control –100 ... 100% See page 29 GMC-I Messtechnik GmbH R2700–31...
  • Page 32 GMC-I Messtechnik GmbH R2700–32 Parameters Display Range Standard Comments y se Sensor error manipulating factor –100 ... 100% See page 48 spsv Actuation Setpoint SP L ... SP H y sv Start-up manipulating factor –100 ... 100% For hot-runner controllers...

  • Page 33: Balancing

    By setting AMPS = Auto, control is interrupted for about 1 second, heating is activated and heating current is measured and saved as the nominal value. If the value is not equal to zero, heating current monitoring is automatically activated. GMC-I Messtechnik GmbH R2700–33...

  • Page 34: Program Controller

    GMC-I Messtechnik GmbH R2700–34 Program Controller Activation At the configuration level with ProG = EnA Function The current setpoint is determined exclusively by the program. Eight programs with twelve segments each are saved to the controller and can be selected.
  • Page 35 The sequence can be controlled in the status display with the help of the up and down scroll keys, if it has not been configured to binary inputs. In order to avoid erroneous settings, changes must be acknowledged within 5 seconds with the key. The change can be discarded by pressing the key. GMC-I Messtechnik GmbH R2700–35...

  • Page 36: Program Entry

    GMC-I Messtechnik GmbH R2700–36 Program Entry Press and hold simultaneously Configuration Display Selection Standard Comment no. 1 Program selection Load program 1 no. 1 ... no. 8 Load program 8 Put1 Save current program ProG to program 1 ...Put8 Save current program...
  • Page 37 Control track 1 Control track 2 The pertinent program: Segment Duration MS 1...7 (HM 1...7 ) 0:40 0:30 0:20 0:50 0.00 0:50 Setpoint SP 1...6 — Tracks tr 1...6 ---1 ---1 ---- --2- --2- --2- — GMC-I Messtechnik GmbH R2700–37...

  • Page 38: Manual Optimization

    GMC-I Messtechnik GmbH R2700–38 Manual Optimization Parameters Pb I, Pb II, tu and tc are determined by means of manual optimization in order to maintain optimized controller dynamics. A start-up test or an oscillation test is performed to this end.
  • Page 39 Step-action controller If manipulating factor limiting was active, the proportional band must be corrected: Y H positive: Pb I multiply by 100% / Y H Y H negative: Pb II multiply by -100% / Y H GMC-I Messtechnik GmbH R2700–39...
  • Page 40 GMC-I Messtechnik GmbH R2700–40 Performing the Oscillation Test If a start-up test is not possible, for example if neighboring control loops influence the actual value too greatly, if the switching output for cooling must be active in order to maintain the actual value (cooling operating point), or if optimization is required directly to the setpoint for any given reason, control parame- ters can be determined by means of sustained oscillation.
  • Page 41 – For 3-step, split range and step-action controllers, the dead band can be increased from dbnd = 0, if control of the switching outputs (or continuous output) changes too rapidly, for example due to an unsteady actual value. GMC-I Messtechnik GmbH R2700–41...

  • Page 42: Self-Tuning

    GMC-I Messtechnik GmbH R2700–42 Self-Tuning Self-tuning is used to optimize controller dynamics, i.e. the Pb I, Pb II, tu and tc parameters are set. Preparation – Complete configuration must be performed before self-tuning is started. Current Start – The setpoint value is adjusted to the value which is required after self-tuning.

  • Page 43: Data Logger

    After the ring buffer has been filled to capacity with 3600 entries, the oldest values are deleted as new ones are recorded. • Entries can only be read out via the bus interface or the infrared interface. See the interface description for detailed information. GMC-I Messtechnik GmbH R2700–43...

  • Page 44: Limit Value Monitoring

    GMC-I Messtechnik GmbH R2700–44 Limit Value Monitoring Alarm Relay, NO Contact Alarm Relay, NC Contact Hysteresis adjustable with HYSt parameter Setpoint Actual Value Relative Limit Values AL L AL H AL L AL H Absolute Limit Values Start-up inhibiting: Alarm suppression is active during start-up (configuration: ALx = SUP) until temperature has exceeded the lower limit level for the first time.

  • Page 45: Heating Current Monitoring

    Heater phase current is entered for this parameter. AMPS can be set to Auto for automatic adjustment with the heater switched on. The measured current value is saved to memory. Activation Parameter AMPS not set to oFF. GMC-I Messtechnik GmbH R2700–45...

  • Page 46: Heating Circuit Monitoring

    GMC-I Messtechnik GmbH R2700–46 Heating Circuit Monitoring – Function – Can be set to active or inactive with the LbA configuration – Without external transformer, without additional parameters – Assumes correct optimization of tu and Pb I control parameters! Due to the fact that self-tuning generates other results in certain cases when heating circuit monitoring is activated, heat- ing circuit monitoring must be activated before self-tuning is started.

  • Page 47: Alarm History

    After the ring buffer has been filled to capacity with 100 entries, the oldest entry is deleted each time a new one is recorded. • Entries can only be read out via the bus interface or the infrared interface. See the interface description for detailed information. GMC-I Messtechnik GmbH R2700–47...

  • Page 48: Error Messages

    GMC-I Messtechnik GmbH R2700–48 Error Messages Responses in the event of an error: 1. Alarm output A1 is activated; its performance is determined by the configuration (see page 17). 2. LED A1 blinks at all levels, but the error message only appears at the operating level (upper display blinks).

  • Page 49: Error Acknowledgement

    4. Close the control loop: Check the sensor, the actuators and the heater for correct functioning. Check sensor-heater assignments (wiring). Correctly optimize control parameters tu and Pb I. Error Acknowledgement Errors are acknowledged by pressing the key and acknowledging the Quit AL display within 5 seconds with the key. GMC-I Messtechnik GmbH R2700–49...

  • Page 50: Error Mask

    GMC-I Messtechnik GmbH R2700–50 Error mask With the default setting (configuration A1M1 = def), relay output A1 reads out alarms from limit value monitor 1, as well as all other errors (sensor errors, heating current errors etc.), and relay output A2 only reads out alarms from limit value monitor 2.
  • Page 51 Blinks 0100 upper limit value exceeded Blinks 0200 Parameter impermissible for entry via interface – 0800 Heating circuit error 1000 Self-tuning start-up error no t – 2000 Self-tuning error or abort tE X GMC-I Messtechnik GmbH R2700–51...

  • Page 52: Replacing An R2600 Controller With An R2700 Controller

    8x4x may also be 9x4x, Ax4x, bx4x. • When configured as a step-action controller (R2600, features A2, A4), the configuration of the corresponding output is not Outx = CooL in the case of the R2700, but rather Outx = HcLo.
  • Page 53 Converting Parameters In the case of the R2700, the proportional bands are specified in the unit of measure of the controlled variable, instead of as a percentage of the measuring range span as is the case with the R2600. Conversion is accomplished as follows: Pb (R2700) = Pb (R2600) x MRS (R2600) / 100%.

  • Page 54: Technical Data

    GMC-I Messtechnik GmbH R2700–54 Technical Data Electrical Safety Ambient Conditions Safety class II, panel-mount device per DIN EN 61010-1, section 6.5.4 Annual mean relative humidity, no condensation 0 C ... + 50 C Fouling factor 2, per DIN EN 61010-1, section 3.7.3.1 and IEC 664...

  • Page 55: Compactconfig Configuration Tool

    The Z270I IR adapter is required in order to use the configuration tool. Further information regarding accessories and the latest version of the software, which can be downloaded free of charge, are available on the Internet at: http://www.gossenmetrawatt.com ( Products  Controllers; Control Systems  Compact Controller  R2700) GMC-I Messtechnik GmbH...
  • Page 56 Edited in Germany • Subject to change without notice • PDF version available on the Internet Phone +49 911 8602-111 GMC-I Messtechnik GmbH +49 911 8602-777 Südwestpark 15 E-Mail info@gossenmetrawatt.com 90449 Nürnberg • Germany www.gossenmetrawatt.com...
