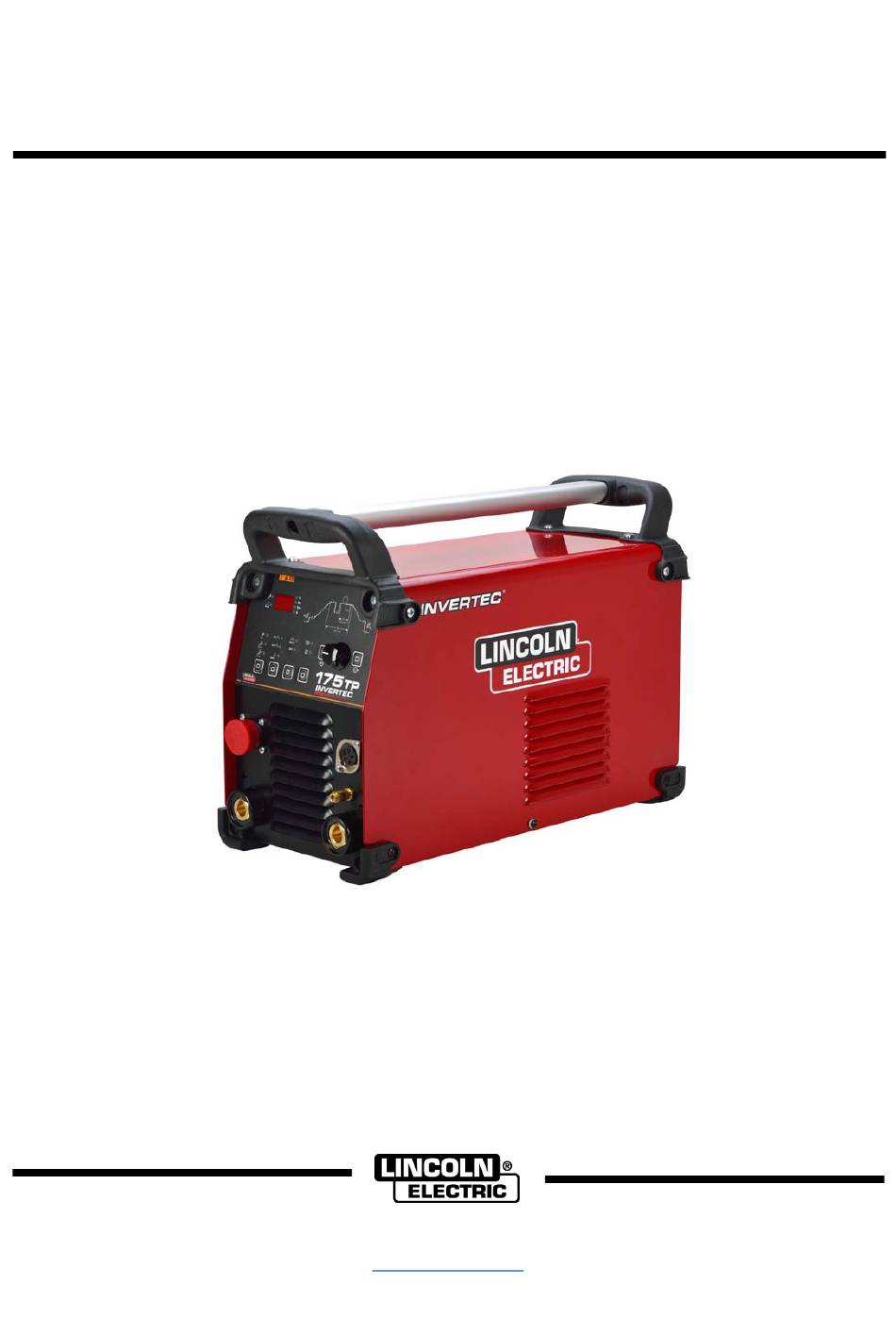

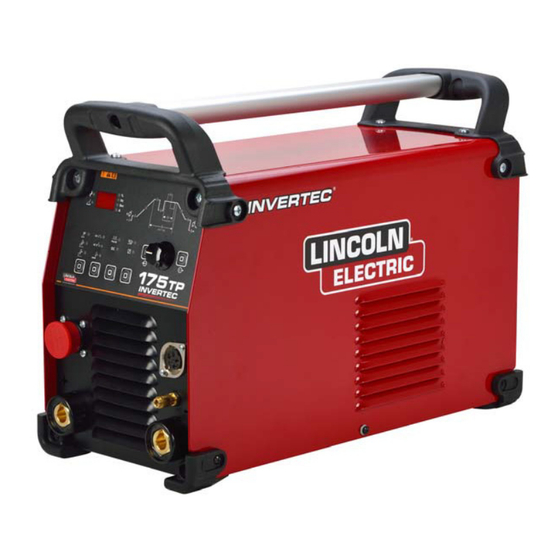

  • Page 1 800036917 05/2019 REV02 INVERTEC 175TP OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland www.lincolnelectric.eu...

  • Page 2: Table Of Contents

    12/05 THANKS! For having chosen the QUALITY of the Lincoln Electric products.  Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer.  For future reference record in the table below your equipment identification information. Model Name, Code &...

  • Page 3: Technical Specifications

    Technical Specifications PRIMARY SIDE Single phase supply 230 V Frequency 50/60 Hz Effective consumption 15 A 11 A Maximum consumption 21 A 14 A SECONDARY SIDE Open circuit voltage 50 V Peak voltage 10kV Welding current 5 A ÷ 175 A Duty cycle 25% 175 A Duty cycle 60%...

  • Page 4: Electromagnetic Compatibility (Emc)

    If any electromagnetic disturbances are detected the operator must put in place corrective actions to eliminate these disturbances with, if necessary, assistance from Lincoln Electric. This equipment is compliant with EN 61000-3-12 and EN 61000-3-11.

  • Page 5: Safety

    Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation.
  • Page 6 SAFETY MARK: This equipment is suitable for supplying power for welding operations carried out in an environment with increased hazard of electric shock. CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the correct shielding gas for the process used and properly operating regulators designed for the gas and pressure used.

  • Page 7: Installation And Operator Instructions

    Installation and Operator Instructions Technical description THIS CLASS A EQUIPMENT IS NOT INTENDED FOR USE IN RESIDENTIAL LOCATIONS WHERE THE Description ELECTRICAL POWER IS PROVIDED BY THE PUBLIC The system consists of a modern direct current LOW-VOLTAGE SUPPLY SYSTEM. THERE MAY BE generator for the welding of metals, developed via POTENTIAL DIFFICULTIES...
  • Page 8 Functions Front panel Picture 1 It is possible to select the desired welding functions. With each function key pressed you are selecting a welding function. IMPORTANT: VERTICAL FUNCTION KEYS DO NOT WORK DURING THE WELDING STAGE. Covered Electrode Welding MMA By pressing the function key 4 and taking the luminous indicator on symbol 1 - Picture 1 Page 6.) you can select the mode of electrode welding.
  • Page 9 TIG pressed Once the TIG mode is selected (Lift or HF), press the function key 11 - Picture 1 Page 6.) until the luminous indicator reaches the position on symbol 9 - Picture 1 Welding process profile Page 6). In this mode the current pulsates between a maximum and a minimum value and can be set up as described on reference 22: Nominal Current Welding In this section of the panel you can set up all the...
  • Page 10 Spot Time By pressing function keys 31 e 32 the luminous indicator is position at 24 - Picture 1 Page 6.); then by activating the knob 30, the time length for the spot impulse is set up in seconds. TIG The value range is between 0,1 and 10 seconds.
  • Page 11 the knob 30, the time is set up in seconds either to reach the final current welding in the Four Times mode, or to cancel the nominal current welding in the Two Times mode. The frequency can be regulated between the following ranges: ...
  • Page 12 AUTOMATIC SEQUENCE 2. Inactivity of key 31 and encoder (10 seconds); Memorise and recall program 3. Short press of key 31. The generator allows you to memorize and subsequently recall up 30 welding programs. NOTE During the recall state all keys (with the exception of the Memorise a program key 31 and the encoder) are disabled and therefore you can not change any parameter.
  • Page 13 different remote controls: with the pedal between the minimum value and the Manual Remote Control: panel setting. this mode is especially useful in combination with The microswitch in the control pedal means you can remote controls or RC-type torches, i.e. equipped start welding by simply pressing the pedal, i.e.
  • Page 14 Carry out the following operations every three (3) based on the best information in our possession at that months: time. Lincoln Electric is not in a position to warrant or  Replace any illegible labels. guarantee such advice, and assumes no liability, with ...

  • Page 15: Weee

    12/05 Part List reading instructions  Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed.  Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine.
