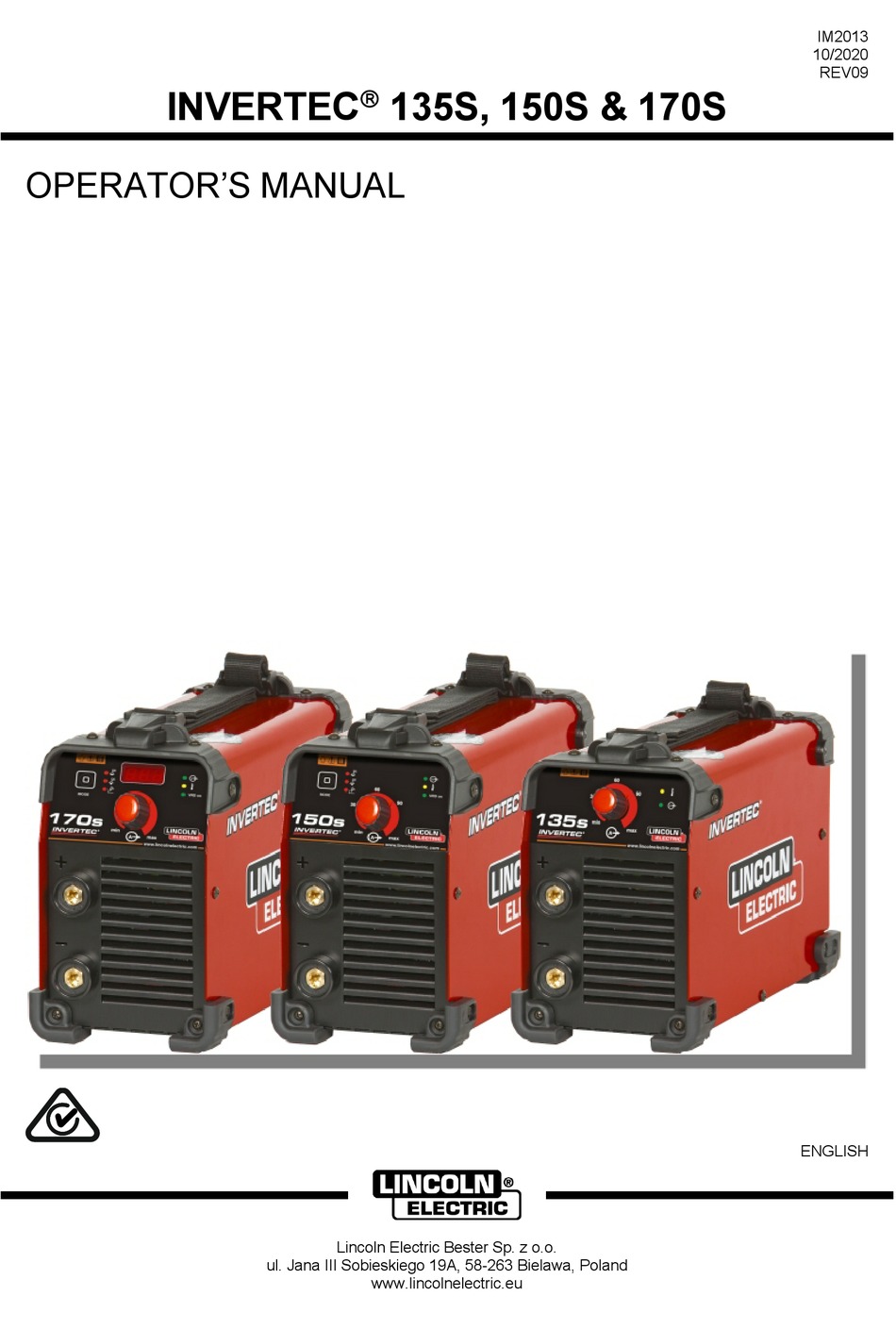

- Page 1 IM2013 10/2020 REV09 INVERTEC 135S, 150S & 170S OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland www.lincolnelectric.eu...
-
Page 2: Table Of Contents
12/05 THANKS! For having choosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code & Serial Number can be found on the machine rating plate. -
Page 3: Technical Specifications
Technical Specifications NAME INDEX INVERTEC 135S K12033-1 INVERTEC 135S PACK K12033-1-P INVERTEC 135S PACK AUS K12033-2-P INVERTEC 150S K12034-1 INVERTEC 150S PACK K12034-1-P INVERTEC 150S PACK AUS K12034-2-P INVERTEC 170S K12035-1 INVERTEC 170S PACK K12035-1-P INVERTEC 170S PACK AUS K12035-2-P... -
Page 4: Eco Design Information
ECO design information The equipment has been designed in order to be compliant with the Directive 2009/125/EC and the Regulation 2019/1784/EU. Efficiency and idle power consumption: Efficiency when max power consumption Index Name Equivalent model / Idle power consumption K12034-1 INVERTEC 150S 81,6% / - No equivalent model... - Page 5 Typical gas usage for MIG/MAG equipment: DC electrode positive Wire Wire Feeding Gas flow Material type diameter Shielding Gas Current Voltage [m/min] [l/min] [mm] Carbon, low 0,9 ÷ 1,1 95 ÷ 200 18 ÷ 22 3,5 – 6,5 Ar 75%, CO alloy steel Aluminium 0,8 ÷...
-
Page 6: Electromagnetic Compatibility (Emc)
If any electromagnetic disturbances are detected the operator must put in place corrective actions to eliminate these disturbances with, if necessary, assistance from Lincoln Electric. This equipment does not comply with IEC 61000-3-12. If it is connected to a public low-voltage system, it is responsibility of the installer or user of the equipment to ensure, by consultation with the distribution network operator if necessary, that the equipment may be connected. -
Page 7: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. - Page 8 WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding area and have a fire extinguisher readily available. Welding sparks and hot materials from the welding process can easily go through small cracks and openings to adjacent areas. Do not weld on any tanks, drums, containers, or material until the proper steps have been taken to insure that no flammable or toxic vapors will be present.
-
Page 9: Installation And Operator Instructions
Installation and Operator Instructions Read this entire section before installation or operation of It is important to check these conditions because the machine. many engine driven generators produce high voltage spikes. Operation of this machine with engine driven Location and Environment generators not conforming to these conditions is not recommended and may damage the machine. - Page 10 Allowable TIG processes: Controls and Operational Features 135S: Scratch TIG Machine Start-Up: 150S / 170S: Lift TIG When the machine is turned ON, an auto-test is executed; during this test only the Thermal LED is ON; after few Arc Force seconds the Thermal LED turns OFF and the Power ON/OFF LED lights up.
- Page 11 Please contact the nearest consumables, and cutting equipment. Our challenge is to technical service center or Lincoln Electric and report the meet the needs of our customers and to exceed their LED Status found on the machine Front Panel.
-
Page 12: Weee
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine. -
Page 13: Accessories
Accessories K10513-17-4VS TIG torch with tap, 4m. English English...
