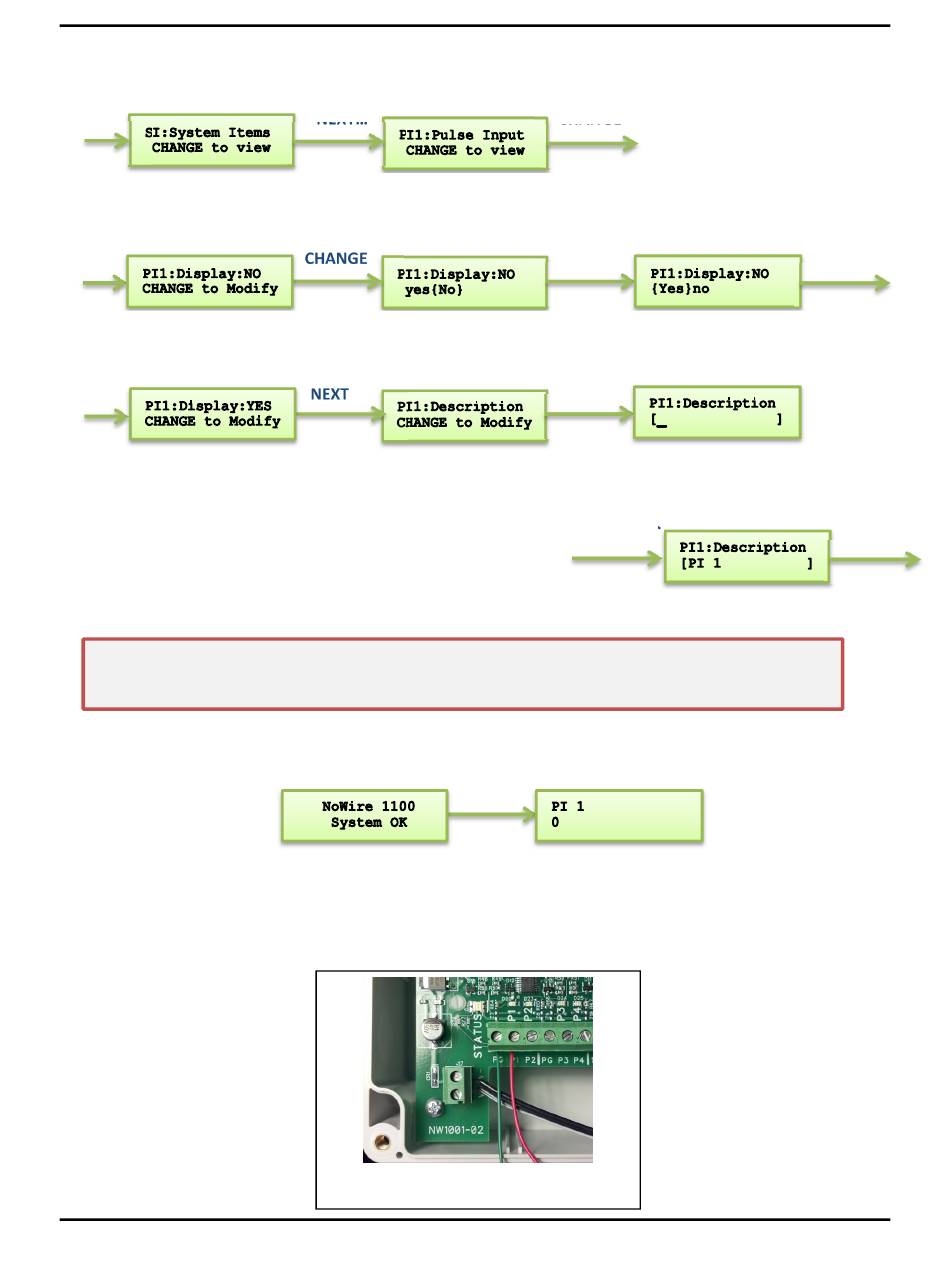

Pressing NEXT will rotate through the various menus. It rotates through the System Items, the 32 Wireless Inputs, the 4
Wired Pulse Inputs, and the 4 Wired Pulse Outputs. Press NEXT 31 times will land you on the Pulse Input #1 setup menu
item. Once there press CHANGE to setup Wired Pulse Input #1.
The first sub-menu item allows you to tell NoWire to display Wired Pulse Input #1 on the display. Press CHANGE
repeatedly to toggle between Yes and No. Once Yes is selected press BACK to save the selection.
Pressing the NEXT key will rotate through Wired Pulse Input #1's sub-menu items. Press NEXT once to modify the
Description. Press CHANGE to begin Description changes.
The CHANGE and NEXT buttons are used to modify the characters of a text
or numeric entry field. CHANGE increments the character. NEXT moves to
the next character position. Press and hold a button for rapid entry. Use
the CHANGE and NEXT buttons to enter "PI 1" for the description. When
done press BACK.
Tip: Press and hold the
Tip: Press and hold the
backwards one character. This is helpful if you rapidly scroll past the character you intended.
5. Press the BACK button 2 times to exit the setup menus. The display now alternates between the
two following screens:
The second screen displays the meter reading of Wired Pulse Input #1. If you have a meter connected to the terminal
block connection P1 and PG you would see the meter reading as pulses are received by the connected meter.
6. To simulate a meter pulse you may short the P1 and PG terminals. Each time these terminals
are connected together a pulse is recognized by NoWire and the meter reading will increment.
NoWire Model 2100
NoWire Model 2100 Installation and Operation Manual
NEXT,
NEXT...
CHANGE
NEXT
CHANGE button to rapidly move through characters to select.
BACK button and, while still holding it, press the
Touch P1 and PG together to
simulate a wired meter pulse.
Submeter Solutions, Inc., 888-64METER
CHANGE
CHANGE
CHANGE
CHANGE &
NEXT
CHANGE
PG P1
BACK
BACK
button. This moves
