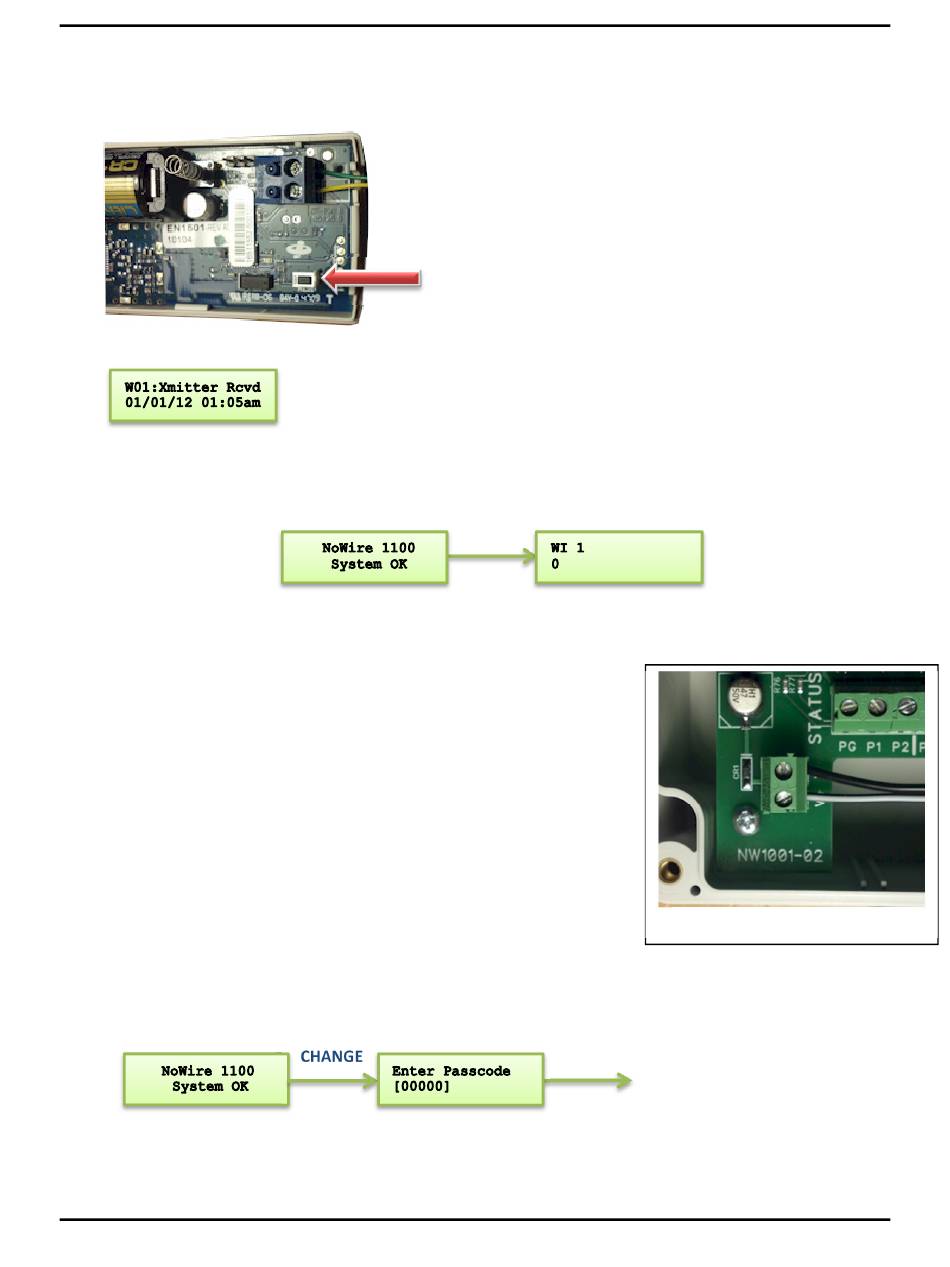

5. Open the case of the EN1501 pulse transmitter by pressing in on the right side that has the small
hole. Press the reset button to assign the transmitter. Close the transmitter case.
Press the BACK button 2 times to exit the setup menus. The display now alternates between the two
following screens:
The second screen displays the meter reading of Wireless Input #1. If you had a meter connected to the terminal block
of the EN1501 pulse transmitter you would see the meter reading as pulses are received by the connected meter.

3.2 Configuring a Wired Input Pulse Meter

1. You will need the NoWire 1100, a 12VDC power supply, and a
small screw driver.
2. Remove the NoWire cover and connect the 12VDC power
supply positive and negative wires to the V+ and V- terminals of
the terminal block in the bottom left corner of the circuit
board.
3. Plug the 12VDC power supply into a 120V outlet and wait for
NoWire to power up and go through its self checks.
4. Follow the steps below. The text between the LCD screen images is the NoWire button to press
to move to the next screen.
NoWire Model 2100
NoWire Model 2100 Installation and Operation Manual
Reset
Button
This screen indicates when the transmitter reset signal was received.
You may press NEXT multiple times to see other information about the transmitter.
CHANGE
The setup menus are password protected. The factory default password is 00000 and
may be changed in the System Items sub-menu. Pressing NEXT will get you into the
setup menus.
Submeter Solutions, Inc., 888-64METER
12VDC power supply connection.
NEXT
Page 6
