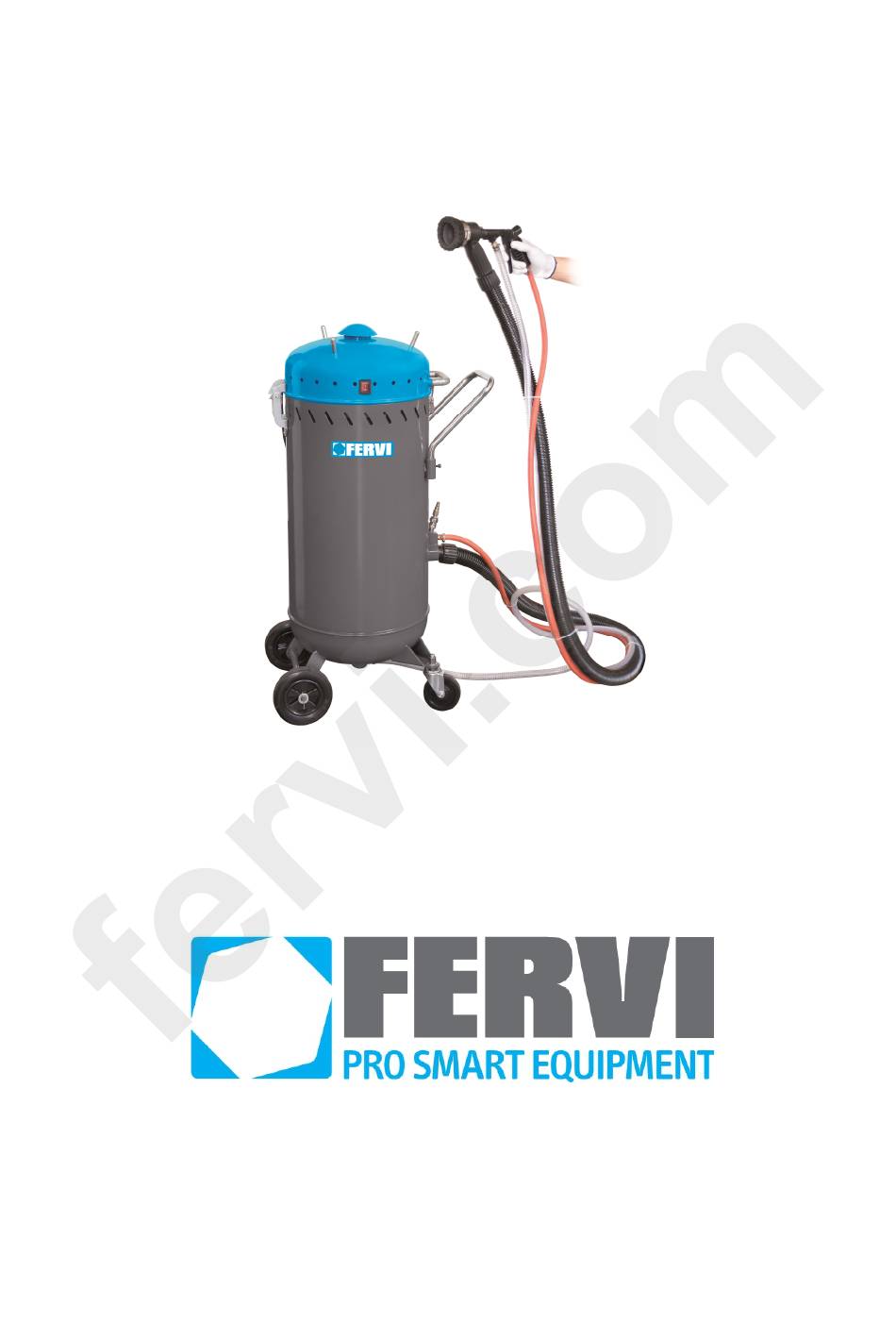

- Page 1 USE AND MAINTENANCE MANUAL Sabbiatrice per esterno con aspiratore Art. 0462 TRANSLATION OF THE ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of issuance and listed herein; On the other hand, the machine may also be subject to important technical changes in the future, without the Manual being updated. Therefore, contact FERVI for information about modifications that may have been implemented. REV. 1...
-
Page 3: Table Of Contents
MACHINES AND ACCESSORIES CONTENTS INTRODUCTION ..................5 Preface..........................6 SAFETY WARNINGS .................. 7 General safety rules for machine equipment..............7 Safety rules for electrical machine-tools ...............9 Technical Support ......................9 Other provisions ......................9 TECHNICAL SPECIFICATIONS ..............10 DESCRIPTION OF THE MACHINE ............. 11 Main parts ........................ - Page 4 MACHINES AND ACCESSORIES REPLACEMENT PARTS................26 TROUBLESHOOTING ................28 DISPOSAL OF PARTS AND MATERIALS ..........28 Page 4 of 28...
-
Page 5: Introduction
The purpose of this manual is to provide the knowledge necessary for the use and maintenance of the machine Sabbiatrice per esterno con aspiratore Art. 0462 and create a sense of responsibility and an understanding of the capabilities and limitations of the means entrusted to the operator. -
Page 6: Preface
MACHINES AND ACCESSORIES RAPHIC REPRESENTATION OF SAFETY OPERATIONAL AND RISK WARNINGS The following boxes are designed to attract the attention of the reader / user for the proper and safe use of the machine: Pay Attention This highlights behavioural rules to prevent damage to the machine and/or the occurrence of dangerous situations. -
Page 7: Safety Warnings
MACHINES AND ACCESSORIES 2 SAFETY WARNINGS 2.1 General safety rules for machine equipment Risks associated with using the machine DO NOT underestimate the risks associated with using the machine and concentrate on the work in progress. Risks associated with using the machine Despite the implementation of all the safety devices for safe use of the machine, it is necessary to take note of all the requirements for the prevention of accidents reported in various parts of this manual. - Page 8 MACHINES AND ACCESSORIES 7. Do not perform tasks on the machine other than those for which it was designed. Only use the machine in the manner in which it was intended, as described in this instruction manual. 8. Work without disturbances. 9.
-
Page 9: Safety Rules For Electrical Machine-Tools
MACHINES AND ACCESSORIES 2.2 Safety rules for electrical machine-tools Risks associated with using the machine 1. Do not modify the electrical system in any way. Any attempt in this regard may jeopardize the operation of electrical devices, thus causing malfunction or accident. 2. -
Page 10: Technical Specifications
MACHINES AND ACCESSORIES 3 TECHNICAL SPECIFICATIONS Model Art. 0462 Weight (kg) Power supply voltage (V) Power supply frequency (Hz) Vacuum power (W) 1,200 0.65 – 0.85 MPa Operating pressure (6.5 – 8.5 bar) Air consumption (l/min) Acoustic pressure in operating conditions... -
Page 11: Description Of The Machine
MACHINES AND ACCESSORIES 4 DESCRIPTION OF THE MACHINE has been built to smooth and clean metal La Sabbiatrice per esterno con aspiratore surfaces, walls of buildings or hard materials in general, by means of a pressurised stream of dried abrasive particles, such as glass granules or abrasive stone granules. Falling of Abrasive Particles If the abrasive particles (micro beads) fall onto the floor, clean immediately and collect them, to avoid possible falls. -
Page 12: Main Parts
MACHINES AND ACCESSORIES 4.1 Main parts Figure 1 - Main Parts Start / Stop motor button Compressed air tube Handle for movement Granule discharge tube Compressed air quick coupling Granule suction tube Fixed front wheels Body of the Machine Rear swivel wheels Lid with suction motor Page 12 of 28... -
Page 13: Identification Plate
MACHINES AND ACCESSORIES 4.2 Identification plate On the granule and dust collection drum, there is an identification plate (Figure 2): Figure 2 – Identification plate. 4.3 Warning plate On the granule and dust collection drum, there is a warning plate (Figure 3): ATTENTION!! BEFORE OPENING THE LID REMOVE THE PLUG FROM THE POWER... -
Page 14: Description Of Controls
MACHINES AND ACCESSORIES 4.4 Description of controls On the sandblaster lid / vacuum there is a two-position ON/OFF switch. When the switch is pressed, an LED lights up that indicates that the electric motor of the sandblaster has been started. Figure 4 –... -
Page 15: Safety Devices On The Machine
MACHINES AND ACCESSORIES 5 SAFETY DEVICES ON THE MACHINE 5.1 Safety devices UCTION SYSTEM To prevent dust or other particles from being dispersed into the surrounding environment, the machine is equipped with a suction system able to suck both the dust produced by the sandblasting and the granules expelled for processing (or at least, some of them). -
Page 16: Personal Protective Equipment (Ppe)
MACHINES AND ACCESSORIES If the electric cord or plug need to be repaired or replaced, do not connect the conductor to machine's grounding system to a live terminal. If you do not understand the instructions for grounding or if you doubt the exact grounding of the machine, check with a qualified electrician. -
Page 17: Improper Uses And Precautions
MACHINES AND ACCESSORIES 6 IMPROPER USES AND PRECAUTIONS The following actions, which obviously cannot cover the entire range of possible "misuse" of the machines are strictly forbidden. IT IS STRICTLY FORBIDDEN !! To direct the jet of abrasive material toward people or animals ... -
Page 18: Installing The Machine
MACHINES AND ACCESSORIES 8 INSTALLING THE MACHINE 8.1 Unpacking instructions The sandblaster is supplied in a cardboard box. Before disposing of the packaging, ensure all machine parts (eg screws), the owner's manual and other documentation have been removed. Standard packaging Packaging materials (plastic bags, polystyrene foam, etc.) must not be left within reach of children as these are potentially dangerous. - Page 19 MACHINES AND ACCESSORIES 3. After returning the machine to an upright position, insert the two ends of the handle into the appropriate holes, then tighten the two fastening screws using an Allen key. Figure 9 - Handle locking screws. 4. Attach the dust suction tube (the one with the largest diameter) by fixing one end of the protruding tube into the rear / bottom of the drum and the other end to the brush.
-
Page 20: Commissioning
MACHINES AND ACCESSORIES 9 COMMISSIONING Place the machine on a floor that is level, stable and sturdy, after ensuring the proper levels of cleanliness. Loss of stability / Overturning Place the sandblaster on a supporting surface which has the following characteristics: ... -
Page 21: Operation
MACHINES AND ACCESSORIES 10 OPERATION 10.1Instructions for Use Before starting work, it is good to check the machine, and in particular: check that all tubes and hoses (for air, abrasives, suction of dust) are properly connected; check that there are no leakages in the air circuit, and all the joints and connections, etc.;... - Page 22 MACHINES AND ACCESSORIES Precautions for sandblasting The jet must not be too strong or concentrated in a single point on the piece, to prevent damage. The jet should NEVER be aimed directly at the hands (even if protective gloves are being used).
-
Page 23: Maintenance
MACHINES AND ACCESSORIES 11 MAINTENANCE 11.1Routine maintenance Maintenance Whenever maintenance is carried out or parts are replaced: Remove the plug from the mains socket; Disconnect the compressed air tube. To ensure the safe operation of the sandblaster it is necessary to perform a series of control and maintenance operations. -
Page 24: Replacing The Parts Of The Sandblaster
MACHINES AND ACCESSORIES 11.2Replacing the parts of the sandblaster 11.2.1 Replacing the sandblast gun nozzle Accidents Disconnect the compressed air tube from the machine body, before replacing the gun nozzle. To replace the nozzles, proceed as follows: Unscrew the locking grub screw from the gun and extract the head with the brushes. ... -
Page 25: Cleaning The Sandblaster
MACHINES AND ACCESSORIES 11.2.3 Cleaning the sandblaster Regularly clean and take care of the machine to guarantee proper efficiency and a long working life. Using a compressor, regularly blow away the dust and processing residue produced by sandblasting. Working with compressed air ALWAYS wear safety glasses when working with compressed air. - Page 26 MACHINES AND ACCESSORIES 12 REPLACEMENT PARTS Page 26 of 28...
- Page 27 MACHINES AND ACCESSORIES Ref. Description Ref. Description 0462/01 Suction tube 0462/29 Nut M4 0462/02 Plastic clip 0462/30 Spring lock washer 0462/03 Abrasive discharge tube 0462/31 Long screw 0462/04 Compressed air tube 0462/32 Motor plate 0462/05 Coupling flange 0462/33 Screw 0462/06...
- Page 28 MACHINES AND ACCESSORIES 13 TROUBLESHOOTING PROBLEM PROBABLE CAUSE SOLUTION Clogged air filter. Clean the air filter. Abrasive used up. Replace the abrasive. Excessive dust being Excessive abrasive in the drum. Remove the excess discharged by the abrasive. gun. Loss of compressed air from the Replace the tubs or tighten tubes.
