OPERATION AND
MAINTENANCE MANUAL

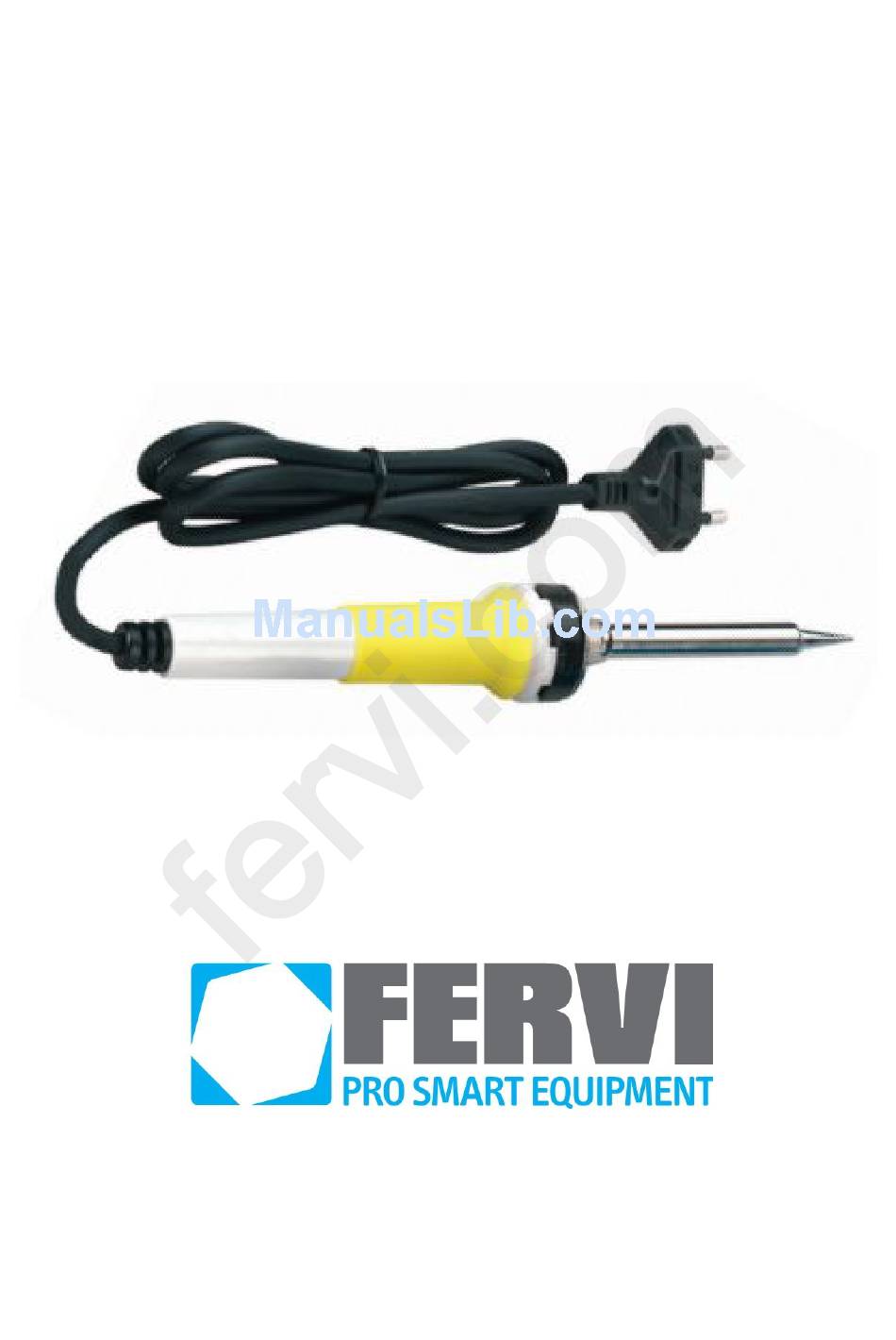

Soldering iron
Art. 0027
ORIGINAL INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0027 and is the answer not in the manual?

Questions and answers

Related Manuals for Fervi 0027

Summary of Contents for Fervi 0027

  • Page 1 OPERATION AND MAINTENANCE MANUAL Soldering iron Art. 0027 ORIGINAL INSTRUCTIONS...
  • Page 2 Manual on the date of issue, listed on this page; however, the machine may be subject to potentially major technical changes in the future, without the Manual being updated. Therefore, see FERVI for information about modifications that could be implemented. REV. 1 November 2013...

  • Page 3: Table Of Contents

    HARDWARE CONTENTS PRECAUTIONS WITH REGARD TO ELECTRIC SHOCKS........ 4 Technical support......................4 DESCRIPTION OF THE SOLDERING IRON AND INTENDED USE....5 Technical specifications ....................5 Identification plate .......................5 IMPROPER USE AND CONTRAINDICATIONS..........6 HOW TO USE ..................... 7 Switching On and Off ....................7 Using the soldering iron ....................7 MAINTENANCE AND CLEANING ..............

  • Page 4: Precautions With Regard To Electric Shocks

    HARDWARE 1 PRECAUTIONS WITH REGARD TO ELECTRIC SHOCKS Risks associated with electric shocks  Check that the power plug is disconnected before touching live parts.  Make sure the power supply complies with the machine's required voltage and frequency requirements. ...

  • Page 5: Description Of The Soldering Iron And Intended Use

    2 DESCRIPTION OF THE SOLDERING IRON AND INTENDED USE The Soldering iron (Art. 0027) is an tool for soldering electronic circuits with tin wire. The device is powered by the mains power supply 230 V / 50 Hz. The soldering iron is made up of the following parts (see Figure 1): Electric power cable Handle with “pen”...

  • Page 6: Improper Use And Contraindications

    HARDWARE 3 IMPROPER USE AND CONTRAINDICATIONS IT IS STRICTLY FORBIDDEN TO:  Use the tool on unstable surfaces, which would be affected by heat or that are easily flammable;  Place the soldering iron on an unsuitable stand, resulting in a risk of fire; ...

  • Page 7: How To Use

    HARDWARE 4 HOW TO USE 4.1 Switching On and Off Switching on and off is achieved by inserting (and removing) the plug into a 230 V / 50 Hz socket To remove the plug, hold it by the body and never pull the cord (see Figure 2). Figure 2 –...

  • Page 8: Maintenance And Cleaning

    HARDWARE 5 MAINTENANCE AND CLEANING The purpose of this section is to provide all the information on the maintenance procedures and frequency that the Soldering iron requires. Frequency INTERVENTION Daily Weekly 1. General visual inspection 2. General cleaning 3. Maintenance of the tip 1.

  • Page 9: Replacing The Tip

    Burns Only replace the tip when the metal parts are at room temperature. Available in the Fervi catalogue there is a Soldering iron spare part tip set (art. 0033) that you can request from your dealer. The soldering iron must be unplugged and away from sources of heat before and during this operation: Manually unscrew the fastening screw support (1);...
