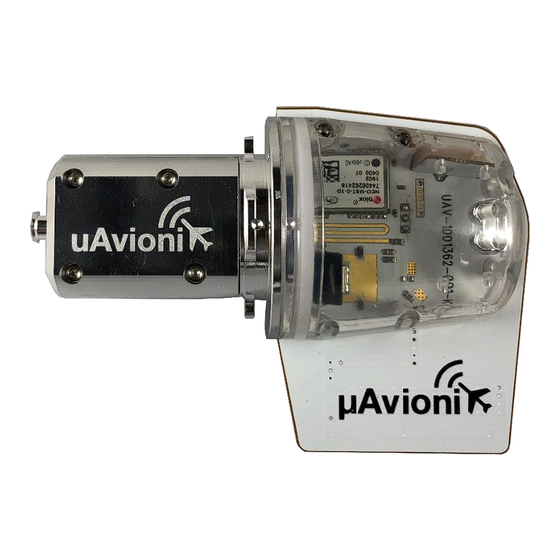

- Page 1 tailBeacon Installation Manual UAV-1002514-001 Rev B...
- Page 2 retained.
-
Page 3: Revision History
1 Revision History Revision Date Comments 7/7/2019 Initial release 8/28/2019 Update ADS-B version to v1.4.0 and note installation kit UAV-1002514-001 Rev B... -
Page 4: Warnings / Disclaimers
2 Warnings / Disclaimers uAvionix is not liable for damages arising from the use or misuse of this product. This equipment is classified by the United States Department of Commerce's Bureau of Industry and Security (BIS) as Export Control Classification Number (ECCN) 7A994. -
Page 5: Table Of Contents
3 Table of Contents Revision History ................... 3 Warnings / Disclaimers ................ 4 Table of Contents ................5 System Information ................6 Certification ................... 6 TSO Authorization ................. 6 System Limitations ................ 7 System Specifications ................8 Physical Specifications ..............8 System Interfaces ................. -
Page 6: System Information
4 System Information 4.1 Certification This installation manual provides mechanical and electrical information necessary to install tailBeacon. The content of this manual assumes use by competent and qualified personnel using standard maintenance procedures in accordance with Title 14 of the Code of Federal Regulation and other related accepted procedures. -
Page 7: System Limitations
4.3 System Limitations Installation This article meets the minimum performance and quality control standards required by a technical standard order (TSO) and when installed on aircraft approved on the AML can be approved for return to service after installation. If you are installing this article on or in a specific type or class of aircraft, not listed on the AML you must obtain separate approval for installation. -
Page 8: System Specifications
5 System Specifications 5.1 Physical Specifications Characteristics Specifications Width 1.71 in (44mm) Height 2.63 in (67 mm) Depth 3.82 in (97 mm) Weight 3.0 oz (85 g) Operating Temperature Range -45°C to +70°C Maximum Pressure Altitude [1] 18,000 ft Input Voltage Range 9 to 33 VDC 14V Current 0.5A Max... -
Page 9: System Interfaces
5.2 System Interfaces Aircraft Power (14/28V) Transponder Position Light Wi-Fi Breaker iOS/ Android Device BLACK Aircraft Ground WARNING: Do not connect the power wire to a Xenon strobe power pack. This can damage the light and voids the warranty. UAV-1002514-001 Rev B... -
Page 10: Installation
6 Installation 6.1 Unpacking and Inspecting Carefully unpack the device and make a visual inspection of the unit for evidence of any damage incurred during shipment. If the unit is damaged, notify the shipping company to file a claim for the damage. To justify your claim, save the original shipping container and all packing materials. -
Page 11: Unit Installation Overview
6.3 Unit Installation Overview tailBeacon is mounted with two #4-40 flat head screws to the existing holes and nut plates used to secure a traditional Grimes style aft position light. The mounting bracket can be positioned with the screws in 2 orientations, either vertical or horizontal to be compatible with existing mounting patterns (See Section 6.4 for details). -
Page 12: Mounting Dimensions
6.4 Mounting Dimensions Determine if your aft position light is mounted vertical or horizontal. You will also need to determine if your aft position light is mounted to a fixed surface or a moving control surface. If installed on a moving control surface, specific attention must be paid to proper balance. -
Page 13: Mounting Procedure
6.5 Mounting Procedure Follow the procedures below to mount the tailBeacon to the aircraft. 1) Remove the existing aft position light screws. 2) Access wiring to disconnect the existing position light. Prepare the aircraft wire ends (Items 1, 2) per AC 43-13 for crimp type wire splices. 3) Ensure that the thru-hole for the wiring is between 30-35mm in diameter and is free of burrs, to allow the tailBeacon to fit. - Page 14 [2] [1] Included with tailBeacon TSO Installation Kit UAV-1003202-001 [2] Available for download at https://uavionix.com/support/ 7) Remove the stripped insulation from the end of both tailBeacon wires. 8) Connect the aircraft Ground wire (1) to the tailBeacon Ground (7) wire using the provided (or equivalent) 22awg butt splice (12).
- Page 15 10) With the tailBeacon at a slight angle to align the mounting tabs, Install the tailBeacon into the Mounting plate and rotate clockwise to engage the tabs. The rotation should stop when the blade of the tailBeacon is vertical. 11) Ensure the blade shape of the tailBeacon is pointing down towards the ground and the top of the tailBeacon has an unobstructed view of the sky.
- Page 16 12) Use the included (11), or equivalent 1.5mm Hex L wrench to tighten the M2 x 5mm locking screws (10) on each side of the tailBeacon. 13) Apply power to the tailBeacon and confirm position light operation. 14) Install placard as defined in tailBeacon Flight Manual Supplement UAV-1002512-001 Section 2.2.
-
Page 17: Tailbeacon System Configuration
6.6 tailBeacon System Configuration 6.6.1 Verify Software Version Before configuring the tailBeacon, verify that the version of software installed on the tailBeacon matches the software version identified in Table 6-1 Software Part Numbers and Versions. Item / Part Version ADS-B (skyBeacon PF007 Operating 1.4.0 0x4957C6B8 Program Firmware) -
Page 18: Flight Checks
AC 20-165B. Upon completion of the flight, request an ADS-B Aircraft Operation Compliance Report (ACR) at the Public ADS-B Performance Report Request Internet site: https://adsbperformance.faa.gov/PAPRRequest.aspx 7 Support For additional questions or support please visit: http://www.uavionix.com/support/ UAV-1002514-001 Rev B...
