Gotharman's Little deFormer
3
Granular Workstation
Update Manual 9.45

Advertisement

loading
Need help?

Need help?

Do you have a question about the Little deFormer 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Gotharman Little deFormer 3

Summary of Contents for Gotharman Little deFormer 3

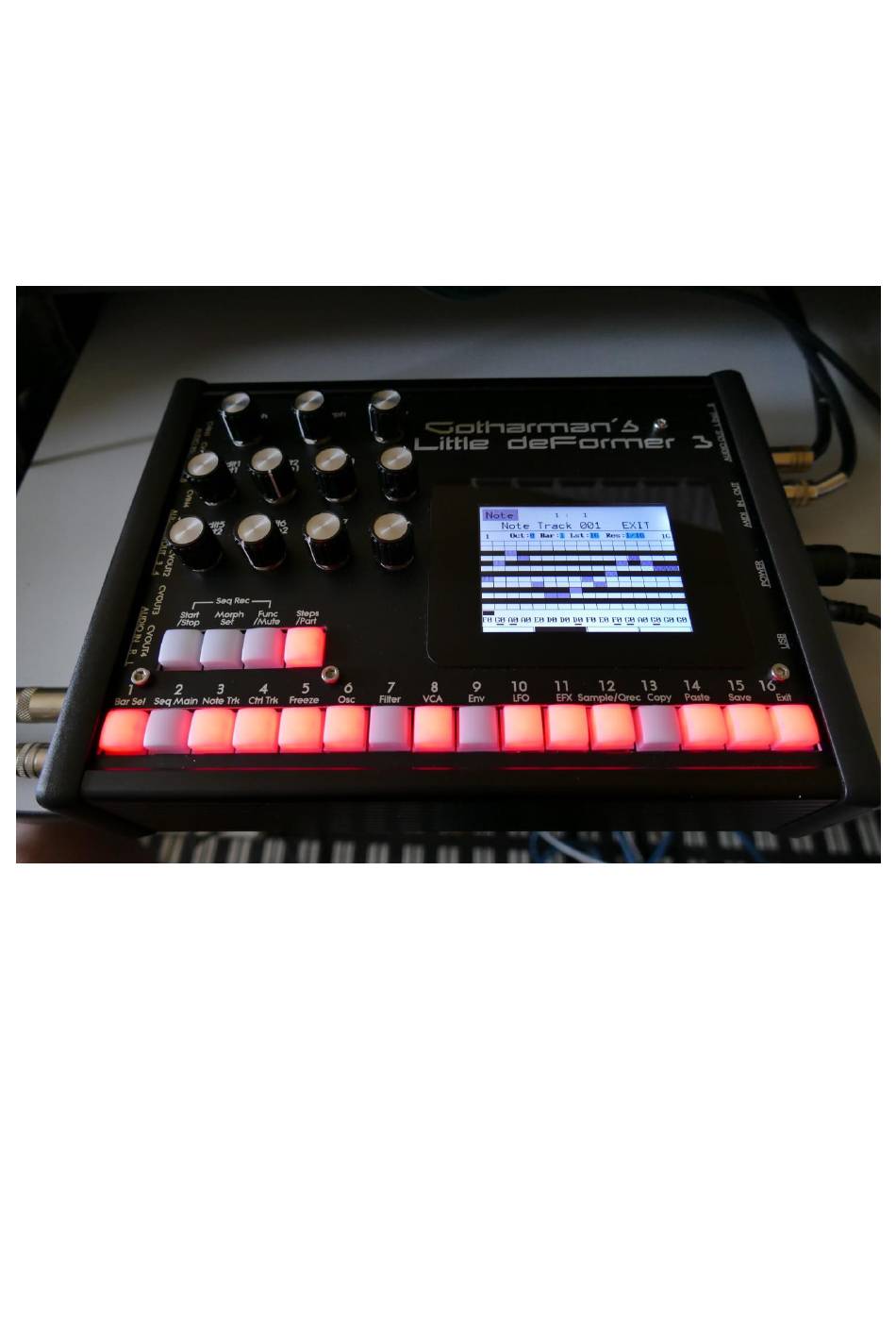

  • Page 1 Gotharman’s Little deFormer Granular Workstation Update Manual 9.45...
  • Page 2 -Graphical sample editing has been added. Page 3 -The Part Trigger Note can now be modulated, making CV/Gate to MIDI and other things possible. Page 16 -Now only positive modulation sources can be selected by an edit knob. You will have to touch the parameter, for negative modulation.

  • Page 3: Graphical Sample Editing

    Graphical sample editing On the Sample Edit page, the touch button previously named “Func”, has been renamed to “Grap”. Touching this will enter the graphical sample edit pages. On the graphical sample edit pages you can add and remove chop/loop points and select a portion of a sampling, to be saved as a new sampling.
  • Page 4 From the Sample Edit page touch Grap, to enter the graphical edit page: On this page, you will see a graphical presentation of the selected sampling. Chop points are indicated as vertical blue lines, and the sample zero point is indicated as a horizontal red line.
  • Page 5 By touching anywhere on the screen, or by rotating Edit Knob 1, you can select a start point. This is indicated by a vertical green line. By rotating Edit Knob 4, you can zoom in and out.
  • Page 6 By touching the End touch button, so that it turns black, the screen will now be focused on the end point, which is indicated as a vertical red line. When you touch the screen now, the red line will move, indicating that the end point is selected. It is also possible to change the end point, by rotating Edit Knob 1.
  • Page 7 Selecting and edit chop points Touch the Chop touch button, so that this becomes black. Now, when you touch the screen, you will select a chop point. The line indicating the chop point will turn dark blue, when it is selected. Rotate Edit Knob 1 to adjust the chop point.
  • Page 8 Adding a chop point Make sure that the Chop touch button is grey. Set the start point, where you want the chop point to be, either by touching the screen, or by rotating Edit Knob 1. Touch the Func touch button.
  • Page 9 Now you will enter the graphical function page: Touch “Add Chop”. LD3 will now jump back to the graphical edit page, and a chop point will be added at the selected start point.
  • Page 10 Adding a chop point at the selected end point If you wish to create a loop, for instance for use with the sustained loop feature, you will adjust the start and endpoints, until the loop sounds as intended. Then you will save the start point as a chop point. In order to make the loop work, you will though also need to save the selected end point as a chop point.
  • Page 11 Delete a chop point Make sure that the Chop touch button is black, and that you have selected the chop point, that you want to delete. Touch the Func touch button, to enter the graphical functions page.
  • Page 12 Now touch “Delete Chop”. LD3 will now jump back to the graphical edit page, and the previously selected chop point will have been removed. To delete the next chop point, follow the same procedure, but touch “Delete Chop At Endpoint” on the functions page instead.
  • Page 13 Saving the chop points After you have edited, added and deleted chop points, you must save these changes, in order to keep them. This is also done from the graphical functions page. Simply touch “Save Chop Points”. LD3 will now save your edits, and return to the graphical edit page.
  • Page 14 Creating a new sampling from a portion of the selected sampling If you want to completely remove unused start and/or end portions of a sampling, use a portion of the sampling for a loop, or just wants to copy the whole sampling to another sample bank, you can use this function.
  • Page 15 Touch “Save As New Sample”. A new page will now open. Select the sample bank, that you would like to copy the sampling/portion of the sampling to, by touching the A, B, C or D touch button. LD3 will write “Saving Sample...” for some time, and then it will jump back to the functions page.
  • Page 16 Part Trigger Note Modulation On the Synth>Trig page, a few extra parameters has been added, to make it possible to modulate the trigger note. The trigger note is the note that is played back, when you hit a trigger button. This can now be modulated by any modulation source, so that it is possible, to make this change, to play back a different note, every time you hit the trigger button.
  • Page 17 Negative Modulation Sources Select When tuning an edit knob, to select a modulation source, only the positive modulation sources can now be selected. This is done, in order to half the number of selectable sources, to make modulation source selection a bit simpler. To make a modulation source negative (or inverted), simply touch the parameter.
  • Page 18 Part Select and Mute It is now possible, to latch the part select and mute functions, so that you will not have to hold down the Func/Mute or Steps/Part buttons, while pushing a step button, to select or mute a part. For this purpose, a new common settings page has been created.
  • Page 19 Touch COM2 to enter this page: Here you can, by rotating Edit Knob 1, set the Part/Mute buttons to: -Hold: You will have to hold the Func/Mute or Steps/Part buttons, while pushing a step button, to select or mute a part. -Latch: When pushing and releasing either the Func/Mute or the Steps/Part buttons 2 times, the button will start to flash, and you can select or mute parts, by pushing the step buttons.
  • Page 20 Controller Track Realtime Recording This feature has been changed a bit, to make it easier to use. In earlier firmware versions, if the sequencer was running, and in rec mode, when a controller track was set in rec mode, it would immediately go into rec mode, and only record from the position it was at, when rec was initiated, to the end step of the controller track.
  • Page 21 As soon as the controller track passes step 1, and goes into rec mode, the touch buttons will change to red:...
  • Page 23 “Esc” Button On The Preset Select Page In earlier firmware versions, it was possible to exit from the Preset Select Page, simply by selecting the preset, that was already selected (this has blue background). Then LD3 would just exit from the preset select page, without reloading or changing anything.
  • Page 24 Written by Flemming Christensen ”Gotharman” 2019 www.gotharman.dk...
