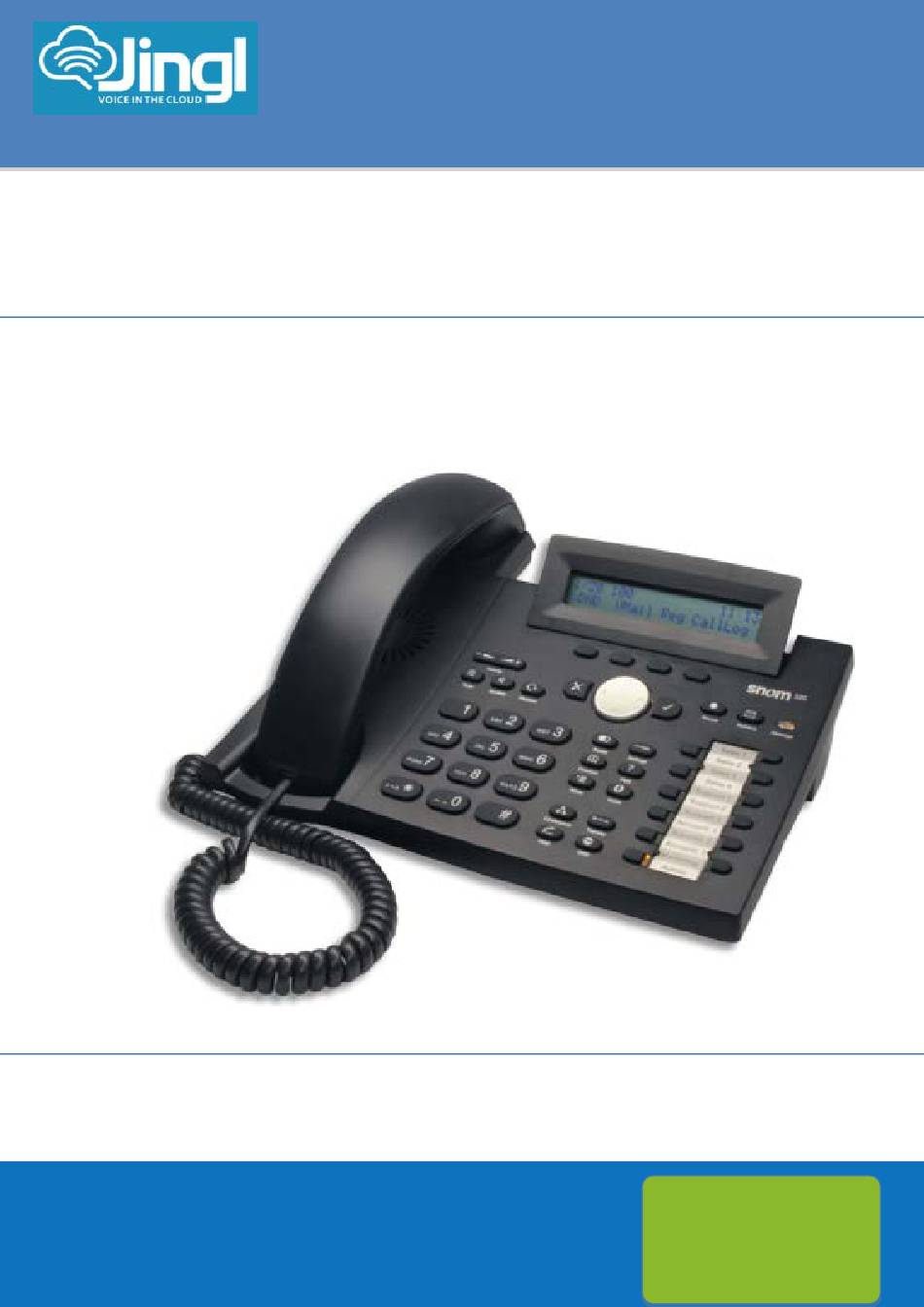

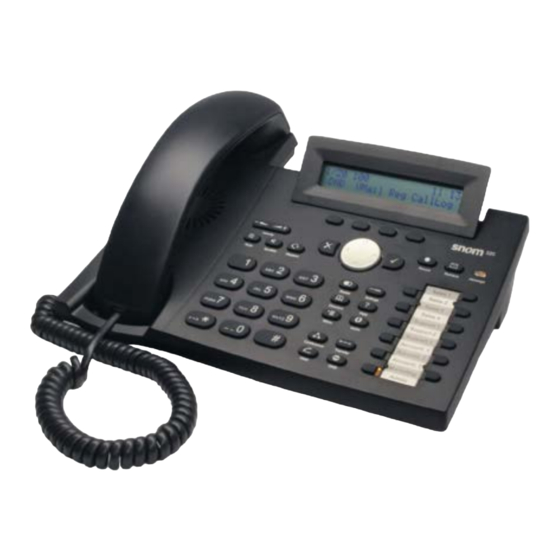

Page 1: Snom 320
SNOM 320 Head Office: 1300 0 JINGL Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.a... - Page 2 Configuring SNOM 320 View and record the unique MAC address of the handset which can be found at the base of the handset. Head Office: 1300 0 JINGL Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.a...
- Page 3 Logon to the Jingl web portal, using specific customer domain URL https://’customer’.jingl.com.au Enter your User Name and Password Presented with Dashboard Head Office: 1300 0 JINGL Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.a...
- Page 4 Select and click the settings menu Click on “Add new” In general tab, choose and enter extension number and a display name Head Office: 1300 0 JINGL Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.a...
- Page 5 Select and expand Provisioning tab. Enter the MAC address of the phone Select and expand Hardware Type. Select the phone model Head Office: 1300 0 JINGL Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.a...
- Page 6 Click Add to finish your extension configuration. Connect your phone on the network with a DHCP server, and find out phone’s IP address. Find IP address from ‘Help’ Button Head Office: 1300 0 JINGL Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.a...
- Page 7 Then press IPAdr button to obtain IP Address Head Office: 1300 0 JINGL Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.a...
- Page 8 Use a compatible browser to browse the phone web menu using phones IP address https://xxx.xxx.xxx.xxxx Determine which current version your phone is on Within your web browser go to Status\System Information This will show current version Head Office: 1300 0 JINGL Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia 1 3 0 0 5 4 6 4 5...
- Page 9 9. If you are currently on version 6, you must upgrade to version 7 first. Then upgrade from version 7.x to 8.7.3.25 Within your web browser go to 'Advanced'. Head Office: 1300 0 JINGL Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.a...
- Page 10 Browse to field “Update” Ensure that Update Policy field is set to: Update automatically In Setting URL field: Paste 'http://provisioning.snom.com/update6to7/update_once.php' Click Save Click Reboot Hit Yes to Acknowledge Phone will reboot several times and will reach version 7.3.30 Please be patient...
- Page 11 Next step is to upgrade from version 7.x to 8.7.3.25 Access phone via web browser and check current version Web into phone admin and go to 'System Information'. Head Office: 1300 0 JINGL Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.a...
- Page 12 Next within web admin go to 'Software Update' Paste 'http://provisioning.snom.com/download/fw/snom320-8.7.3.25-SIP-f.bin' In the Firmware: field Then click “Load” On the handset You are presented with Update new firmware? press OK (the tick) Phone will reboot and will upgrade to version 8.7.3.25...
- Page 13 Access phone via web browser and check current version (You will be requested to change web/HTTP password for security) Go to 'System Information' to check Firmware-version Head Office: 1300 0 JINGL Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.a...
- Page 14 Configure the phone to get configuration settings every hour. Within your web browser go to 'Advanced' / 'Update' Set Update Policy to 'Update Automatically' Set the Setting URL: to ‘http://tftp.jingl.com.au/tftp/{mac}.cfg' Set the Settings refresh timer: to 3600 Set the PnP Config: to 'on' Click Apply.
- Page 15 Click Reboot 13. The phone will reboot, download and configure all settings from the provisioning server as well as any necessary firmware files. Head Office: 1300 0 JINGL Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia 1 3 0 0 5 4 6 4 5 www.jingl.com.a...
