Nord Drivesystems SK 180E Series Manual

Nord Drivesystems SK 180E Series Manual

Hide thumbs Also See for SK 180E Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

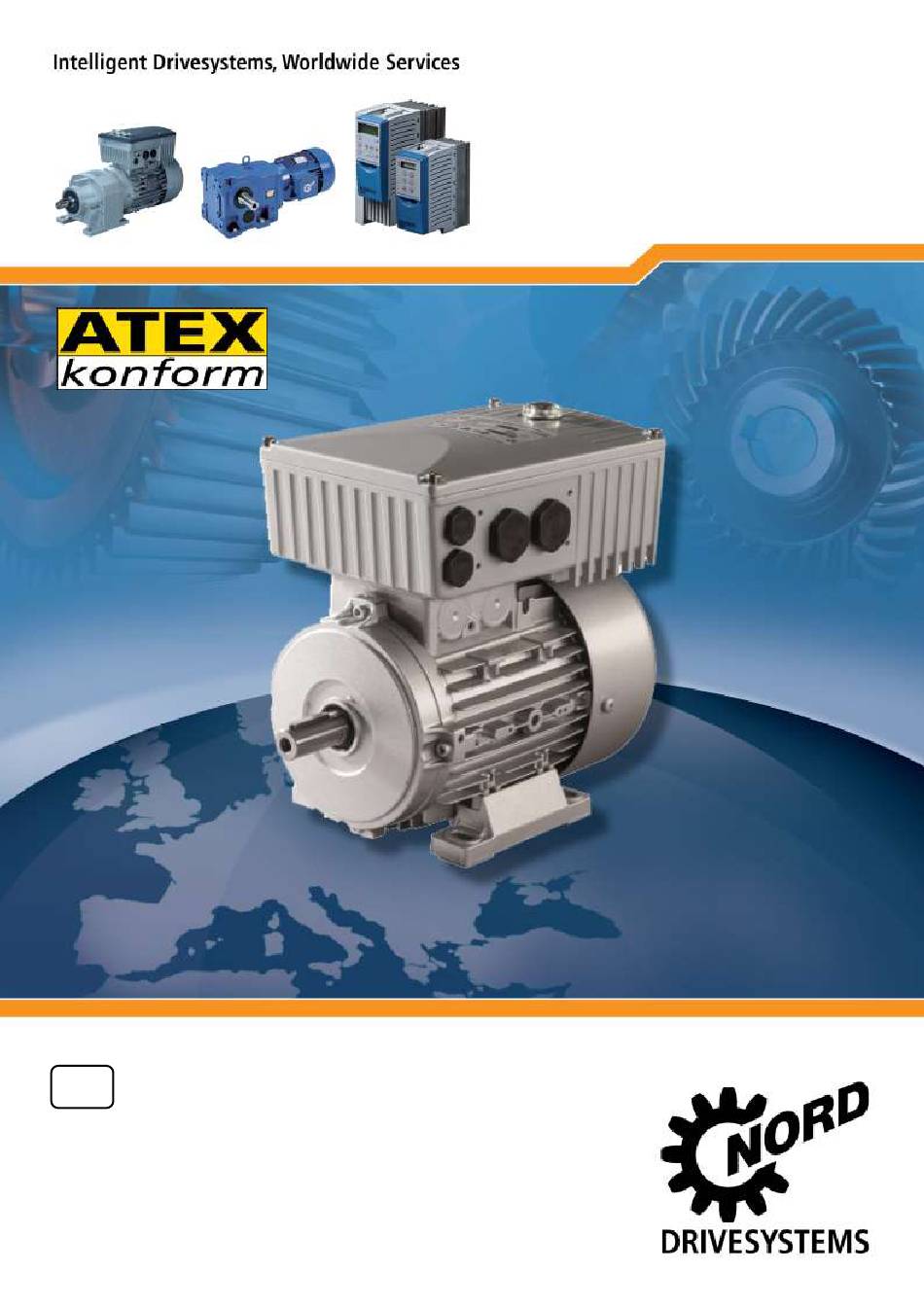

GB
BU 0180
SK 180E...190E
BU 0180 GB-2313
1
Manual for Frequency inverters

Advertisement

Table of Contents
loading

Related Manuals for Nord Drivesystems SK 180E Series

Summary of Contents for Nord Drivesystems SK 180E Series

  • Page 1 BU 0180 SK 180E…190E BU 0180 GB-2313 Manual for Frequency inverters...
  • Page 2 SK 180E Manual for frequency inverters About this document NORD frequency inverters Safety and operating instructions for drive power converters (as per: Low Voltage Directive 2006/95/EEC) 1.General The drive power converters must be protected against im- permissible loads. Especially during transport and handling, During operation, drive power converters may, depending on their components must not be deformed and/or insulation dis- protection class, have live, bare, moving or rotating parts or hot sur-...
  • Page 3 SK 180E Manual for frequency inverters About this document Documentation Designation: BU 0180 GB Part No.: 607 1801 Device series: SK 180E, SK 190E Device types: SK 1x0E-250-112-O ... SK 1x0E-750-112-O, 0.25 - 0.75kW, 1~ 100-120V, Output. 230V SK 1x0E-250-323-B ... SK 1x0E-111-323-B, 0.25 - 1.1kW, 1/3~ 220-240V SK 1x0E-250-340-B ...
  • Page 4 SK 180E Manual for frequency inverters About this document Intended use of the frequency inverter Compliance with the operating instructions is essential for fault-free operation and the acceptance of any warranty claims. These operating instructions must be read before working with the device! These operating instructions contain important information about servicing.

  • Page 5: Table Of Contents

    Table of Contents 1 GENERAL ..........................8 1.1 Overview ....................... 9 1.2 Delivery ......................... 9 1.3 Scope of supply ....................9 1.4 Safety and installation information ..............11 1.5 Certifications ....................... 13 1.5.1 European EMC Directive ..................13 1.5.2 UL and cUL approval (in preparation) ..............13 1.5.3 C-Tick labeling ......................
  • Page 6 SK 180E Manual for frequency inverters 3.1.2 Overview of external technology units SK TU4-… ..........53 3.2 Mounting of optional module ................55 3.2.1 Installation of internal customer units SK CU4-… ........... 55 3.2.2 Installation of external technology units SK TU4-… ..........55 3.3 Details of internal Customer Units SK CU4-…...
  • Page 7 Table of Contents 9.1 Setpoint processing in the SK 1x0E ..............159 9.2 Process controller ..................... 160 9.2.1 Process controller application example ..............160 9.2.2 Process controller parameter settings ..............161 9.3 Electromagnetic compatibility ................162 9.4 EMC limit value classes ................... 163 9.5 Reduced output power ..................

  • Page 8: General

    SK 180E Manual for frequency inverters General The SK 1x0E series is based on the tried and tested NORD platform. These devices feature a compact design with optimum control characteristics. These devices are provided with sensorless vector current control system which in combination with asynchronous three-phase motor types constantly ensures an optimised voltage-to-frequency ratio.

  • Page 9: Overview

    1 General 1.1 Overview Basic features of the SK 180E / SK 190E:  High starting torque and precise motor speed control setting with sensorless current vector control  Can be installed directly on, or near to the motor.  Permissible ambient temperature -25°C to 50°C (please refer to the technical data) ...
  • Page 10 SK 180E Manual for frequency inverters Extension modules: internal SK CU4-IOE, internal I/O extension SK CU4-PBR, internal PROFIBUS DP® module SK CU4-CAO, internal CANopen® module SK CU4-DEV, internal DeviceNet™ module SK CU4-ECT, internal EtherCAT® module SK CU4-POT , Potentiometer adapter: internal potentiometer/switch module SK CU4-REL, internal setpoint converter for bipolar analog signals, incl.

  • Page 11: Safety And Installation Information

    1 General 1.4 Safety and installation information The frequency inverters are equipment for use in industrial high voltage systems and are operated at volt- ages that could lead to severe injuries or death if they are touched.  Installation and other work may only be carried out by qualified electricians and with the device disconnected.
  • Page 12 SK 180E Manual for frequency inverters CAUTION The heat sink and all other metal components can heat up to temperatures above 70°C. When mounting, sufficient distance from neighboring components must be maintained. When working on the components, allow sufficient cooling time beforehand Protection against accidental contact may need to be provided.

  • Page 13: Certifications

    1 General 1.5 Certifications 1.5.1 European EMC Directive If the frequency inverter is installed according to the recommendations in this manual, it meets all EMC directive requirements, as per the EMC prod- uct standard for motor-operated systems EN 61800-3. (See also Section 9.3 Electromagnetic Compatibility [EMC].) 1.5.2 UL and cUL approval...

  • Page 14: C-Tick Labeling

    SK 180E Manual for frequency inverters cUL Approval - File No. E171342 “cUL only in combination with SK CIF-340-30 or SK CIF-340-60 for 380-480V models and SK CIF-323-20 or SK CIF-323-40 for 3 phase 200-240V rated models”. The recog- nized transient surge suppression filter board has to be connected between supply and the input of the drive according to the instruction manual.

  • Page 15: Nomenclature / Type Codes

    1 General 1.6 Nomenclature / type codes Unique type codes have been defined for the individual modules and devices. These provide individual details of the device type and its electrical data, protection class, fixing version and special versions. A differentiation is made according to the following groups: Group Example of type code Basic unit...

  • Page 16: Type Code / Frequency Inverter - Basic Device

    SK 180E Manual for frequency inverters 1.6.1 Type code / Frequency inverter - Basic device SK 180E-370-323-B (-C) C = “coated” = IP66 IP protection class: Standard = IP55, Radio interference filter: O = without, A = Class A1, B = Class B1 Mains voltage: x12 = 115V, x23 = 230V, x40 = 400V Number of mains phases: 1xx = single phase, 3xx = 3-phase Digits before decimal point for power: 0 = 0.xx, 1 = 0x.x0, 2 = 0xx.0...
  • Page 17 1 General Optional external technology unit, SK TU4-… Optional internal customer unit, SK CU4-… BU 0180 GB-2313 Pre-series version...

  • Page 18: Version With Protection Class Ip55 / Ip66

    SK 180E Manual for frequency inverters 1.7 Version with protection class IP55 / IP66 The frequency inverters and additional modules are available in protection classes IP55 (standard) or IP66 (optional). The protection class IP66 must always be stated when ordering! There are no restrictions or differences to the scope of functions in either protection class.

  • Page 19: Assembly And Installation

    2 Assembly and installation Assembly and installation 2.1 Installation and assembly The frequency inverters are available in various sizes depending on their output. They can be mounted on the terminal box of a motor or in its immediate vicinity. Motor-mounted version Wall-mounted version NOTE The equipment requires sufficient ventilation to protect against overheating.

  • Page 20: Mounting The Housing Box

    SK 180E Manual for frequency inverters 2.1.1 Mounting the housing box On delivery of a complete drive unit (gear unit + motor + frequency inverter) the frequency inverter is always fully installed and tested. NOTE Installation of an IP66-compliant frequency inverter must be carried out by NORD, as special measures have to be implemented.

  • Page 21: Adapters For Different Motors

    2 Assembly and installation 2.1.2 Adapters for Different Motors In some cases, the terminal box attachments are different for different sizes of motor. Therefore, it may be necessary to use an adapter to mount the frequency inverter. In order to guarantee the maximum protection class IP55 / IP66 of the entire unit, motor must also have a corresponding protection class.

  • Page 22: Installation Of The Frequency Inverter

    SK 180E Manual for frequency inverters 2.1.3 Installation of the frequency inverter The housing cover must first be removed in order to make the electrical connections to the frequency invert- er. To do this, unscrew the 4 fastening screws, so that the housing cover can be removed upwards. After the electrical connections of the supply cables have been made, the housing cover can be replaced.

  • Page 23: Option Slots Of The Connection Unit

    2 Assembly and installation 2.1.4 Option slots of the connection unit Size 1: Size 2: The above drawings indicates the different installation locations for optional modules. Option location 1 is used for implementation of an internal bus module or an internal power supply. Option location 2 for installing an internal brake resistor is only present in size 2.

  • Page 24: Dimensions Of The Frequency Inverter

    SK 180E Manual for frequency inverters 2.2 Dimensions of the frequency inverter 2.2.1 Power rating / Motor size Mains / Power category SK 1x0E Size 3~ 200-240V 3~ 380-480V Size I 0.25 ... 0.55kW 0.25 ... 1.1kW Size II 0.75 ... 2.2kW 1.5 ...

  • Page 25: Wall-Mounted Frequency Inverter

    2 Assembly and installation 2.2.3 Wall-mounted frequency inverter The frequency inverter can be installed in the vicinity of the motor by means of an optional wall mounting kit. Wall-mounting Housing dimensions Device type total weight SK TIE4-WMK-L-1 Size Approx. [kg] ...

  • Page 26: Brake Resistor (Br) (Only Size 2)

    SK 180E Manual for frequency inverters 2.3 Brake resistor (BR) (only size 2) During dynamic braking (frequency reduction) of a three phase motor, electrical energy is returned to the frequency inverter. To prevent an overvoltage shut-down of the FI, above size 2 an internal or external brake resistor can be used.

  • Page 27: External Brake Resistor Sk Bre4

    2 Assembly and installation 2.3.2 External brake resistor SK BRE4-... The external brake resistor (available for SK 1x0E, Size 2) is intended for energy feedback, e.g. in pulse drives or lifting gear. Here, it may be necessary to plan for the exact brake resistor required. SK 180E Size II For installation, an M20 screw connection with an adapter for M25 is supplied.

  • Page 28: Electrical Data Br

    SK 180E Manual for frequency inverters 2.3.4 Electrical data BR Internal Max. continuous Energy Inverter ID Resistor type Connecting cable output / limit** consumption* Resistance (IP54) or terminals SK 1x0E-… SK BRI4-1-200-100 Silicone 200  750…111-323-A 100 W / 25% 1.0 kWs conductor Part.

  • Page 29: Overvoltage Filter Sk Cif

    2 Assembly and installation 2.4 Overvoltage filter SK CIF The use of a suitable ("CSA-") overvoltage filter is mandatory (see also Section 1.5) in order to comply with cUL requirements. For 230V devices, operation of the frequency inverter with a suitable overvoltage filter is only permissible if a mains choke is used in addition.

  • Page 30: Wiring Guidelines

    SK 180E Manual for frequency inverters 2.5 Wiring guidelines The frequency inverter has been developed for use in an industrial environment. In this environment, high levels of electromagnetic interference can influence the frequency inverter. In general, correct installation ensures safe and problem-free operation. To meet the limiting values of the EMC directives, the following instructions should be complied with.

  • Page 31: Electrical Connection

    2 Assembly and installation 2.6 Electrical Connection WARNING THE DEVICES MUST BE EARTHED. Safe operation of the devices requires that is installed and commissioned by qualified personnel in compliance with the instructions provided in this Manual. In particular, the general and regional installation and safety regulations for work on high voltage systems (e.g.

  • Page 32: Electrical Connection Of Power Unit

    SK 180E Manual for frequency inverters 2.7 Electrical connection of power unit L1 / L L2 / N All connection terminals are located in the connection L3 / - unit of the frequency inverter. Separate terminal bars are provided for the power connections and the control connections, as well as a further terminal bar for the connection of the thermis- tor.

  • Page 33: Mains Supply (L1, L2, L3, Pe)

    2 Assembly and installation 2.7.1 Mains supply (L1, L2, L3, PE) No special safety measures are required on the mains input side of the frequency inverter. It is advisable to use normal mains fuses (see technical data) and a main switch or circuit breaker. 115V devices may only be used with a 110…120V (L/N = L1/L2) single phase supply.

  • Page 34: Brake Resistor Connection (-B, +B) (Only Size 2)

    SK 180E Manual for frequency inverters 2.7.3 Brake resistor connection (-B, +B) (only size 2) The terminals +B/ -B are intended for the connection of a suitable braking resistor (only size 2). The connection should be as short as possible. Connection cross-section: 0.2 ...

  • Page 35: Electrical Connection Of The Control Unit

    2 Assembly and installation 2.8 Electrical connection of the control unit The control connections are located on the inside of the frequency inverter housing. The connections to the terminal bar differ according to the version (SK 180E…190E). Connection terminals: Spring-loaded terminal (X4, X5), slot-head screwdriver, size 2.0 mm PCB terminal with screw connection (X3), size 2.0 mm, 0.5...0.6 Nm Connection cross-section: 0.2 ...

  • Page 36: Control Terminals

    SK 180E Manual for frequency inverters 2.8.1 Control terminals Terminal X3: FI type SK 180E SK 190E Labelling TF-, motor thermistor (PTC) connection TF+, motor thermistor (PTC) connection Terminal X4: FI type SK 180E SK 190E (ASI) Labelling 10V, reference voltage output AIN1, analog input 1 / DIN4, digital input 4 AIN2, analog input 2 / DIN5, digital input 5 12 / 40...

  • Page 37: Control Connection Details

    2 Assembly and installation 2.8.2 Control connection details The frequency inverter generates its own control voltage and provides this to Terminal 43. Terminal/ Function Data Description / wiring suggestion Parameter Designation {Factory setting} VO/24V 24V supply Output 24VDC ±25% Voltage supply provided by the FI for control of the digital inputs GND / 0V Reference potential...
  • Page 38 SK 180E Manual for frequency inverters Terminal/ Function Data Description / wiring suggestion Parameter Designation {Factory setting} SYS H System bus+ Internal FI system bus for Up to four SK 1x0E or communication with optional SK 2xxE can be operated modules and other frequency P509/510 on a single system bus.

  • Page 39: Control Connections, Communication

    2 Assembly and installation 2.8.3 Control connections, communication Terminal/ Function Data Description / wiring suggestion Parameter Designation {Factory setting} all devices, plug connector block RJ12, RS485/RS232 1 RS485 A + Baud rate 9600…38400Baud Data cable RS485 Termination resistor RS485 B - R=120...

  • Page 40: Plug Connectors

    SK 180E Manual for frequency inverters 2.9 Plug connectors The use of optionally available plug connectors for power and control connections not only makes it possible to replace the drive unit with almost no loss of time in case of servicing, but also minimizes the danger of in- stallation errors when connecting the device.
  • Page 41 2 Assembly and installation Assembly Mounting of a plug connector on the housing of the frequency inverter is usually only possible with a con- nection adapter (connection extension SK TIE4-HAN10E). Plug connector* Part. No. Technical data plus SK TIE4-HAN10E (275274100) HAN 10E LA 2BUE 275135010 Add-on housing with 2-clamp lock, socket insert 10-pin.

  • Page 42: Plug Connectors For Control Connection

    SK 180E Manual for frequency inverters 2.9.2 Plug connectors for control connection Various M12 round plug connectors are available as flanged plugs or flanged sockets. The plug connectors are intended for installation in the housing box of the frequency inverter and can be oriented as required. The protection class (IP67) of the plug connector only applies in the screwed state.
  • Page 43 2 Assembly and installation System Description Data components AS Interface A-coded, 5-pin PIN 1 ASi+ (/+24V) (brown) PIN 2 n. c. SK TIE4-M12-ASI PIN 3 ASi- (/GND) (blue) Part. No. 275274502 PIN 4 n. c. PIN 5 n. c. M12 flanged plug Plastic body in yellow to connect an AS interface cable...

  • Page 44: Atex Zone 22 For Frequency Inverters

    SK 180E Manual for frequency inverters 2.10 ATEX Zone 22 for frequency inverters General information With appropriate modification, the frequency inverter can be used in explosion hazard areas. For this it is important that all the safety information in the operating instructions is strictly complied with for the preven- tion of personal injury and material damage.

  • Page 45: Modified Frequency Inverter For Compliance With Category 3D

    2 Assembly and installation 2.10.1 Modified frequency inverter for compliance with Category 3D Operation of the frequency inverter in ATEX Zone 22 is only possible with appropriate modifications. This adaptation is only made at the NORD factory. In order to use frequency inverters in ATEX Zone 22, among other things, the diagnostic caps are replaced with aluminium / glass versions.
  • Page 46 SK 180E Manual for frequency inverters 2.10.2.1 Technology Units for ATEX Zone 22 3D Approved for Not approved for Designation Part Number ATEX Zone 22 3D ATEX Zone 22 3D SK TI4-TU-BUS(-C) 275280000 / (275280500) SK TI4-TU-NET(-C)* 275280100 / (275280600) SK TU4-PBR(-C) 275281100 / (275281150) SK TU4-CAO(-C)
  • Page 47 2 Assembly and installation Wire colors on the Designation Terminal SK CU4-24V* Terminal SK CU4-IOE Terminal SK 1x0E potentiometer +10V reference [11] [11] [11] black AGND / 0V [12] [12] [12] / [40] green Analog input [14] [14] / [16] [14] / [16] 2.10.2.3 Hand-held Technology Units for ATEX Zone 22 3D All hand-held technology units are not approved for continuous use in the ATEX Zone 22 3D.

  • Page 48: Maximum Output Voltage And Torque Reduction

    SK 180E Manual for frequency inverters 2.10.2.5 Other options M12 sockets and plugs for installation in the terminal box of the basic device or in technology units may only be used if they are approved for use in ATEX Zone 22 3D. Approved for Not approved for Designation...

  • Page 49: Commissioning Information

    2 Assembly and installation 2.10.4 Commissioning information For Zone 22 the cable glands must at least comply with protection class IP 55. Unused openings must be closed with blank screw caps suitable for ATEX Zone 22 3D (minimum protection class IP 55). The motors are protected against overheating by means of the frequency inverter.

  • Page 50: Ec Declaration Of Conformity (In Preparation)

    SK 180E Manual for frequency inverters 2.10.5 EC Declaration of Conformity (in preparation) Pre-series version BU 0180 GB-2313...

  • Page 51: Outdoor Installation

    2 Assembly and installation 2.11 Outdoor installation The frequency inverter and the technology units can be installed outdoors under the following conditions:  IP66 version (See Special Measures, Section 1.7)  UV-resistant blank screw caps. and inspection windows. The UV-resistant blind plugs and inspection glasses form part or the ATEX kit for the frequency inverter. I.e.

  • Page 52: Options

    SK 180E Manual for frequency inverters Options The frequency inverter provides a series of optional expansion modules. These modules are preferably used for the direct control or connection of the frequency inverter to a higher level field bus. The options are available both as an internal version for integration (into the FI), the so-called customer unit SK CU4-...

  • Page 53: Overview Of Optional Modules

    3 Options 3.1 Overview of optional modules 3.1.1 Overview of internal customer units SK CU4-… Internal customer interfaces enable the expansion of the range of functions of the frequency inverter without changing its physical size. Either a field bus module, a mains unit or an I/O extension can be selected. The frequency inverter provides one slot for the fitting of an appropriate option.
  • Page 54 SK 180E Manual for frequency inverters With this linkage, all devices can be parameterised by means of a ParameterBox SK PAR-3H or with a PC and the NORD CON software. The bus modules require an external 24V supply, and are therefore also ready for operation if the frequency inverter is not connected to the mains supply.

  • Page 55: Mounting Of Optional Module

    3 Options 3.2 Mounting of optional module 3.2.1 Installation of internal customer units SK CU4-… WARNING Installation must be carried out by qualified personnel only, paying particular attention to safety and warning instructions. Modules must not be inserted or removed unless the device is free of voltage. The slots may only be used for the intended modules.

  • Page 56: Details Of Internal Customer Units Sk Cu4

    SK 180E Manual for frequency inverters 3.3 Details of internal Customer Units SK CU4-… 3.3.1 Potentiometer adapter, SK CU4-POT The digital signals R and L can be directly applied to the corresponding digital inputs 1 and 2 or 3 of the fre- quency inverter.

  • Page 57: Electronic Brake Rectifier, Sk Cu4-Mbr

    3 Options 3.3.2 Electronic brake rectifier, SK CU4-MBR The electronic brake rectifier SK CU4-MBR is used to control electromechanical brakes with a coil voltage of 180V DC and 205V DC (for sizes 5Nm to 40Nm via the frequency inverter or its accessories (SK xU4-IOE). Monitoring of the current in the brake coil is integrated into the SK CU4-MBR module.
  • Page 58 SK 180E Manual for frequency inverters Control connection details Terminal/ Function Data Description / wiring suggestion Parameter Designation 24V supply 24VDC ±25% Supply voltage connection for the 50 … 500mA (according module 40 GND /0V to load on the digital Reference potential output) Digital input...

  • Page 59: Setpoint Converter, Sk Cu4-Rel

    3 Options 3.3.3 Setpoint converter, SK CU4-REL The analog inputs of SK 1x0 E series frequency inverters and the optional mains units SK xU4-24V can only process unipolar setpoint values referenced to GND (0/2 … 10V; 0/4 … 20mA). If a bipolar setpoint (10V … + 10V)) is available, this must be converted to a 0 …...
  • Page 60 SK 180E Manual for frequency inverters Control connection details Terminal/ Function Data Description / wiring suggestion Parameter Designation 24V supply Connection of the supply voltage 24VDC ±25% for the module and the reference 112 AGND / 0V Reference potential 20mA potential of the analog signals for analog signals 111 10V REF...

  • Page 61: Direction Selection Switch And Potentiometer Sk Tie4-Swt And Sk Tie4-Pot

    3 Options 3.3.4 Direction selection switch and potentiometer SK TIE4-SWT and SK TIE4-POT The digital signals R and L of the direction selector switch SK TIE4-SWT (Part No.: 275274701) can be ap- plied directly to the corresponding digital inputs 1 and 2 of the frequency inverter. The potentiometer (0-10V) SK TIE4-POT (Part No.: 275274700) can be evaluated via the analog inputs of the frequency inverter or the I/O extension.

  • Page 62: Details Of External Technology Units Sk Tu4

    SK 180E Manual for frequency inverters 3.4 Details of external Technology Units SK TU4-… The technology units are divided into two different groups. The BUS group contains all the bus modules and the I/O extension. These are connected to the SK 1x0E via the system bus. The second group includes other technology units, e.g.
  • Page 63 3 Options 3.4.1.1 Connections of the SK TI4-TU-BUS The precise connections of the 36 spring-loaded terminals depend on the Technology Unit used. Details can be found in the relevant documents for the bus system. 3.4.1.2 Connections of the SK TI4-TU-MSW Connection of the incoming and outgoing mains cable (incl.

  • Page 64: Maintenance Switch, Sk Tu4-Msw

    SK 180E Manual for frequency inverters 3.4.2 Maintenance switch, SK TU4-MSW-… The maintenance switch can be looped into the mains supply cable of the frequency inverter in order to in- terrupt the voltage supply to a connected frequency inverter. The maintenance switch has a 3-pole design and can therefore be used for 1 - 3 phase AC supply networks up to 480V U •...

  • Page 65: Displays And Control

    4 Display and control Displays and control By the use of various modules for display, control and parameterisation, the frequency inverter can be easily adapted to various requirements. Alphanumeric display and control modules (Section 4.2) can be used for simple commissioning. For more complex tasks, connection to a PC system and the use of NORD CON parameterisation software is available.

  • Page 66: Overview Of External Control Devices

    SK 180E Manual for frequency inverters 4.2 Overview of external control devices All parameters can be easily accessed for reading or editing by means of an optional SimpleBox or ParameterBox. The changed parameter data are stored in the non-volatile EEPROM memory. In addition, up to 5 complete frequency inverter data sets can be saved in the ParameterBox and then recalled.

  • Page 67: Commissioning

    5 Commissioning Commissioning 5.1 Factory settings All frequency inverters supplied by Getriebebau NORD are pre-programmed with the default setting for standard applications with 4-pole standard motors (same voltage and power). For use with motors with oth- er powers or number of poles, the data from the rating plate of the motor must be input into the parameters P201...P207 under the menu item >Motor data<.

  • Page 68: Connection

    SK 180E Manual for frequency inverters NOTE For commissioning standard applications, a limited number of the frequency inverter inputs and outputs (physical and I/O bits) have predefined functions. These settings may need to be changed (Parameters (P420), (P434), (P480), (P481)). 5.2.1 Connection After mounting the frequency inverter on the motor or the wall mounting kit, the mains and motor cables...
  • Page 69 5 Commissioning 5.2.2.2 DIP switch configuration of the inverter The analog inputs in the frequency inverter are suitable for current and voltage setpoints. For correct processing of current setpoints (0-20mA / 4-20mA) the relevant DIP switch (S1) must be set for current signals ("ON").

  • Page 70: Commissioning Examples

    SK 180E Manual for frequency inverters 5.2.3 Commissioning examples All devices can be operated in the condition in which they are delivered. The standard motor data of a 4-pole IE1 standard asynchronous motor of the same power are parameterised. The PTC input must be bypassed, if a motor with PTC is not available.
  • Page 71 5 Commissioning Motor temperature control (display): P739 [-03] SK CU4-IOE / SK TU4-IOE-… Connection of a KTY-84 to either of the two analog inputs of the relevant option is possible. In the following examples, analog input 2 of the particular optional module is used. SK CU4-IOE SK TU4-IOE (Illustration shows a section of the terminal blocks)

  • Page 72: As Interface (Only Sk 190E)

    SK 180E Manual for frequency inverters 5.4 AS interface (only SK 190E) 5.4.1 The bus system The ActuatorSensor Interface (AS-Interface) is a bus system for the lower field bus level. The transmission principle is a single master system with cyclical polling. A maximum of 31 slaves (or 62 A/B slaves in the extended address region) can be operated on an up to 100m long unshielded two-wire cable in any network structure (tree/line/star).

  • Page 73: Bus Structure And Topology

    5 Commissioning 5.4.3 Bus structure and topology The AS interface network can be set up in any desired form. Linear, star, ring and tree structures are possible. An existing network can be expanded by further slaves at any time. Up to 31 standard slaves (i.e. a maximum of 124 binary sensors and 124 binary actuators) or 62 A/B slaves (i.e.

  • Page 74: Commissioning Of The As Interface

    SK 180E Manual for frequency inverters 5.4.4 Commissioning of the AS Interface Connection Connection of the AS interface cable is made via terminals 85/85 of the terminal block and can optionally be made to an appropriately labelled M12 flange plug contact (yellow) Details of the connection terminals are explained in Section 2.8.2.
  • Page 75 5 Commissioning Procedure for SK 190E:  Ensure power supply of the ASi interface via the yellow ASi cable.  Disconnect the AS-i master during addressing  Set the address ≠ 0  Do not doubly assign addresses Normal hand-held units can be used for the addressing of the frequency inverter. Typical manufacturers are Pepperl+Fuchs (e.g.: VBP-HH1-V3.0-V1) and IFM (E.g.: AC1154).

  • Page 76: Technical Data For As Interface

    SK 180E Manual for frequency inverters 5.4.5 Technical data for AS interface Designation Value 24V, Supply via AS interface connection PWR connection (yellow cable) max. 25mA Slave profile S-7.A I/O-Code ID Code External ID Code 1 / 2 1A – 31A and 1B - 31B Address (condition as delivered: 0A) Pre-series version...

  • Page 77: Parameterisation

    6 Parameterisation Parameterisation The frequency inverter, field bus and I/O -extension modules each have their own logic systems. These can be adapted to customers' requirements by means of changeable parameters. The basic functions of the particular modules are factory-set, so that the units have basic functionalities on delivery. Limited adaptations of individual functions of the relevant devices can be implemented vie DIP switches.

  • Page 78: Frequency Inverter Parameterisation

    SK 180E Manual for frequency inverters If the SimpleBox SK CSX-3H is used, the array level is shown by _ - 0 1 . With the ParameterBox SK PAR- 3H (picture on right) the selection options for the array level appear at the top right of the display. ParameterBox SK PAR-3H SimpleBox SK CSX-3H Setting:...
  • Page 79 6 Parameterisation Parameter list - inverter functions (selection) Factory Parameter Description Settings / functions (selection) setting Start-up time (acceleration ramp) is the P102 time corresponding to the linear [2.00] Note: Values < 0.1 must be avoided Start-up time frequency rise from 0Hz to the set maximum frequency (P105).
  • Page 80 SK 180E Manual for frequency inverters Parameter list - inverter information (selection) Parameter Description Settings / functions (selection) Display of current messages for the actual operating Error group: status of the frequency inverter such as faults, 1 / 2 = Overtemperature of inverter / warnings or the cause of a switch-on block.

  • Page 81: Operating Displays

    6 Parameterisation 6.1.1 Operating displays The abbreviations used are described in Section 9.13 “Abbreviations in this Manual". Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Operating para. disp. P000 (Operating parameter display) 0.01 ... 9999 In the SimpleBox (SK CSX-3H) display, the parameter value online selected in P100 is displayed.

  • Page 82: Basic Parameter (Frequency Inverter)

    SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Display factor P002 (Display factor) 0.01 ... 999.99 The selected operating value in parameter P001 >Select of display< is multiplied with the { 1.00 } scaling factor in P000 and displayed in >Operating parameter display<.
  • Page 83 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Copy P101 (Copy parameter set 0 ... 4 After confirmation with the OK key, a copy of the parameter set selected in P100 >Parameter set< is written to the parameter set dependent on the value selected here { 0 } 0 = Do not copy 1 = Copy actual to P1: copies the active parameter set to parameter set 1...
  • Page 84 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Ramp smoothing P106 (Ramp smoothing) 0 ... 100 % This parameter enables a smoothing of the acceleration and deceleration ramps. This is necessary for applications where gentle, but dynamic speed change is important.
  • Page 85 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Brake reaction time P107 (Brake reaction time) 0 ... 2.50 s Electromagnetic brakes have a physically-dependent delayed reaction time when actuated. This can cause a dropping of the load for lifting applications, as the brake only takes over the load { 0.00 } after a delay.
  • Page 86 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Disconnection mode P108 (Disconnection mode) 0 ... 13 This parameter determines the manner in which the output frequency is reduced after "Blocking" (controller enable ...
  • Page 87 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} DC brake current P109 (DC brake current) 0 ... 250 % Current setting for the functions of DC current braking (P108 = 3) and combined braking (P108 = 5). { 100 } The correct setting value depends on the mechanical load and the required deceleration time.
  • Page 88 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Jog frequency P113 (Jog frequency) -400.0 ... 400.0 Hz When using the SimpleBox or ParameterBox to control the FI, the jog frequency is the initial value following successful enabling.

  • Page 89: Motor Data / Characteristic Curve Parameters

    6 Parameterisation 6.1.3 Motor data / characteristic curve parameters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Motor list P200 (Motor list) 0 ... 51 Adjustment of the motor data from a list for 4-pole IE1 DS standard motors. { 0 } By selecting one of the possible digits and pressing the OK key, all motor parameters (P201…P209) are adjusted to the selected standard power.
  • Page 90 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Nominal motor voltage P204 (Nominal motor voltage) 100 ... 800 V The >Nominal voltage< matches the mains voltage to the motor voltage. In combination with the ...
  • Page 91 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Slip compensation P212 (Slip compensation) 0 ... 150 % The slip compensation increases the output frequency, dependent on load, to keep the asynchronous motor speed approximately constant. { 100 } The factory setting of 100% is optimal when using DC asynchronous motors and correct motor data has been set.
  • Page 92 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Oscillation damping P217 (Oscillation damping) 0 ... 400 % With the oscillation damping, idling current harmonics can be damped. Parameter 217 is a measure of the damping power.
  • Page 93 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} P2xx Control/characteristic curve parameters Output voltage P204 P211 P215 P210 Output frequency P201 P216 Time NOTE: "typical" Settings for the... Current vector control (factory setting) Linear V/f characteristic curve P201 to P209 = Motor data P201 to P209 = Motor data P210 = 100%...

  • Page 94: Control Terminals

    SK 180E Manual for frequency inverters 6.1.4 Control terminals Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} P400 [-01] Fnct. setpoint inputs (Function of setpoint inputs) [-07] 0 ... 36 [-01] = Analog input 1, Function of analog input 1 integrated into the FI { [-01] = 1 } [-02] = Analog input 2, Function of analog input 2 integrated into the FI { [-02] = 0 }...
  • Page 95 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} 16 = Torque precontrol, a function that enables a value for the anticipated torque requirement to be entered in the controller (interference factor switching). This function can be used to improve the load take-up of lifting equipment with separate load detection.
  • Page 96 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} 1 = 0 – 10V: If a setpoint smaller than the programmed adjustment 0% (P402) is present, this may cause a change in the direction of rotation. This allows rotation direction reversal using a simple voltage source and potentiometer.
  • Page 97 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} At the moment of reversal (hysteresis =  P505), the drive stands still when the minimum frequency (P104) is smaller than the absolute minimum frequency (P505). A brake which is controlled by the FI has not been applied in the hysteresis range.
  • Page 98 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} P402 [-01] Adjustment: 0% (Analog input adjustment: 0%) [-06] -50.00 ... 50.00 V [-01] = Analog input 1, Function of analog input 1 integrated into the FI [-02] = Analog input 2, Function of analog input 2 integrated into the FI { all 0.00 } [-03] = Ext.
  • Page 99 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} P400 ... P403 Output Output frequency frequency P105 P105 positive positive P104 P104 Setpoint Setpoint z.B. 0,0 V 2,5 V 5,0 V 10,0 V z.B. 0,0 V 2,5 V 5,0 V 10,0 V...
  • Page 100 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Setpoint process controller P412 (Setpoint value for process controller) -10.0 ... 10.0 V Fixed specification of a setpoint for the process controller that will only occasionally be altered. { 5.0 } Only with P400 = 6 or 7 (PID process controller).
  • Page 101 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Analog functions (max. load: 5mA analog): ... only with SK CU4-IOE or An analog voltage (0 ... +10 Volt) can be taken from the control terminals (max. 5mA). Various SK TU4-IOE functions are available, whereby: 0 Volt analog voltage always corresponds to 0% of the selected value.
  • Page 102 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} P419 Analog output scaling [-01] [-02] (Standardisation of analog output) -500 ... 500 % [-01] = First IOE, AOUT of the first I/O extension (SK xU4-IOE) { all 100 } [-02] = Second IOE, AOUT of the second I/O extension (SK xU4-IOE)
  • Page 103 6 Parameterisation Value Function Description Signal Fixed frequency 3 The frequency from P465 [03] is added to the actual setpoint value. High Fixed frequency 4 The frequency from P465 [04] is added to the actual setpoint value. High If several fixed frequencies are actuated at the same time, then they are added with the correct sign. In addi- tion, the analog setpoint (P400) and possibly the minimum frequency (P104) are added.
  • Page 104 SK 180E Manual for frequency inverters Value Function Description Signal Motorpot. Freq. + In combination with enable R/L the output frequency can be High " continuously varied. To save a current value in P113, both inputs Motor potentiometer frequency +" must be at a High voltage for 0.5s.
  • Page 105 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Quick stop time P426 (Quick stop time) 0 ... 320.00 sec Setting of the stop time for the fast stop function which can be triggered either via a digital input, the bus control, the keyboard or automatically in case of a fault.
  • Page 106 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} P434 Digital output function [-01] [-02] (Digital output function) 0 ... 39 [-01] = Digital output 1, Digital output 1 of the frequency inverter { [-01] = 7 } [-02] = Digital output 2, Digital output 2 of the frequency inverter...
  • Page 107 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} 18 = FI ready: The FI is ready for operation. After being enabled it delivers High an output signal. 19 = ... 29 reserved 30 = Digital-In 1 status* Details for the High use of the...
  • Page 108 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Fixed frequency mode P464 (Fixed frequency mode) 0 ... 1 This parameter determines the form in which fixed frequencies are to be processed. { 0 } 0 = Addition to main setpoint: (Addition of the fixed frequency to the main setpoint) Fixed frequencies and the fixed frequency array are added to each other.
  • Page 109 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} P475 [-01] delay on/off switch (Switch on/off delay) [-05] -30.000... 30,000 sec Adjustable on/off delay for the digital inputs. Use as a switch-on filter or simple process control is possible.
  • Page 110 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} P481 [-01] Funct. BusIO Out Bits (Function Bus I/O Out Bits [-10] 0 ... 39 The bus I/O Out bits are perceived as multi-function relay outputs. They can be set to the same functions (P434).
  • Page 111 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} P483 [-01] Hyst. BusIO Out Bits (Hysteresis of bus I/O Out bits) [-10] 1 … 100 % Difference between switch-on and switch-off point to prevent oscillation of the output signal. { all 10 } [-01] = Bus / AS-i Dig Out1 (Bus IO Out Bit 0 + AS-i 1)

  • Page 112: Extra Functions

    SK 180E Manual for frequency inverters 6.1.5 Extra functions Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Inverter name P501 (Inverter name) A…Z (char) Free input of a designation (name) for the device (max. 20 characters). With this, the frequency inverter can be uniquely identified for setting with NORD CON - software or within a network.
  • Page 113 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Leading func. output P503 (Master function output) For master-slave applications this parameter specifies on which bus system the master trans- 0 ... 3 mits the control word and the master values (P502) for the slave. On the slave, parameters { 0 } (P509), (P510), (P546 ) define the source from which the slave obtains the control word and the master values from the master and how these are to be processed by the slave.
  • Page 114 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Automatic error acknowledgement P506 (Automatic fault acknowledgement) 0 ... 7 In addition to the manual fault acknowledgement, an automatic acknowledgement can also be selected.
  • Page 115 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} USS baud rate P511 (USS baud rate) 0 ... 3 Setting of the transfer rate (transfer speed) via the RS485 interface. All bus participants must have the same baud rate setting. { 3 } 0 = 4800 Baud 2 = 19200 Baud...
  • Page 116 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} P515 [-01] … CAN address (CAN address (system bus)) [-03] 0 ... 255 Setting of the system bus address. { all 32 [-01] = Slave address, Receive address for system bus or { all 20 [-02] = Broadcast slave address, system bus reception address (slave)
  • Page 117 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Flying start circuit P520 (Flying start circuit) 0 ... 4 This function is required to connect the FI to already rotating motors, e.g. in fan drives. Motor frequencies >100Hz cannot be captured.
  • Page 118 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} P525 [-01] Load monitoring max. (Load monitoring maximum value) [-03] 1 ... 400 % / 401 Selection of up to 3 auxiliary values: [-01] = Auxiliary value 1 [-02] = Auxiliary value 2 [-03] = Auxiliary value 3...
  • Page 119 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Load monitoring Delay P528 (Load monitoring Delay) 0.10 ... 320.00 sec Parameter (P528) defines the delay time for which an error message ("E12.5") is suppressed on infringement of the defined monitoring range ((P525) …...
  • Page 120 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} P525 … P529 Load monitoring With the load monitoring, a range can be specified within which the load torque may change depending on the output frequency. There are three auxiliary values for the maximum permissible torque and three auxiliary values for the minimum permissible torque.
  • Page 121 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Factor I t-Motor P533 (Factor I t-Motor) 50 ... 150 % The motor current for the I t motor monitoring P535 can be weighted with the parameter P533. { 100 } Larger factors permit larger currents.
  • Page 122 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Current limit P536 (Current limit) 0.1 ... 2.0 / 2.1 The inverter output current is limited to the set value. If this limit value is reached, the inverter (x nominal FI reduces the actual output frequency.
  • Page 123 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Mode phase sequence P540 (Mode phase sequence) 0 ... 7 For safety reasons this parameter can be used to prevent a rotation direction reversal and therefore the incorrect rotation direction. { 0 } This function does not operate with active position control (P600 ≠...
  • Page 124 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Set relay P541 (set digital output) 000 ... FFF This function provides the opportunity to control the relay and the digital outputs independently (hex) of the frequency inverter status.
  • Page 125 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} P543 [-01] Actual bus value 1 3 (Actual bus value 1 … 3) [-03] 0 ... 24 The return value can be selected for bus actuation in this parameter. NOTE: For further details, please refer to the relevant bus manual or the description for { [-01] = 1 }...
  • Page 126 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Func. bus-set point 1... 3 P546 (Function of bus setpoint 1 ... 3) 0 ... 32 In this parameter, a function is allocated to the output setpoint during bus actuation. { [-01] = 1 } NOTE: For further details, please refer to the relevant bus manual or the description for...
  • Page 127 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} P552 CAN Master cycle [-01] [-02] (CAN Master cycle time)) 0 … 100 ms In this parameter, the cycle time for the system bus master mode and the CAN open encoder is set (see P503/514/515): { all 2 } [01] = CAN Master function, Cycle time for system bus master functions...
  • Page 128 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} Brake resistor power Only relevant P557 for size 2 (Brake resistor power) 0.00 ... 20.00 kW Continuous power (nominal power) of the resistor, to display the actual utilisation in P737. For a correctly calculated value, the correct value must be entered into P556 and P557.

  • Page 129: Information (Frequency Inverter)

    6 Parameterisation 6.1.6 Information (Frequency inverter) Parameter Parameter Setting value / Description / Note Device Supervisor P700 [-01] Actual operating status (Actual operating status) [-03] 0.0 ... 21.4 Display of current messages for the present operating status of the frequency inverter such as faults, warnings or the reason why switch-on is disabled.
  • Page 130 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor DC-Link Voltage previous error P705 [-01] 1...5 [-05] (DC-Link Voltage previous error 1...5) 0 ... 1000 V DC This parameter stores the link voltage that was being delivered at the time the error occurred. The values of the last 5 errors are stored.
  • Page 131 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor P709 [-01] Voltage analog input (Voltage of analog input) [-07] -100.0 ... 100.0 % Displays the measured analog input value. [-01] = Analog input 1, Function of analog input 1 integrated into the FI [-02] = Analog input 2, Function of analog input 2 integrated into the FI [-03] = Ext.
  • Page 132 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor Running time P715 (Enablement time) 0.00 ... ___ h This parameter shows the time for which the FI was enabled and supplied current to the output. Actual frequency P716 (Actual frequency)
  • Page 133 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor Mechanical power P727 (Mechanical power) -99.99 ... 99.99 kW Displays the actual calculated effective power of the motor. Basis for calculation are the motor data P201...P209. Input voltage P728 (Input voltage) 0 ...
  • Page 134 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor Usage rate brake res. P737 (Actual brake resistor usage rate) 0 ... 1000 % This parameter provides information about the actual degree of modulation of the brake chopper or the current utilisation of the braking resistor in generator mode.
  • Page 135 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor P741 [-01] Process data Bus Out (Process data Bus Out) [-10] 0000 ... FFFF This parameter provides information about the actual status word and the actual values that are (hex) transferred via the bus systems.
  • Page 136 SK 180E Manual for frequency inverters Parameter Parameter Setting value / Description / Note Device Supervisor CANopen status P748 (CANopen status (system bus status)) 0000 ... FFFF Shows the status of the system bus. (hex) Bit 0: 24V Bus supply voltage 0 ...
  • Page 137 6 Parameterisation Parameter Parameter Setting value / Description / Note Device Supervisor Overcurrent statistic P750 (Overcurrent statistic) 0 ... 9999 Number of overcurrent messages during the operating period P714. Stat. Overvoltage P751 (Overvoltage statistic) 0 ... 9999 Number of overvoltage messages during the operating period P714. Stat.

  • Page 138: Parameterisation Of I/O - Extension Sk Xu4-Ioe

    SK 180E Manual for frequency inverters 6.2 Parameterisation of I/O - extension SK xU4-IOE-… In order to access the parameters of the I/O extension, the parameterisation tool (ParameterBox, NORD CON) must be connected directly to the device. If the I/O extension is on an active system bus, it can be accessed with the ParameterBox SK PAR-3H or the NORD CON software as well as via another device (e.g.
  • Page 139 7 Status messages Parameter Parameter Setting value / Description / Note Device Supervisor {Factory setting} P161 [-01] Filter time (Filter time) [-09] 0 ... 400.00 ms The analog and digital inputs are read cyclically every 250µs, this results in an input uncertainty of 0.25ms.

  • Page 140: Information (I/O - Extension)

    SK 180E Manual for frequency inverters 6.2.2 Information (I/O - extension) Parameter Parameter Setting value / Description / Note Device Supervisor P170 Present error ... [-01] ... [-02] (Present error) 0 ... 9999 Actual error present. Further details in Section 7 "Operating status messages". …...
  • Page 141 7 Status messages Parameter Parameter Setting value / Description / Note Device Supervisor Module status P173 (Status of the module) Possible displayed values: 0 ... FFFF (hex) Bit 0 = not used Bit 1 = not used Bit 2 = not used Bit 3 = not used Bit 4 = not used Bit 5 = not used...

  • Page 142: Operating Status Messages

    SK 180E Manual for frequency inverters Operating status messages According to the cause, frequency inverters and technology units generate appropriate messages if they deviate from their normal operating status. There is a differentiation between warning and error messages. If the frequency inverter is in the status "Start disabled", the reason for this can also be displayed. Display of the Technology Unit messages is carried out via parameter (P170).

  • Page 143: Simplebox Display

    7 Status messages 7.1 SimpleBox display The SimpleBox displays an error with its number and the prefix "E". In addition, the current fault can be dis- played in array element [-01] of parameter (P700). The last error messages are stored in parameter P701. Further information on inverter status at the time that the error occurs can be found in parameters P702 to P706 / P799.
  • Page 144 SK 180E Manual for frequency inverters Display in the SimpleBox Fault Cause Group Details in Text in the ParameterBox Remedy P700[-01] / P701 t overcurrent limit E003 Rectifier I t limit has triggered, e.g. > 1,5 x I for 60s (Please also note P504) Continuous overload at inverter output Chopper overtemperature I...
  • Page 145 7 Status messages Display in the SimpleBox Fault Cause Group Details in Text in the ParameterBox Remedy P700[-01] / P701 Parameter loss E008 Error in EEPROM data (maximum EEPROM value Software version of the stored data set not compatible with exceeded) the software version of the FI.
  • Page 146 SK 180E Manual for frequency inverters Display in the SimpleBox Fault Cause Group Details in Text in the ParameterBox Remedy P700[-01] / P701 10.0 Bus Timeout E010 Data transfer is faulty. Check P513. (Telegram time-out / Check external bus connection. Bus off 24V int.
  • Page 147 7 Status messages Display in the SimpleBox Fault Cause Group Details in Text in the ParameterBox Remedy P700[-01] / P701 12.0 External watchdog E012 The Watchdog function is selected at a digital input and the impulse at the corresponding digital input is not present for longer than the time set in parameter P460 >Watchdog time<.
  • Page 148 SK 180E Manual for frequency inverters Display in the SimpleBox Fault Cause Group Details in Text in the ParameterBox Remedy P700[-01] / P701 15.0 Reserved E015 E016 16.0 Motor phase error A motor phase is not connected. Check P539 Check motor connection 16.1 Magn.

  • Page 149: Table Of Possible Error Messages In The I/O Extension Module

    7 Status messages 7.2.2 Table of possible error messages in the I/O extension module Fault Cause Error number Text in the ParameterBox Remedy Group Details in P170 1000 EEPROM error EMC interference on the SPI bus E1000 Module faulty 1030 System bus OFF Check connections and supply cables Ensure 24V voltage supply...

  • Page 150: Table Of Possible Warning Messages

    SK 180E Manual for frequency inverters 7.3 Table of possible warning messages Display Warning Cause Group Details in Text in the ParameterBox Remedy P700 [-02] Overtemp. inverter C001 Warning from output stage module (static) “Inverter overtemperature“ Reduce ambient temperature <50°C or <40°C (see also (inverter heat sink) Section 8 Technical data) Check ventilation...
  • Page 151 7 Status messages Display Warning Cause Group Details in Text in the ParameterBox Remedy P700 [-02] Warning: One of the cyclically saved messages such as op- C008 Parameter loss erating hours or enabling time could not be saved success- fully. The warning disappears as soon as saving can be success- fully performed.

  • Page 152: Table Of Possible Reasons For The Operating Status "Switch-On Disabled

    SK 180E Manual for frequency inverters 7.4 Table of possible reasons for the operating status "switch-on disabled" The following table summarises the messages which are generated if the frequency inverter cannot be enabled, although no fault is present. Display Reason: Cause Group Details in...

  • Page 153: Technical Data

    8 Technical data Technical data 8.1 General data for frequency inverter series SK 1x0E Function Specification 0.0 … 400.0Hz Output frequency 3.0 … 16.0kHz, standard setting = 6kHz Pulse frequency Power reduction > 8kHz for 115/230V device, >6kHz for 400V device. Typical overload capacity 150% for 60s, 200% for 3.5s Protection measures against...

  • Page 154: Electrical Data For Frequency Inverter

    SK 180E Manual for frequency inverters 8.2 Electrical data for frequency inverter The following table lists the electrical data for SK1x0E series frequency inverters. The details based on measurement series for the operating modes are for orientation purposes and may deviate in practice. The measurement series were made at the rated speed with 4-pole NORD standard motors The following factors have a particular influence on the determined limiting values: Wall-mounting...

  • Page 155: Electrical Data 1~115V

    8 Technical data 8.2.1 Electrical data 1~115V Size 1 SK 1x0E… Device type: -250-112-O -370-112-O -550-112-O -750-112-O 230V 0.25 kW 0.37 kW 0.55 kW 0.75 kW Nominal motor power (4-pole standard motor) 240V ½ hp ¾ hp 1 hp 1 AC 110 … 120V,  10%, 47 … 63Hz Mains voltage 1~ 115V 1~ rms...

  • Page 156: Electrical Data 1/3~230V

    SK 180E Manual for frequency inverters 8.2.2 Electrical data 1/3~230V Size 1 Size 2 SK 1x0E… Device type: -250-323-B -370-323-B -550-323-B -750-323-B -111-323-B 230V 0.25 kW 0.37 kW 0.55 kW 0.75 kW 1.1 kW Nominal motor power (4-pole standard motor) 240V ½...

  • Page 157: Electrical Data 3~400V

    8 Technical data 8.2.3 Electrical data 3~400V Size 1 SK 1x0E… Device type: -250-340-B -370-340-B -550-340-B -750-340-B -111-340-B 400V 0.25 kW 0.37 KW 0.55 kW 0.75 kW 1.1 kW Nominal motor power (4-pole standard motor) 480V ½ hp ¾ hp 1 hp 1½...
  • Page 158 SK 180E Manual for frequency inverters Size 2 SK 1x0E… Device type: -151-340-B -221-340-B 400V 1.5 kW 2.2 kW Nominal motor power (4-pole standard motor) 480V 2 hp 3 hp 3 AC 380 ... 480V, -20% / +10%, Mains voltage 3~ 400V 47 ...

  • Page 159: Additional Information

    9 Additional Information Additional information 9.1 Setpoint processing in the SK 1x0E BU 0180 GB-2313 Pre-series version...

  • Page 160: Process Controller

    SK 180E Manual for frequency inverters 9.2 Process controller The process controller is a PI controller which can be used to limit the controller output. In addition, the out- put is scaled as a percentage of a master setpoint. This provides the option of controlling any downstream drives with the master setpoint and readjusting using the PI controller.

  • Page 161: Process Controller Parameter Settings

    9 Additional Information 9.2.2 Process controller parameter settings (Example: Setpoint frequency: 50 Hz, control limits: +/- 25%)          Setpointfr     Setpointfr P105 (maximum frequency) [Hz]     ...

  • Page 162: Electromagnetic Compatibility

    SK 180E Manual for frequency inverters 9.3 Electromagnetic compatibility As of July 2007, all electrical equipment which has an intrinsic, independent function and which is sold as an individual unit for end users, must comply with Directive 2004/108/EEC (formerly Directive EEC/89/336). There are three different ways for manufacturers to display compliance with this directive: 1.

  • Page 163: Emc Limit Value Classes

    9 Additional Information 9.4 EMC limit value classes Please note that these limit value classes are only reached if the standard pulse frequency (6kHz) is being used and the length of the shielded motor cable does not exceed the permissible limits. In addition, it is essential to use wiring suitable for EMC.

  • Page 164: Reduced Output Power

    SK 180E Manual for frequency inverters 9.5 Reduced output power The frequency inverter is designed for certain overload situations. For example, 1.5x overcurrent can be used for 60 sec. For approx. 3.5 sec a 2x overcurrent is possible. A reduction of the overload capacity or its time must be taken into account in the following circumstances: Output frequencies <...

  • Page 165: Reduced Overcurrent Due To Time

    9 Additional Information 9.5.2 Reduced overcurrent due to time The possible overload capacity changes depending on the duration of an overload. Several values are cited in this table. If one of these limiting values is reached, the frequency inverter must have sufficient time (with low utilisation or without load) in order to regenerate itself.

  • Page 166: Reduced Overcurrent Due To Output Frequency

    SK 180E Manual for frequency inverters 9.5.3 Reduced overcurrent due to output frequency To protect the power unit at low output frequencies (<4.5Hz) a monitoring system is provided, with which the temperature of the IGBTs (integrated gate bipolar transistor) due to high current is determined. In order to prevent current being taken off above the limit shown in the diagram, a pulse switch-off (P537) with a variable limit is introduced.

  • Page 167: Reduced Output Current Due To Mains Voltage

    9 Additional Information 9.5.4 Reduced output current due to mains voltage The devices are designed with thermal characteristics according to the nominal output currents. Accordingly, for lower mains voltages, higher currents cannot be taken off in order to maintain the stated power constant.

  • Page 168: Operation With Fi Circuit Breakers

    SK 180E Manual for frequency inverters 9.6 Operation with FI circuit breakers With frequency inverters (except 115V devices), leakage currents of up to 16mA are to be expected if the mains filter is active. These are designed for operation with leakage current circuit breakers for the protection of persons.
  • Page 169 9 Additional Information Addressing If several frequency inverters are connected to a system bus, these devices must be assigned with unique addresses. This is preferably implemented via DIP switch S2 of the frequency inverter (Section 5.2.2.2). Frequency inverters Addressing via DIP switch S2 Resulting Node ID DIP2 DIP1...

  • Page 170: Energy Efficiency

    SK 180E Manual for frequency inverters 9.8 Energy Efficiency NORD frequency inverters have a low power consumption and are therefore highly efficient. In addition, with the aid of "Automatic flux optimisation" (Parameter (P219)) the inverter provides a possibility for increasing the overall efficiency of the drive in certain applications (in particular applications with partial load).

  • Page 171: Motor Data - Characteristic Curves

    9 Additional Information 9.9 Motor data - characteristic curves 9.9.1 50Hz characteristic curve ( Variation 1:10) a) 115V / 230V frequency inverter The motor used for 50 Hz operation can be operated 50 Hz characteristic curve (4-pole motor) up to its rated point 50 Hz/230V with the nominal M/Mn torque.
  • Page 172 SK 180E Manual for frequency inverters b) 400V frequency inverter The motor used for 50 Hz operation can be operated up to its rated point 50 Hz/400V with the nominal torque. In spite of this, operation above 50Hz is possible, however the output torque reduces in a non-linear manner (see following diagram).

  • Page 173: 87Hz Characteristic Curve (Only 400V Devices)

    9 Additional Information 9.9.2 87Hz characteristic curve (only 400V devices) ( Variation 01:17:00) The 87 Hz characteristic represents an extension of 87 Hz characteristic curve (4-pole motor) the speed adjustment range with a constant motor M/Mn nominal torque. The following points must be met for realisation: ...

  • Page 174: 100Hz Characteristic Curve (Only 400V Devices)

    SK 180E Manual for frequency inverters 9.9.3 100Hz characteristic curve (only 400V devices) ( Variation 01:20:00) An operating point 100 Hz/400V can be selected Kennlinie 100 Hz (4-poliger Motor) 100 Hz characteristic curve (4-pole motor) for a greater speed adjustment range with up to a M/Mn ratio of 1:20.

  • Page 175: Standardisation Of Setpoint / Target Values

    9 Additional Information 9.10 Standardisation of setpoint / target values The following table contains details for the standardisation of typical setpoint and actual values. These details relate to parameters (P400), (P418), (P543), (P546), (P740) or (P741). Designation Analog signal Bus signal Setpoint values Standardisation Type...

  • Page 176: Definition Of Setpoint And Actual Value Processing (Frequencies)

    SK 180E Manual for frequency inverters 9.11 Definition of setpoint and actual value processing (frequencies) The frequencies used in parameters (P502) and (P543) are processed in various ways according the following table. Control and Setpoint source and Signal processing motor model setpoint selection and ramp (determination of slip)

  • Page 177: Maintenance And Servicing Information

    9 Additional Information 9.12 Maintenance and servicing information 9.12.1 Maintenance Instructions In normal use, frequency inverters are maintenance-free. Please note the "General data" in Section 8.1. Dusty environments If the frequency converter is being used in a dusty environment, the cooling-vane surfaces should be regularly cleaned with compressed air.

  • Page 178: Repair Information

    SK 180E Manual for frequency inverters 9.12.2 Repair information If you contact our technical support, please have the precise device type (rating plate/display), accessories and/or options, the software version used (P707) and the series number (name plate) at hand. Repairs The device must be sent to the following address if it needs repairing: NORD Electronic DRIVESYSTEMS GmbH Tjüchkampstraße 37...

  • Page 179: Abbreviations In This Manual

    9 Additional Information 9.13 Abbreviations in this manual AS interface FI ..Frequency inverter (AS1) AIN ..Analog input ISD ..Field current (Current vector control) AOUT .. Analog output LED ..Light-emitting diode BW ..Brake resistor S ... Supervisor Parameter, P003 DI (DIN) Digital input S1 ..

  • Page 180: Keyword Index

    SK 180E Manual for frequency inverters Keyword index Analog OUT inversion (P163) .. 139 Bus I/O Out Bits ......110 Analog output filter 1 (P418)..100 Bus setpoints ......126 3-Wire-Control......103 Analog output voltage (P710) ... 131 Apparent power (P726) .... 132 Calibration AOUT .....
  • Page 181 10 Key word index Customer interface ..52, 53, 56 EN 61000 ......... 163 Information EN 61800-3 ......163 Frequency inverter ....129 Enable period (P715)....132 Information Database version (P742)..135 Energy Efficiency ...... 170 SK xU4-IOE ......140 DC Brake ........
  • Page 182 SK 180E Manual for frequency inverters Magnetizing......... 92 Mounting of optional module ..55 Parameterisation ....77 Mains connection ......33 Mounting the SK 2xxE ....20 Parameterisation Maintenance ......177 Multiple motors use ....33 I/O - extension ...... 138 Maintenance switch ....
  • Page 183 10 Key word index RJ12 ........... 39 Analog output 1 (P419) ..102 Technology unit ....52, 53, 62 RoHS compliant ......14 Bus I/O In Bits (P482) ... 110 Telegram timeout (P513) ..115 Rotation direction ..... 123 Setpoint / actual values ..175 Terminal cross-section ..

This manual is also suitable for:

Sk 190e series

Table of Contents
