LPTCX401 – 4-CHANNEL DMX DIMMING CONSOLE
1. Introduction & Features
Thank you for buying the LPTCX401 ! Please read the manual carefully before bringing this
device into service. This powerful and versatile device features 4 channels, 4 flash buttons and
a master flash button.
Check carefully for damage caused by transportation. Should there be any, consult your dealer
and don't install this device.
Features : 10-programme chaser with 8 steps per programme, speed is manually controlled or
music-controlled, music control through built-in microphone or external audio input, 4
individually controllable DMX channels, background fader control, 2 extra strobe effects.
2. Safety Instructions

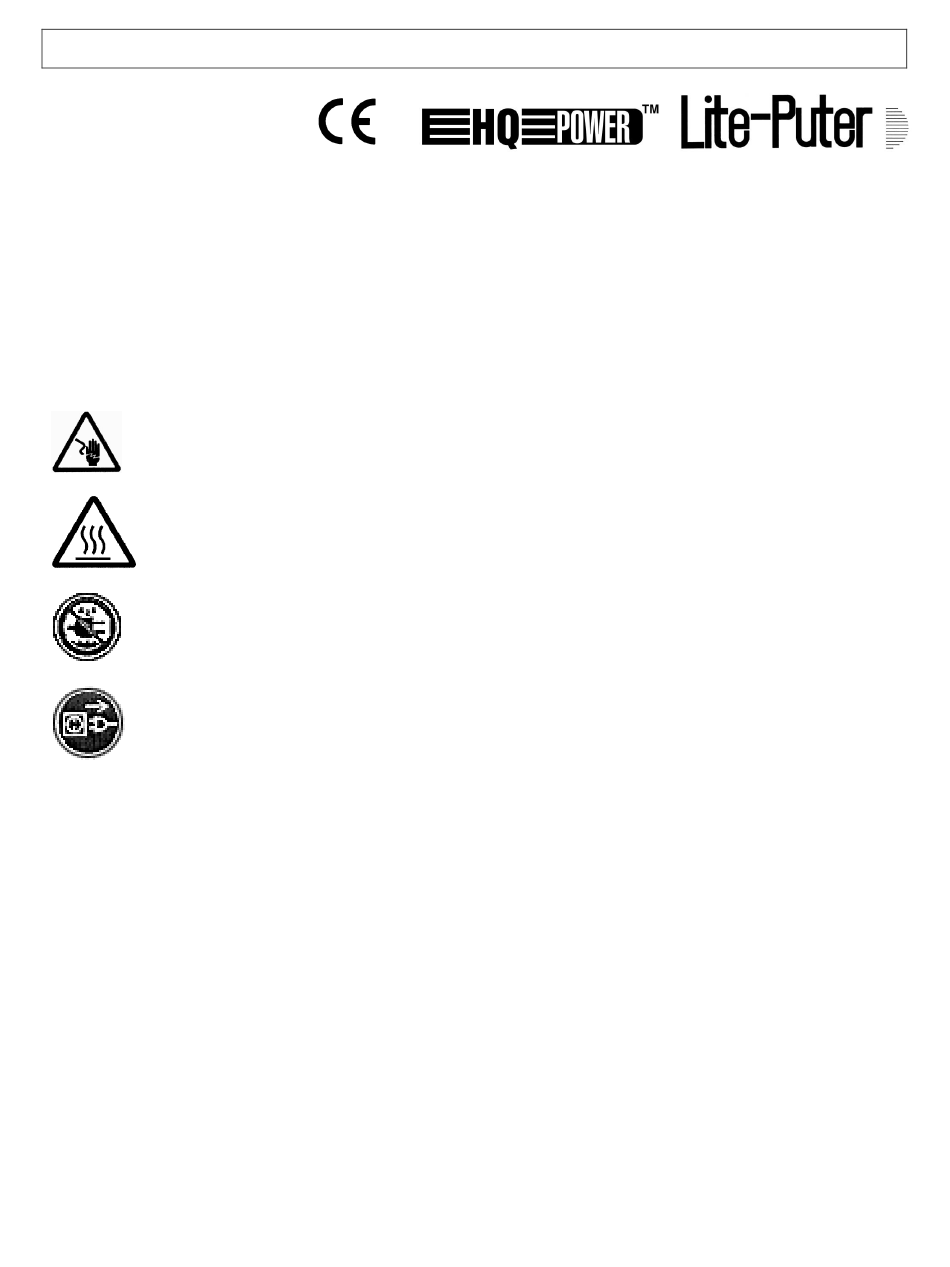

Be very careful during installation : touching live wires
can lead to life-threatening electroshocks.
Do not touch the device during operation : the housing heats up
Keep this device away from rain and moisture
Unplug the mains lead before opening the housing
• A qualified technician should install and service this device.
• Damage caused by disregarding certain guidelines in this manual is not covered by the
warranty and the dealer will not accept responsibility for the ensuing defects or problems.
• Do not switch the device on immediately if it has been exposed to changes in temperature.
Protect the device against damage by leaving it switched off until it has reached room
temperature.
• This device falls under protection class I. It is essential, therefore, that the device be earthed.
A qualified person must carry out the electric connection.
• Make sure that the available voltage does not exceed the voltage stated in the specifications
of this manual.
• Do not crimp the power cord and protect it against damage from sharp edges. Ask an
authorised dealer to replace the cord if necessary.
• Always disconnect the device from the mains when it is not in use or when you wish to clean
it. Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
• Do not look directly into the light source as sensitive people may experience an epileptic
seizure if they do so.
• Note that damage caused by user modifications to the device is not covered by the warranty.
Keep the device away from children and unauthorised users.
LPTCX401
1
GB
Advertisement
Table of Contents
Related Manuals for Velleman HQ Power Lite-Puter LPTCX401
Summary of Contents for Velleman HQ Power Lite-Puter LPTCX401
- Page 1 LPTCX401 – 4-CHANNEL DMX DIMMING CONSOLE 1. Introduction & Features Thank you for buying the LPTCX401 ! Please read the manual carefully before bringing this device into service. This powerful and versatile device features 4 channels, 4 flash buttons and a master flash button.
- Page 2 3. General Guidelines • This device is a lighting controller for professional use on stages, in discos, theatres, etc. This fixture can only be operated with an alternating current of max. 230Vac/50Hz and was designed for indoor use only. • Do not shake the device. Avoid brute force when installing or operating the device. •...
- Page 3 10. STROBE B button : chaser stops when strobe function is activated 11. Master flash button : all channels remain at 100% as long as the button is held 12. Master fader slide adjustment with LED indicator 13. Keyboard with 10 keys : 0 through 9 14.
- Page 4 The master fader controls all outputs at the same time. The chaser speed can be adjusted as follows : Select speed 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E or F with the ▲ and ▼ keys. The selected speed is displayed for ±...
- Page 5 8. Technical Specifications Power Supply AC/DC adapter 15Vdc / 200mA Number of DMX Channels DMX Connections pin 1 = earth, pin 2 = data (-), pin 3 = data (+) Max. Cable Length 100m Music Control through built-in microphone or mono input jack 6.35mm (100mV) Dimensions 240 x 176 x 80mm...
