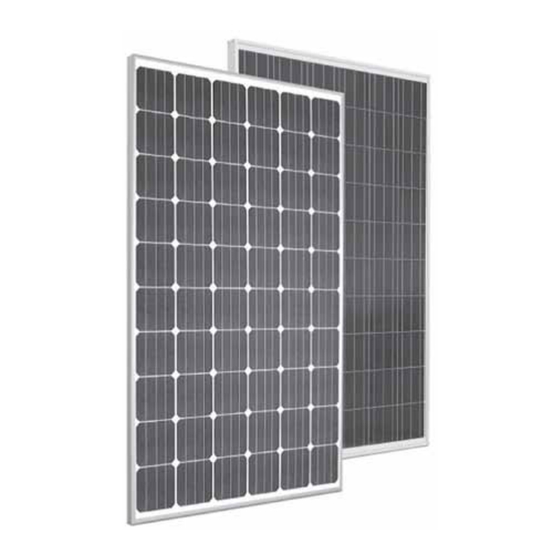

- Page 1 Solar Module Conergy PE - UL Installation Manual...
- Page 2 These solar modules are not intended for use in mobile applications (e.g. vehicles) or marine applications (e.g. boats). Intended use also includes compliance with the specifications stated in this installation manual. Conergy shall not be held liable for damages arising from a failure to observe and follow the installation manual, particularly the safety instructions contained in it, or from any improper use of the product.
-
Page 3: Basic Safety Instructions
| Suitable lifting gear and tools are used for the installation; | If replacements are required, only Conergy components are used and repairs are only carried out by qualified technicians authorized by Conergy, as otherwise the warranty will be voided;... - Page 4 ; size and p position grounding hole; position o of junction box Conergy P PE 245P - 260P 1650 991m .5mm ᴓ 4 175m .2mm 1300...
-
Page 5: Electrical Installation
Conergy PE 295P - 310P: 1956mm 250mm 991mm 800mm 45mm 949mm 489mm 978mm 9*14mm ᴓ 4.2mm 328mm 1300mm The modules have been evaluated by UL for a maximum positive design loading of 5400Pa and a negative design loading of 2400Pa. - Page 6 Risk of electric shock. Risk of fire and injury from electric arc. | Do not disconnect connections under load. | Ensure sufficient protection against contact with live parts. | Only use insulated tools. | Do not insert any electrically conducting parts into the connectors. | Never open the junction box.
- Page 7 (such as s Burndy CL-50 0 or similar) Additiona al Grounding g Methods Conergy ap pproves the us se of UL-467 ap pproved bondin ng and groundi ing devices, inc cluding Burndy y (formerly Wile Electronics...
-
Page 8: Maintenance And Care
4 Maintenance and care The solar modules are low-maintenance modules. However, Conergy recommends that a visual inspection of the mechanical and electrical connections be performed once a year to detect any damage. Dirt on the solar modules reduces the output and the yield. If the solar modules are installed with an inclination angle of more than 15°, they will generally be adequately cleaned by the rain. - Page 9 O U R W O R L D I S F U L L O F E N E R G Y. www.conergy.us | www.conergy.ca...
