Summary of Contents for Conergy PH 245P

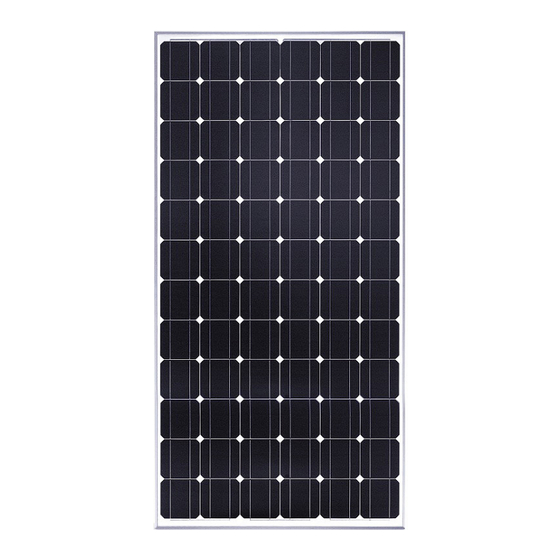

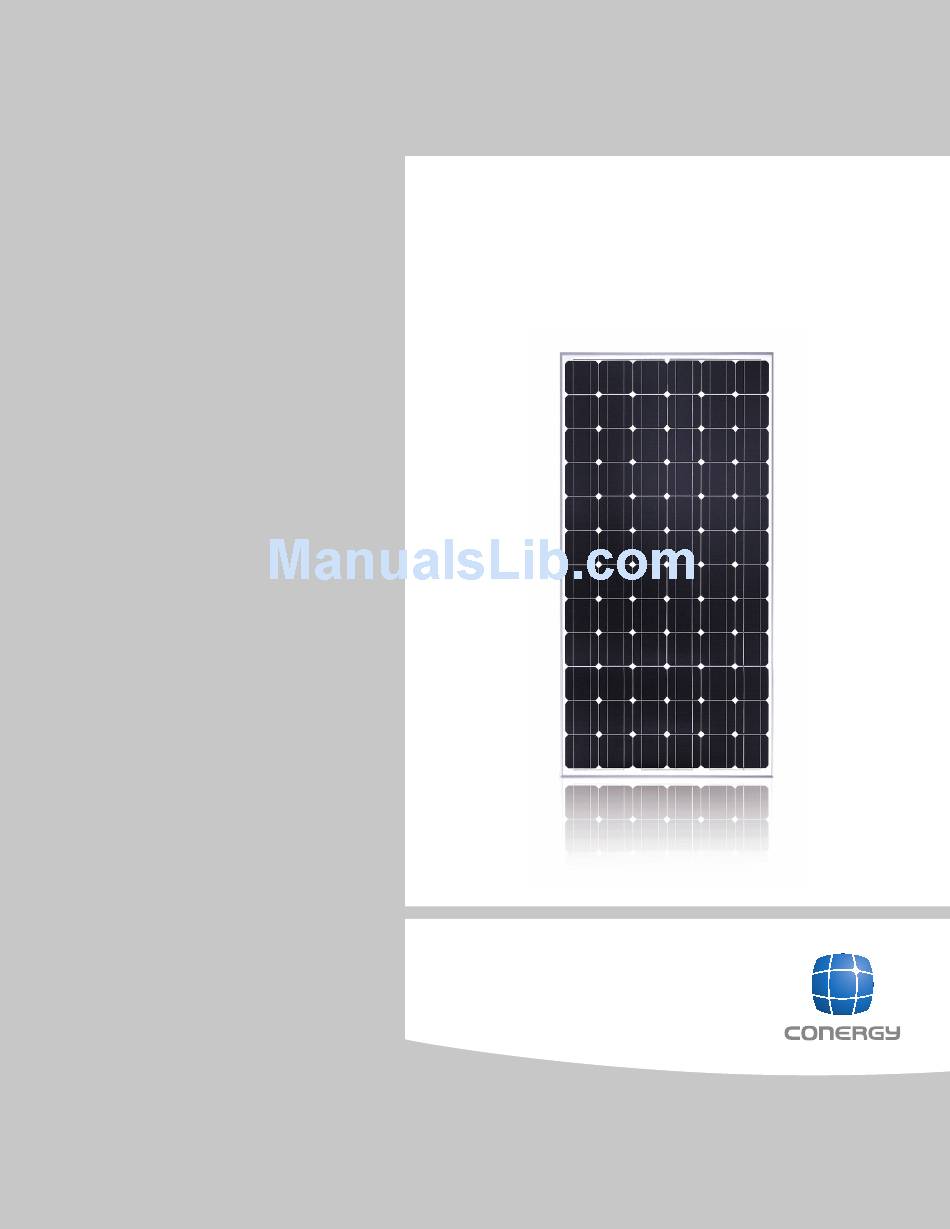

- Page 1 Solar Module | Installation Manual | UL Version Conergy PH 245P - 270P...
- Page 2 Make allowance for the loads that these modules may generate for the entire manual. Conergy shall not be held liable for damages arising from a failure to structure. observe and follow the installation manual, particularly the safety instructions To avoid damage (e.g.
-
Page 3: General Installation Instructions
(NEC) in the US and in accordance with CSA C22.1, Safety Standard for Electrical Installations, Canadian Electrical Code, Part I (CEC) in Canada. Only use mounting systems recommended by Conergy that can withstand the expected loads for snow, wind, etc. The recommended minimum stand- off height is 54 mm. -
Page 4: General Safety Instructions
Clamping on the short side permitted? Yes fuse rating of the solar modules. − Number of clamps to be used in each case on the short sides: 2 − Positioning of the clamps on the short sides: N1+N2+N3+N4 Installation Manual Conergy PH 245-270P... -
Page 5: Maintenance And Care
4. Remove the photovoltaic system in the same way as it was installed; (UL). observe the safety instructions. Disposal Do not dispose of old or defective solar modules with normal house hold waste. Please ask your installer, dealer or Conergy about disposal. Installation Manual Conergy PH 245-270P... - Page 6 These UL-467 approved devices are available together with grounding terminals (for the connection of the mounting system to the earth) from the manufacturer. Observe the applicable regulations. Fig. 3-2: Grounding of the module frame Installation Manual Conergy PH 245-270P...
-
Page 7: Technical Details
Maximum Power Open Circut Short Circut Maximum System Maximum Series Power (P Voltage (V Current (I Voltage (V Current (I Voltage (V) Fuse Rating (A) PH 245P 245Wp 29.92V 8.20A 37.98V 8.62A 1000V PH 250P 250Wp 30.30V 8.27A 38.19V 8.65A... - Page 8 The figures and drawings in these assembly instructions are for illustration only and may differ from reality Conergy reserves the right to make changes to this installation manual without prior notice. O U R W O R L D I S F U L L O F E N E R G Y.
