Processing FPGA
To reduce the number of image processing tasks that the Host CPU must perform,
the Pro Quad CXP-12 has a Processing FPGA. The Processing FPGA on Matrox
*
Rapixo CXP Pro is a highly customizable Xilinx Kintex UltraScale KU035 . The
Processing FPGA can be configured to offload and even accelerate the most
compute-intensive part of typical image processing applications, without
generating additional data traffic within the host computer (Host).
Before the Processing FPGA can process grabbed images, they must be stored in
on-board memory. If images stored in Host memory are required, they can be
streamed directly to the Processing FPGA for processing. Images and other data
resulting from processing can be stored in on-board memory or streamed to the
Host.
The maximum peak bandwidth for images streamed directly to/from Host
memory is 8 Gbyte/sec, as well as for images streamed to/from on-board memory.

Possible processing operations

To use the Processing FPGA, you must configure it with an FPGA configuration
that defines the appropriate functionality. An FPGA configuration is a code
segment that is used to program an FPGA.The following diagram shows the
configurable FPGA components in an FPGA configuration.

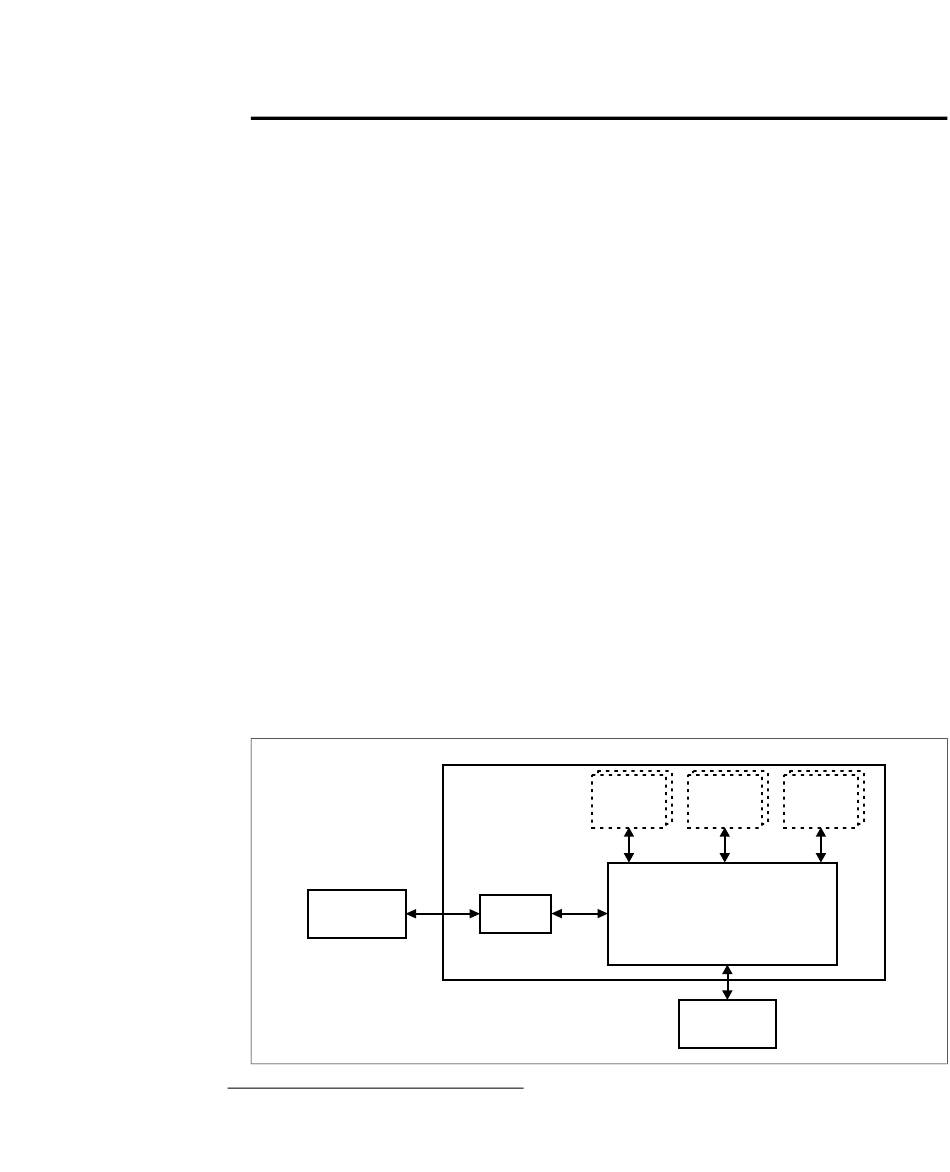

Configurable components of an FPGA configuration
DMA read Stream to
Processing
to stream DMA write
units
On-board
Memory
AXI
DDR4
Controller Interconnect
SDRAM
Host
Interface
*. Other functionality is also implemented through the FPGA, besides customizable
processing, such as the timers and quadrature decoders.
