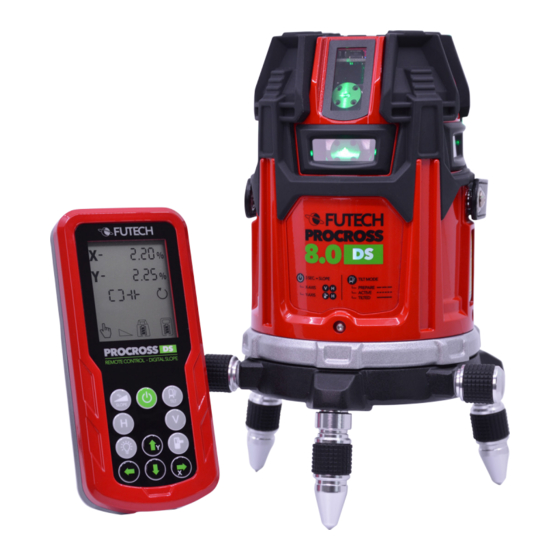

Futech Procross 8.0 DS Overview

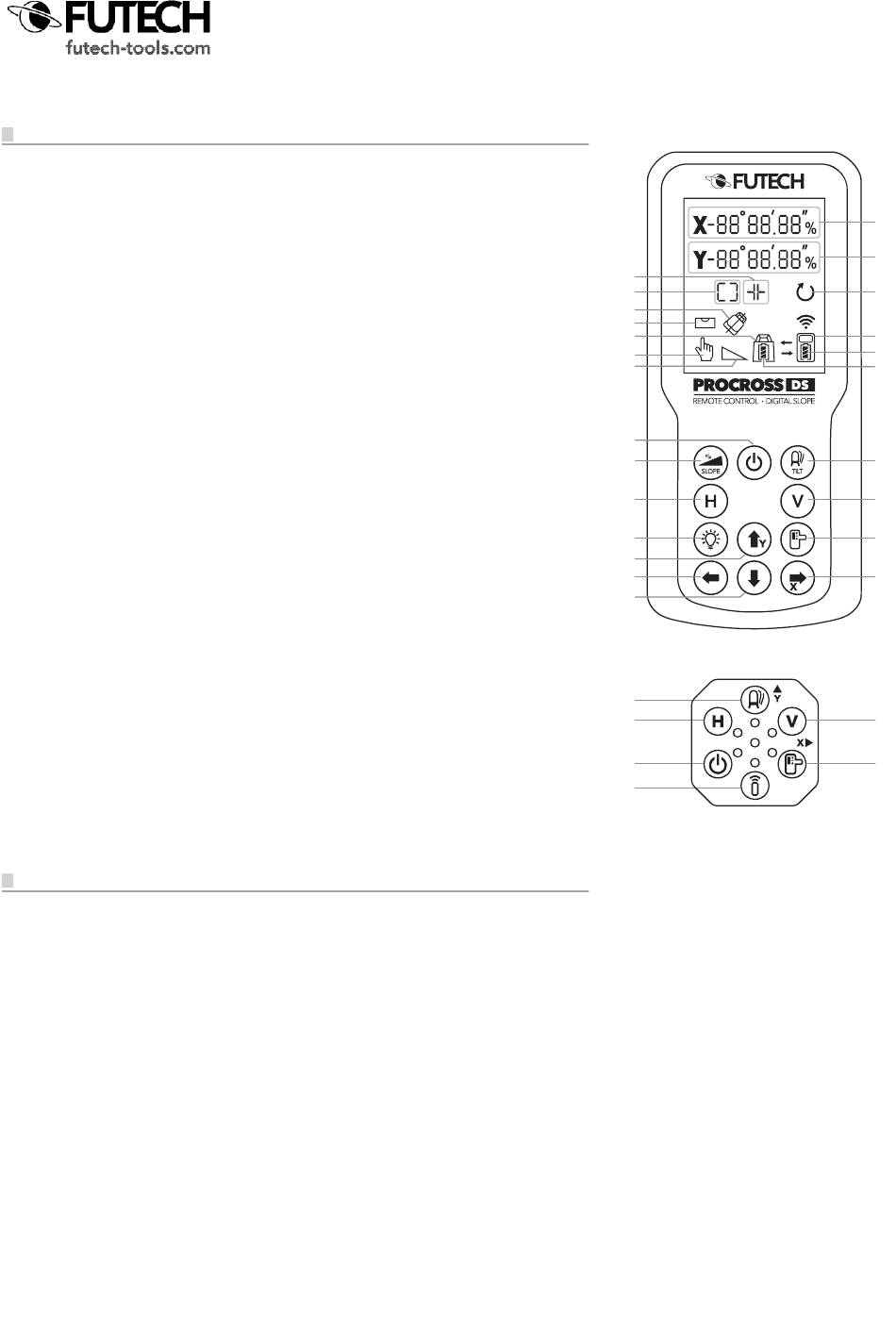

DESCRIPTION

A. Slope percentage X-axis
B. Slope percentage Y-axis
C. Active vertical lines (V1 - V2 - V3 - V4)
D. Active horizontal lines (H1 - H2 - H3 - H4)
E. Outdoor (Receivermode)
F. Tilt indicator symbol
G. Levelling symbol
H. Detection of laser device
I. Manual mode
J. Slope indicator
K. Battery status of remote control
L. Battery status of laser device
M. Remote control symbol
1. Power button
2. Slope button
3. Tilt button
4. Horizontal Lines
5. Vertical Lines
6. LCD Backlight
7. Receiver mode
8. UP button
9. LEFT button
10. RIGHT button
11. DOWN button
12. Remote control button
a. Horizontal LED
b. Power LED
c. TILT LED
d. Level/Slope LED
e. Remote controle LED
f. Vertical LED
g. Receiver mode LED

OPERATION WITHOUT REMOTE CONTROL

This overview only applies to the buttons on the Procross 8.0 DS itself, not the
buttons on the remote control!
· Tilt-Button [3]
(de-)activate the Tilt function
· Horizontal Button [4]
· (de-)activate the horizontal lines of the laserdevice
H1 / H1+H2 / H1+H2+H3+H4 / no horizontal lines
· When slopemodus is activated:
· (Horizontal [a] and Verical [f] LED lights up)
Adjust slope on the X-axis (left/right)
· Vertical Button [5]
· (de-)activate the vertical lines of the laserdevice
V1 / V1+V2 / V1+V2+V3+V4 / no vertical lines
· When slopemodus is activated:
· (Horizontal [a] and Verical [f] LED lights up)
Adjust slope on the X-axis (left/right)
· (Verical [f] and Receiver mode [g] LED lights up)
Adjust slope on the Y-axis (up/down)
