13. ppendix 5. Location of the read channel checkpoints on
11010101101101010100111110
1101110110110011
0111011110
Barracuda F3 3.5" HDD
111101
011
11
1
P
13.1. CB 100466725 REV A (DLAJ-4)

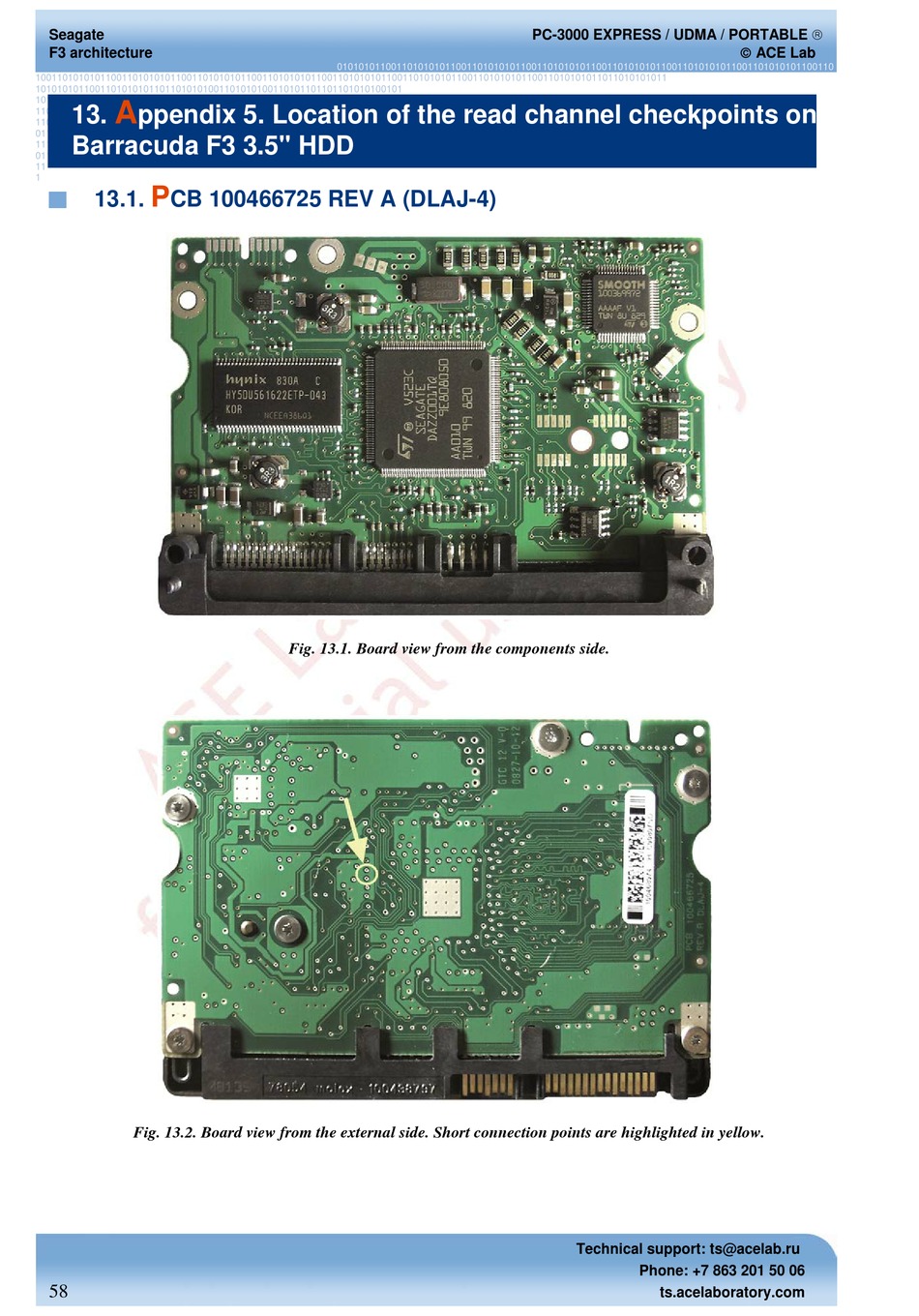

Fig. 13.2. Board view from the external side. Short connection points are highlighted in yellow.
58
01010101100110101010110011010101011001101010101100110101010110011010101011001101010101100110
Fig. 13.1. Board view from the components side.
