11. ppendix 3. Testing the motor winding coils
11010101101101010100111110
1101110110110011
0111011110
111101
011

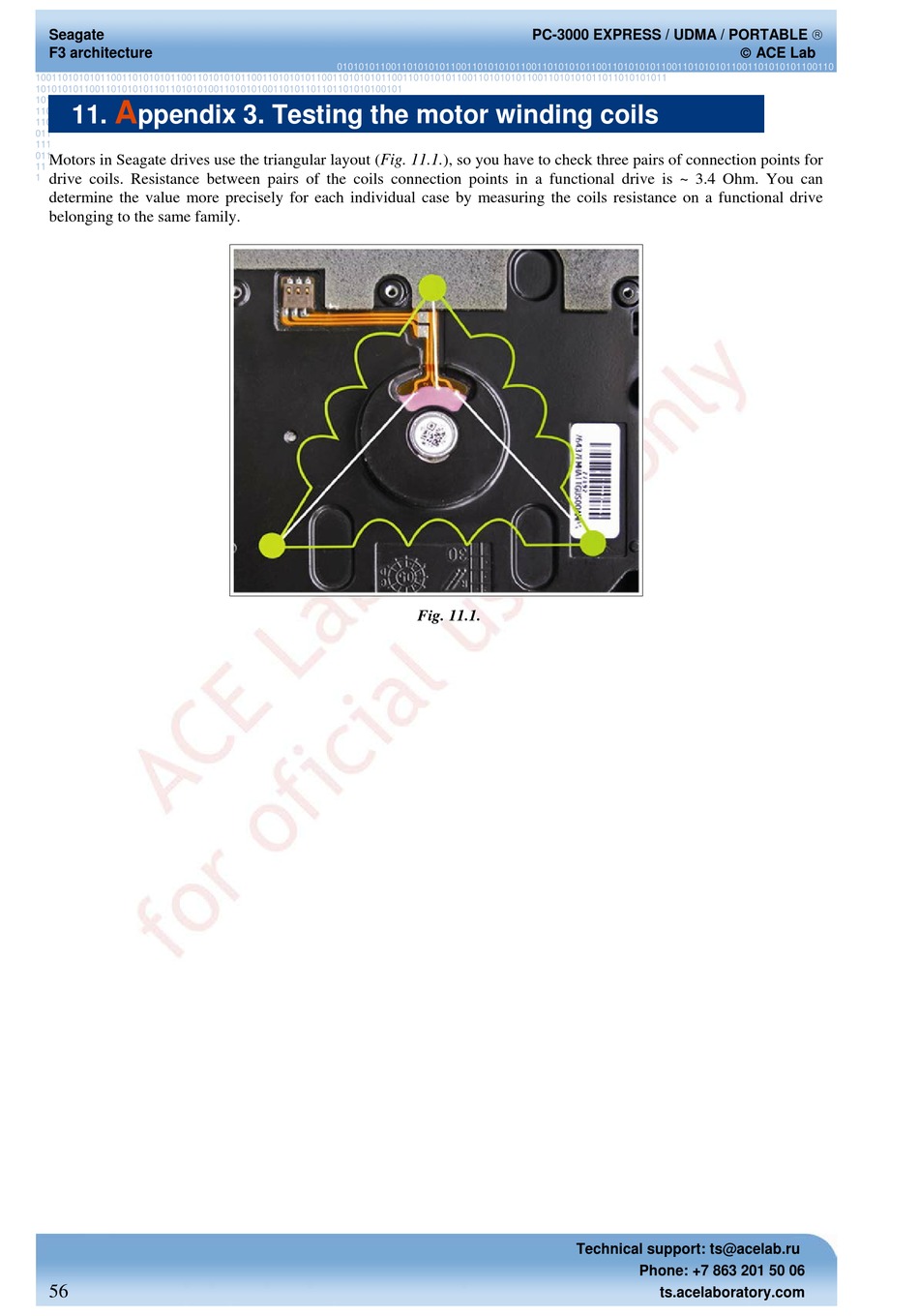

Motors in Seagate drives use the triangular layout (Fig. 11.1.), so you have to check three pairs of connection points for
11
drive coils. Resistance between pairs of the coils connection points in a functional drive is ~ 3.4 Ohm. You can
1
determine the value more precisely for each individual case by measuring the coils resistance on a functional drive
belonging to the same family.
56
01010101100110101010110011010101011001101010101100110101010110011010101011001101010101100110
Fig. 11.1.
