Collecting DT Infos completed
Reading autotuning buffer...............
Searching module table in RAM... .......
Searching volume 3 file table in RAM....
Searching volume 0 file table in RAM....
Searching SMP RAM FID in RAM............
Searching Non Resident G-List FID in RAM
Searching CFW OVL FID in RAM............
Searching DT table(RAM, WR) in RAM......
Searching DT table(RAM, RD) in RAM......
System Files I/O method detection... ATA(direct)

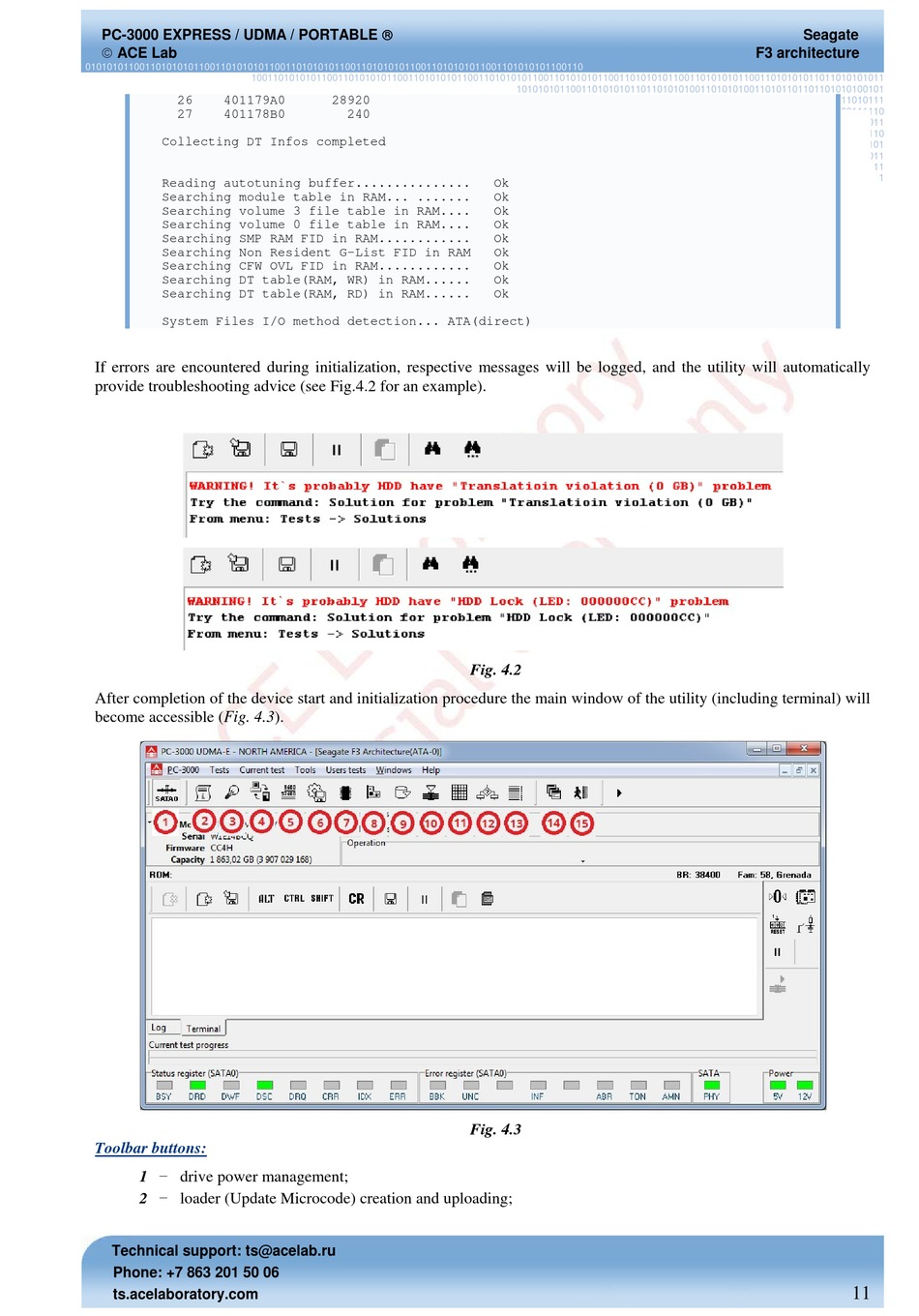

If errors are encountered during initialization, respective messages will be logged, and the utility will automatically
provide troubleshooting advice (see Fig.4.2 for an example).
After completion of the device start and initialization procedure the main window of the utility (including terminal) will
become accessible (Fig. 4.3).
Toolbar buttons:
1 − drive power management;
2 − loader (Update Microcode) creation and uploading;
