9. ppendix 1. Replacement of the controller board
11010101101101010100111110
1101110110110011
0111011110
111101
011
Attention!
ROM of the drives (ROM label is 25FW406A) contains adaptive information. Therefore, during
11
replacement of the controller board you have to move the ROM data from the damaged board to the donor one
1
(resolder the ROM chip from the damaged board to the borrowed one). See Fig. 9.1.
Please keep in mind that if you need to restore a drive using a non-native controller board, the drive at the start will be
unable to access the firmware data on disk surface. That behaviour can be erroneously recognized as a problem with the
heads or reading channel, so please check carefully to ensure that the controller board matches the HDA. To do that,
you can even use a board disconnected from HDA, which returns HDD ID information via the ATA interface anyway.
Having read HDD ID, you can compare the model and its serial number to the information printed on HDA label
Attention!
Please keep in mind that if a non-native controller board is used, then any operation involving recording to
disk surface may cause irreversible corruption of service data resulting in inaccessibility of user data.
1
Unfortunately, as we have mentioned before, in some Barracuda ES.2 drives the FW portion in ROM contains the
same standard data for all HDD making identification a more complex task.
54
01010101100110101010110011010101011001101010101100110101010110011010101011001101010101100110

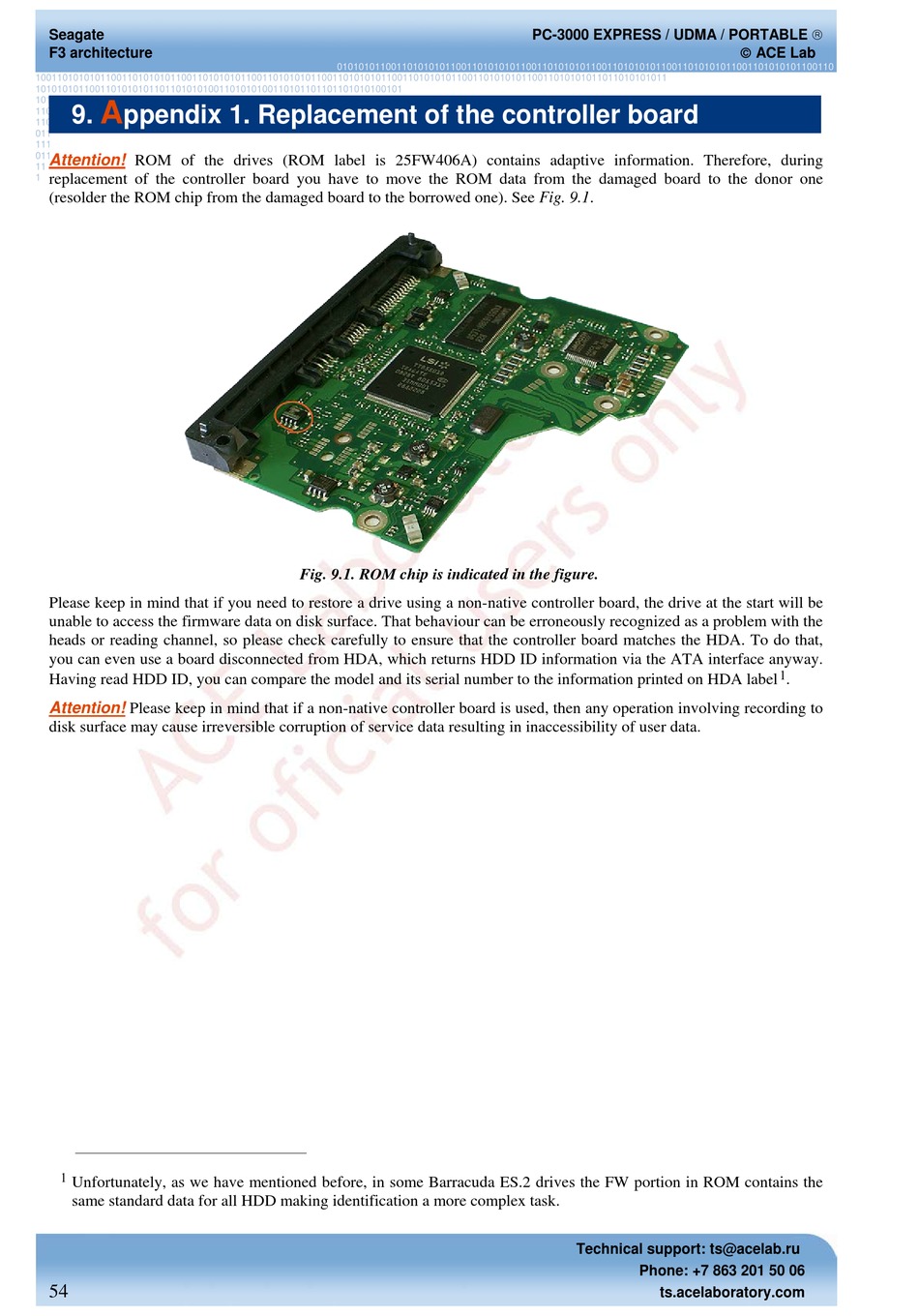

Fig. 9.1. ROM chip is indicated in the figure.
