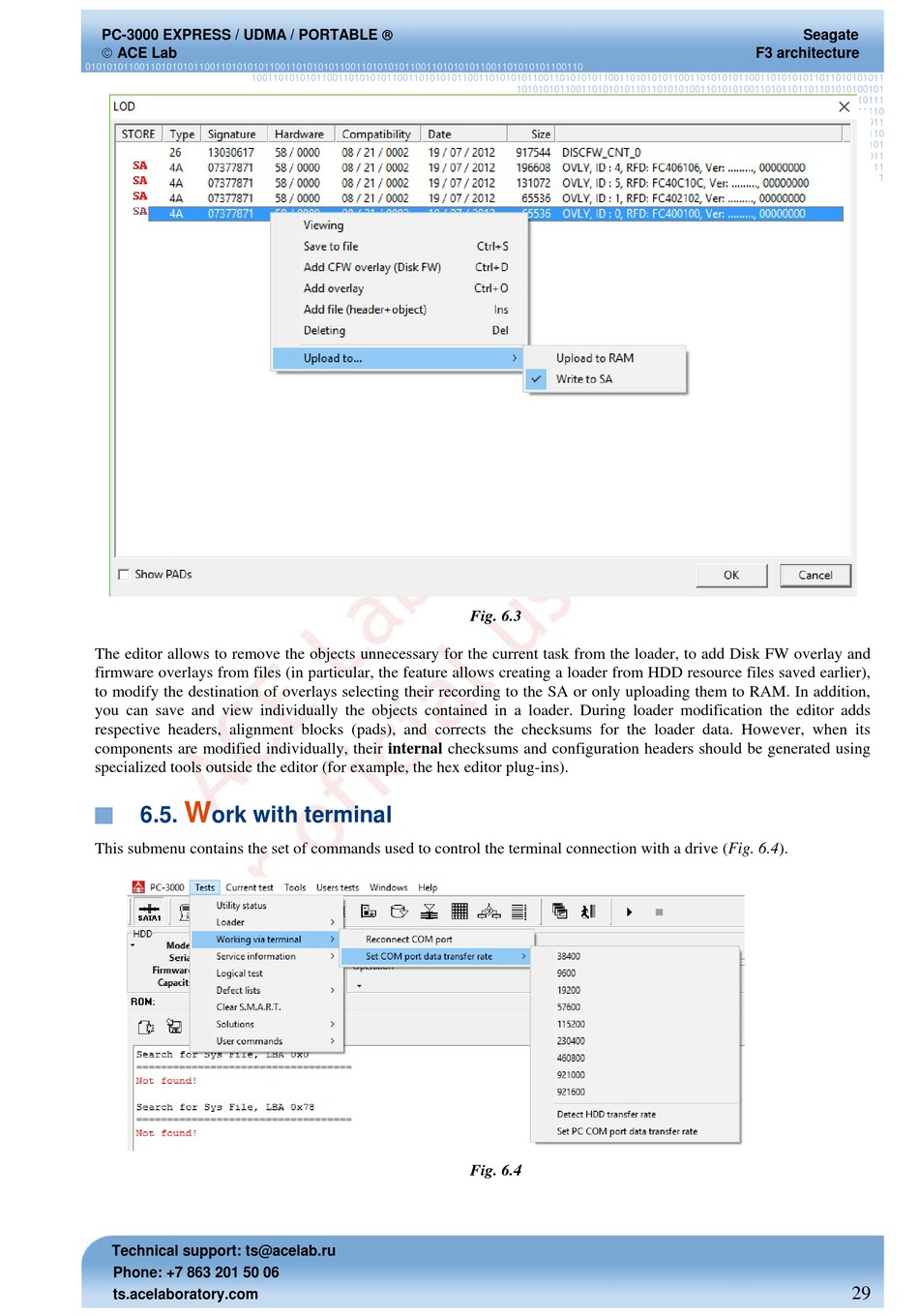

The editor allows to remove the objects unnecessary for the current task from the loader, to add Disk FW overlay and
firmware overlays from files (in particular, the feature allows creating a loader from HDD resource files saved earlier),
to modify the destination of overlays selecting their recording to the SA or only uploading them to RAM. In addition,
you can save and view individually the objects contained in a loader. During loader modification the editor adds
respective headers, alignment blocks (pads), and corrects the checksums for the loader data. However, when its
components are modified individually, their internal checksums and configuration headers should be generated using
specialized tools outside the editor (for example, the hex editor plug-ins).
W
6.5. ork with terminal
This submenu contains the set of commands used to control the terminal connection with a drive (Fig. 6.4).
Technical support: ts@acelab.ru
Phone: +7 863 201 50 06
ts.acelaboratory.com
10101010110011010101011011010101001101010100110101101101101010100101
Fig. 6.3
Fig. 6.4
